Diagnostic Strategies

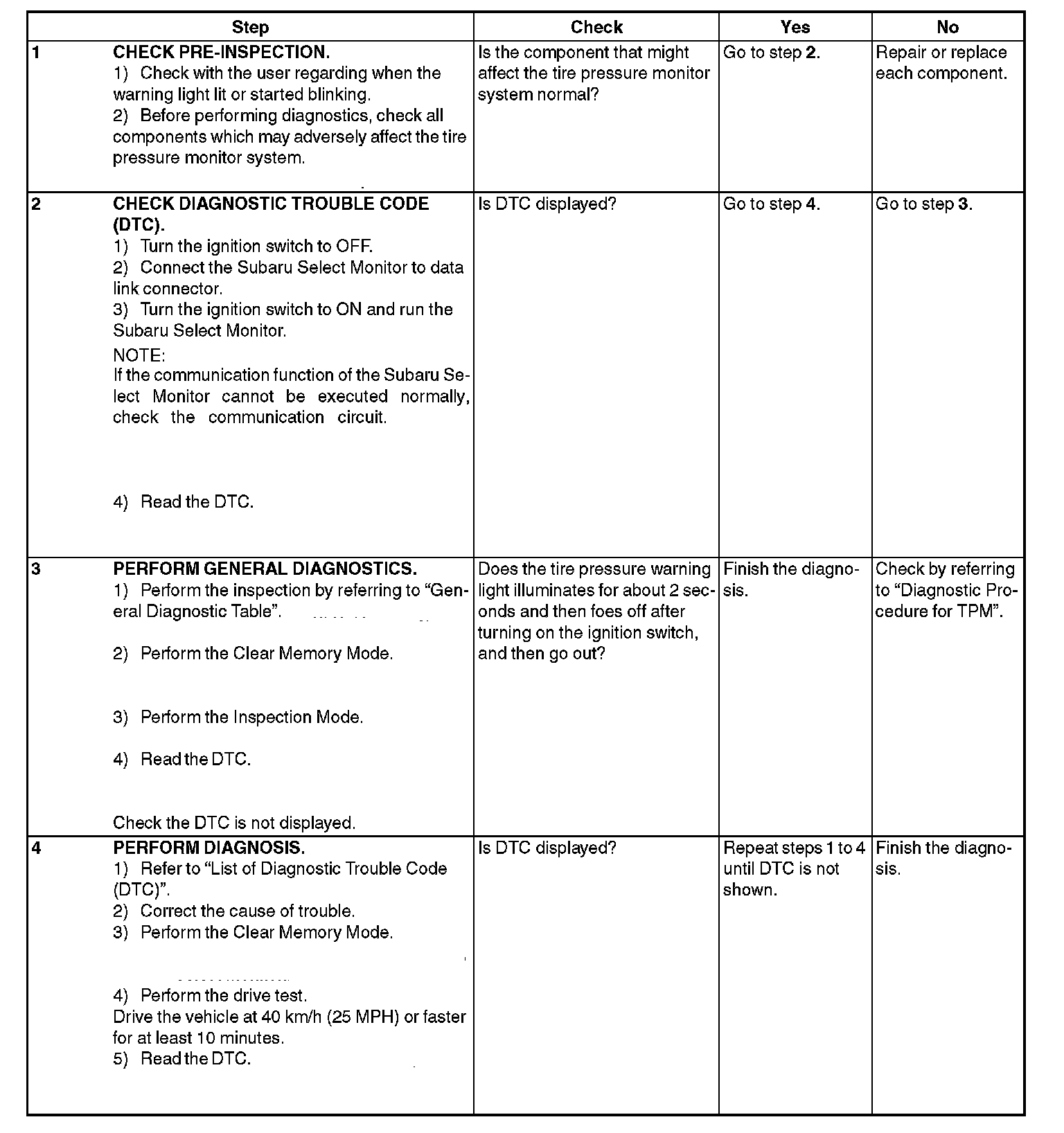

Basic Diagnostic ProcedurePROCEDURE
CAUTION: Remove foreign matter (dust, water, oil etc.) from the tire pressure monitoring control module connector when removing or installing.
NOTE: To check harness for open or short circuits, shake the suspected trouble spot or connector.
