Tire Pressure Warning Light Is 25 Times Blinking and Turn on

TIRE PRESSURE WARNING LIGHT IS 25 TIMES BLINKING AND TURN ON
DETECTING CONDITION:
- Tire pressure monitoring control module is faulty.
- Defective harness
- Transmitter is faulty.
TROUBLE SYMPTOM: Every time the engine starts, tire pressure warning light blinks 25 times and then illuminates.
WIRING DIAGRAM:

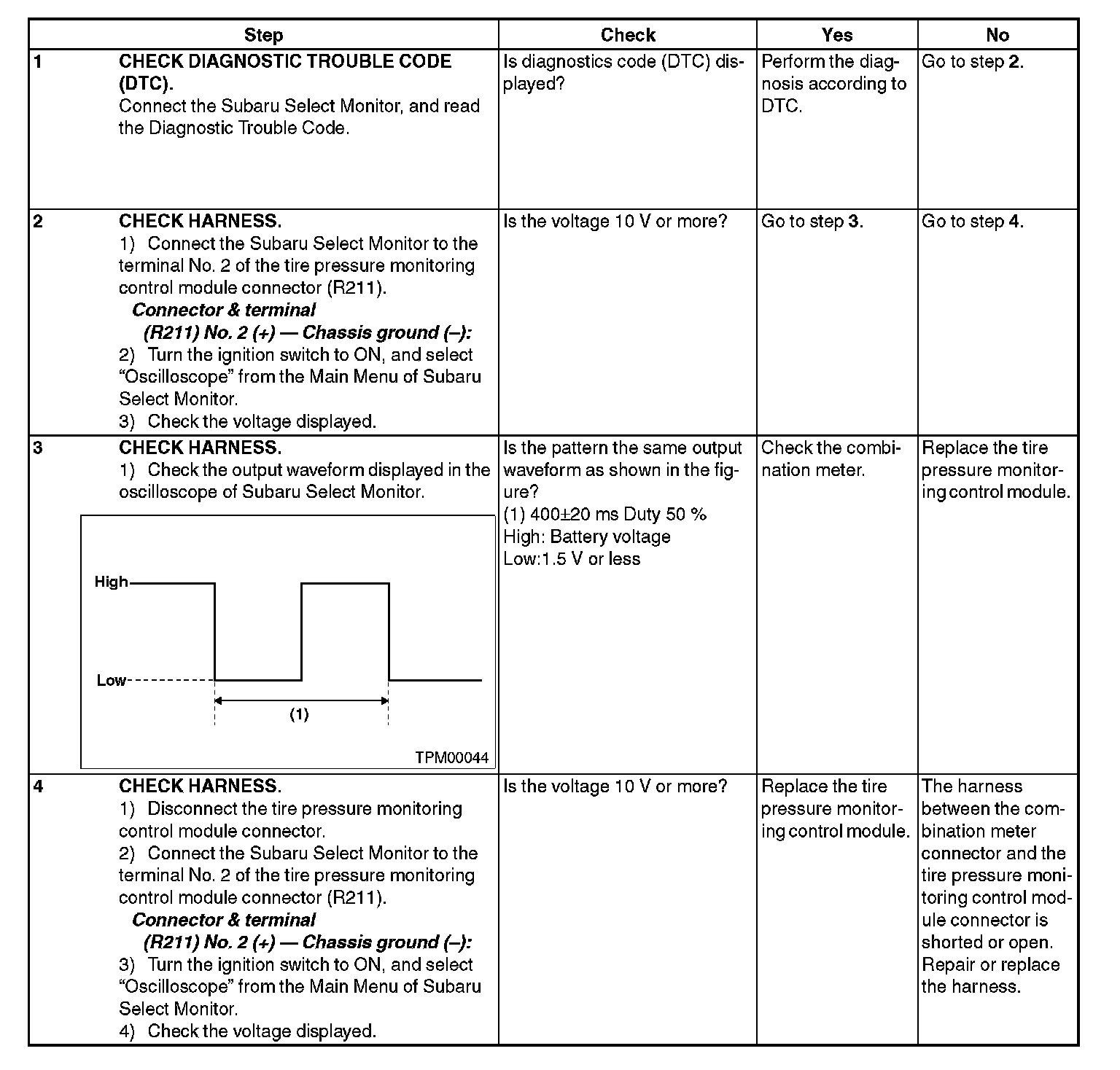

Step 1-Step 4:
