Home >> Subaru >> 2009 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Variable Valve Timing Pressure Switch >> Locations

Variable Valve Timing Pressure Switch: Locations

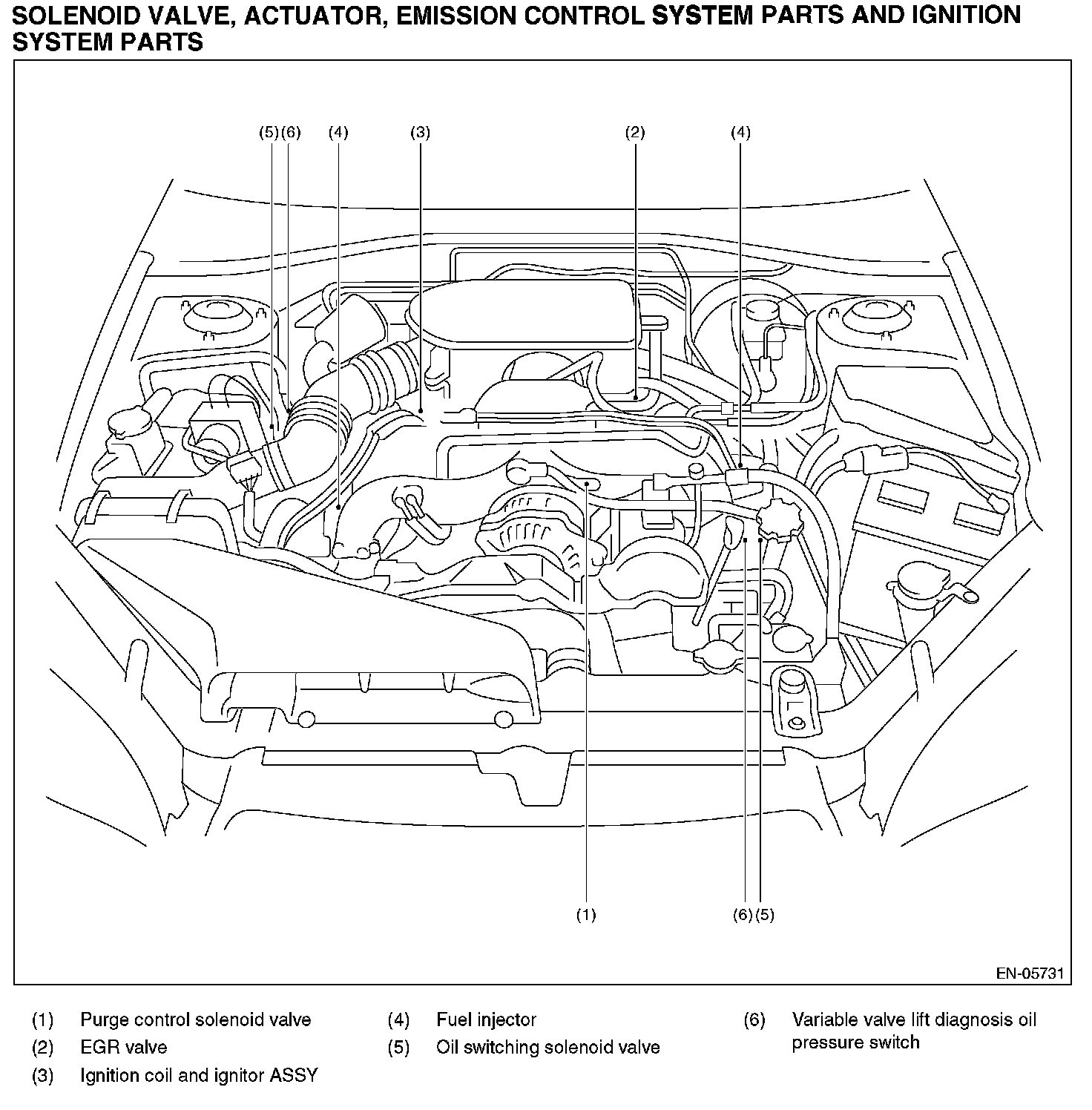

Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 1):

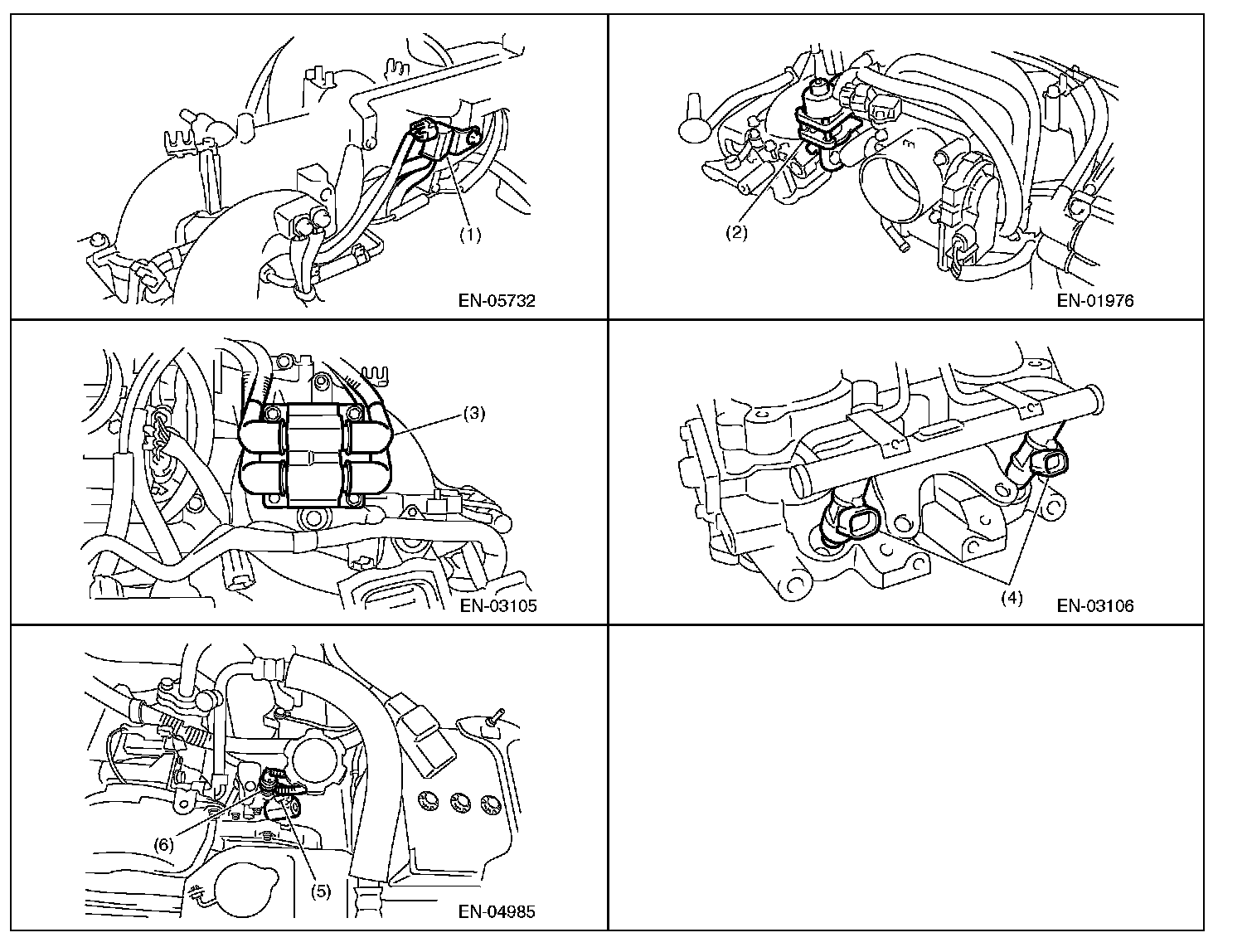

Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 2):
