Home >> Subaru >> 2009 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Evaporative Emissions System

Evaporative Emissions System

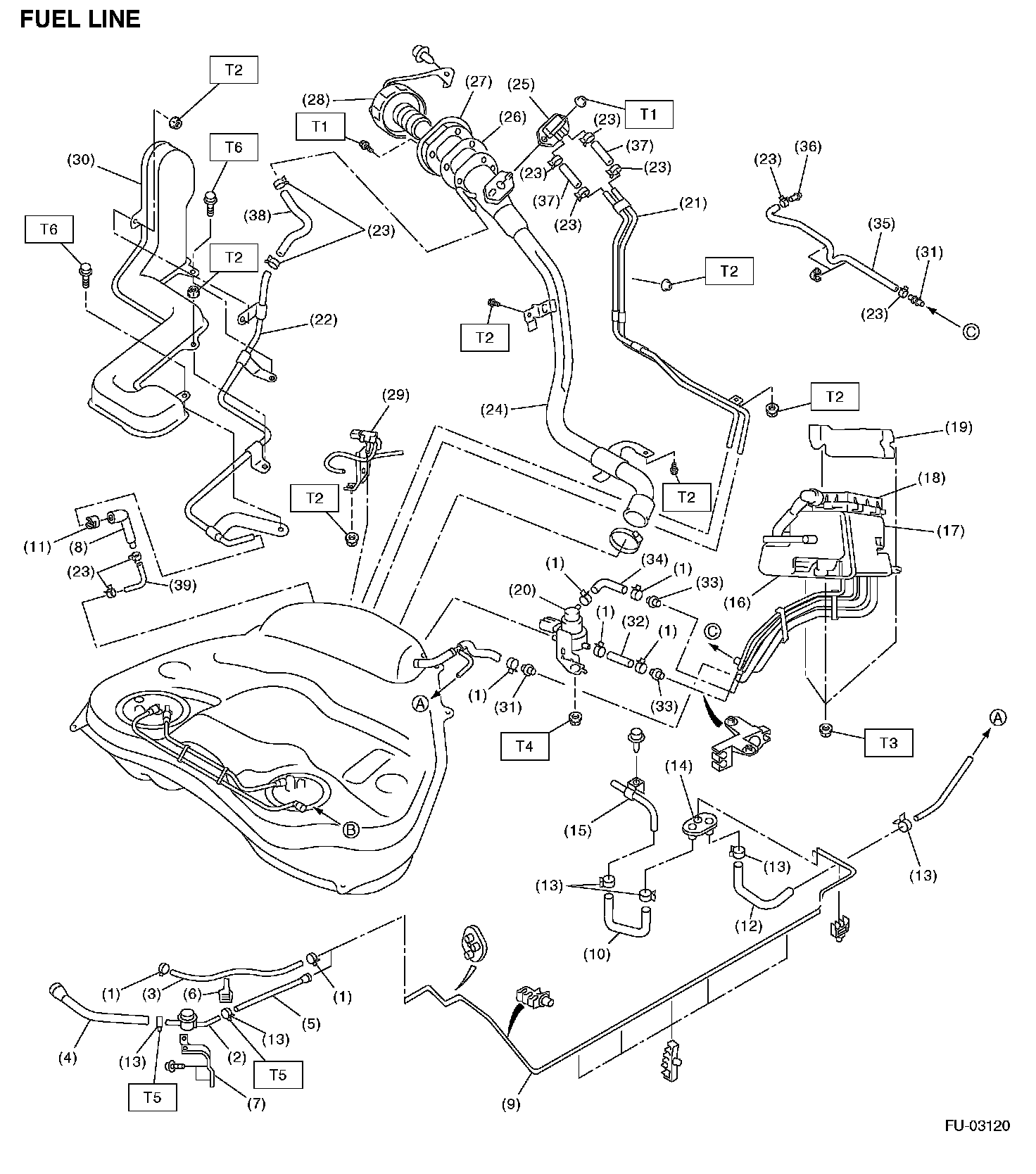

Part 1:

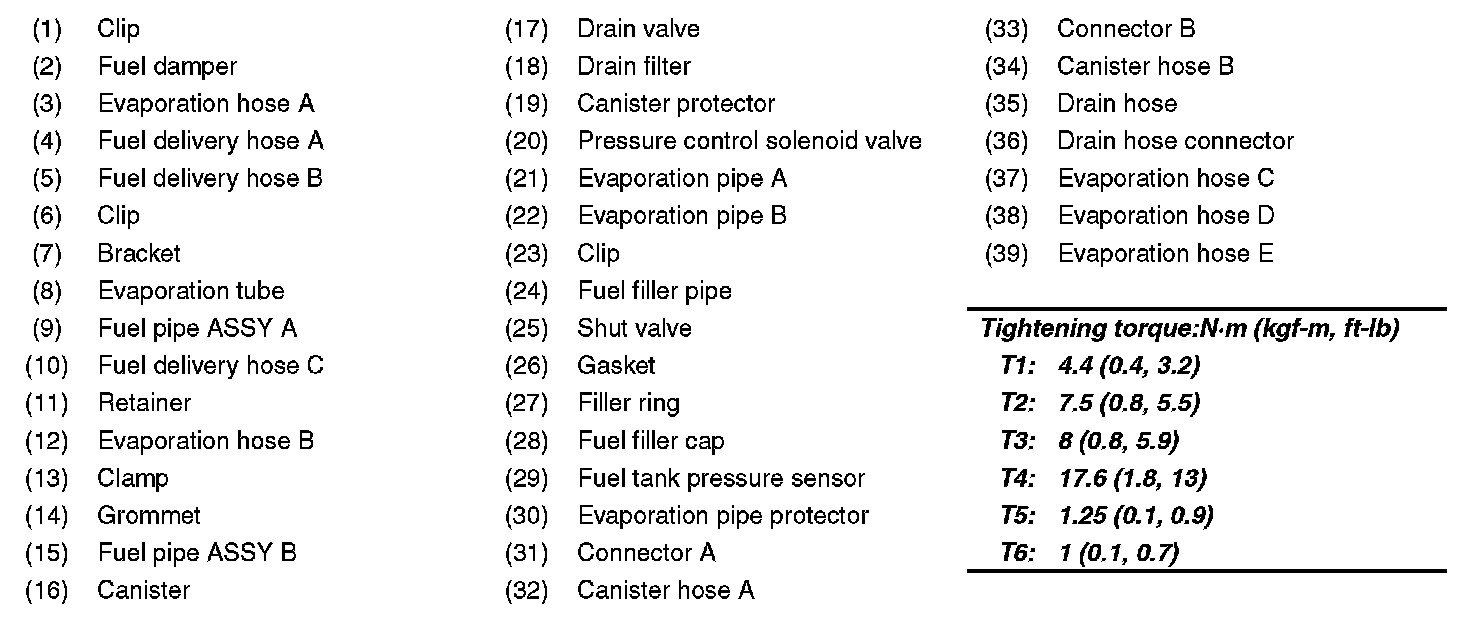

Part 2:
