Home >> Subaru >> 2009 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Sensors and Switches - Accessories and Optional Equipment >> Lock Cylinder Switch >> Locations

Lock Cylinder Switch: Locations

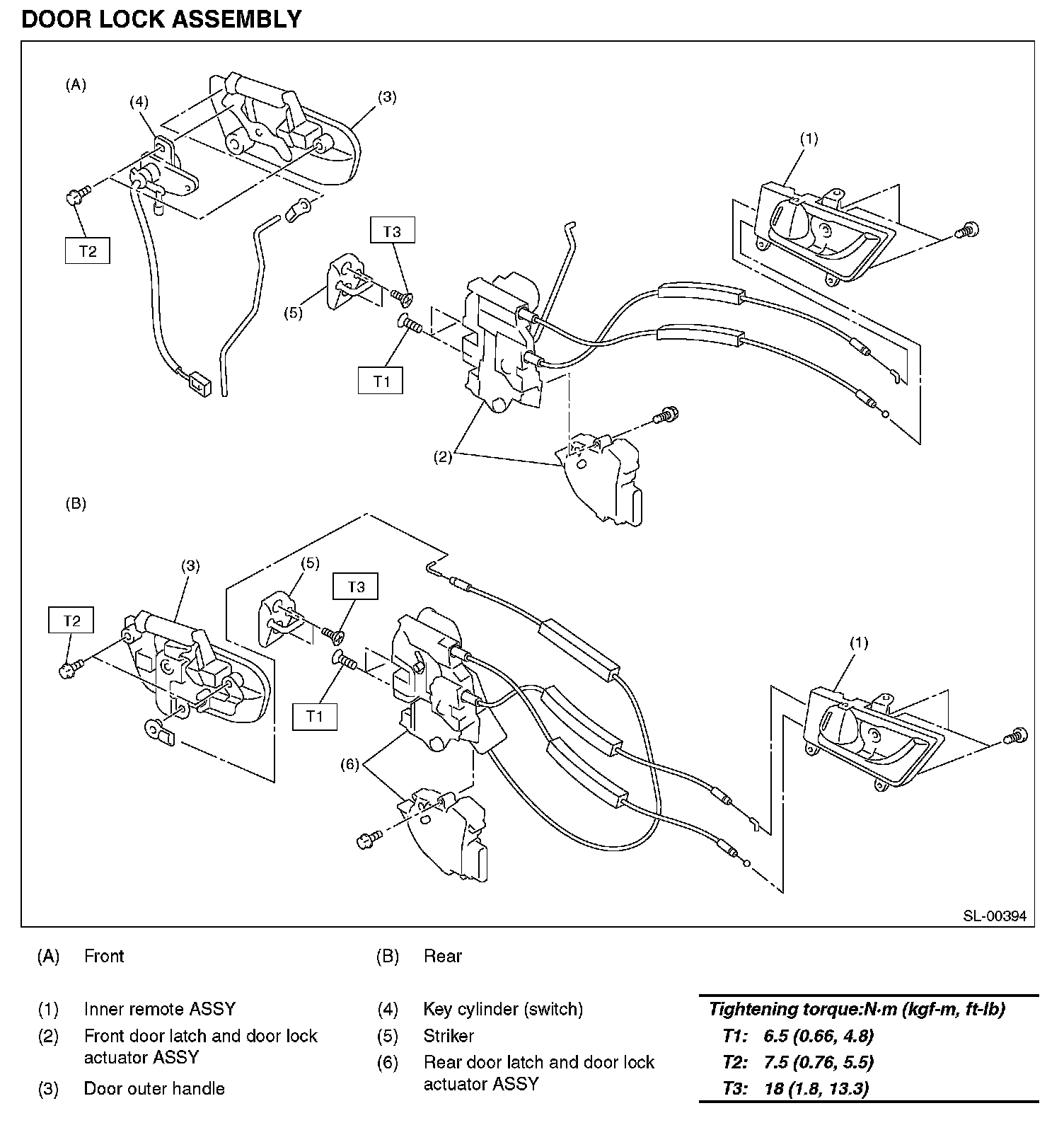

Door Lock Assembly:
