Rear Disc Brake

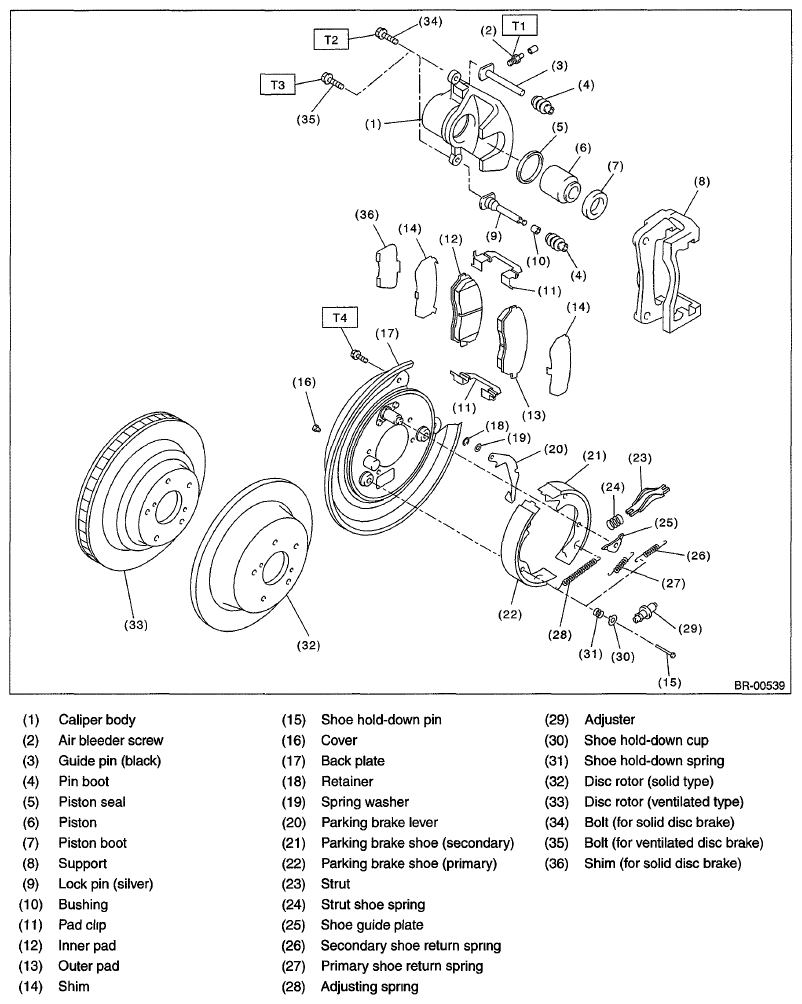

Fig 1: Exploded View Of Rear Disc Brake

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.8)

T2: 27 (2.8, 19.9)

T3: 37 (3.7, 27.2)

T4: 66 (6.7, 48.7)
