Front Disc Brake

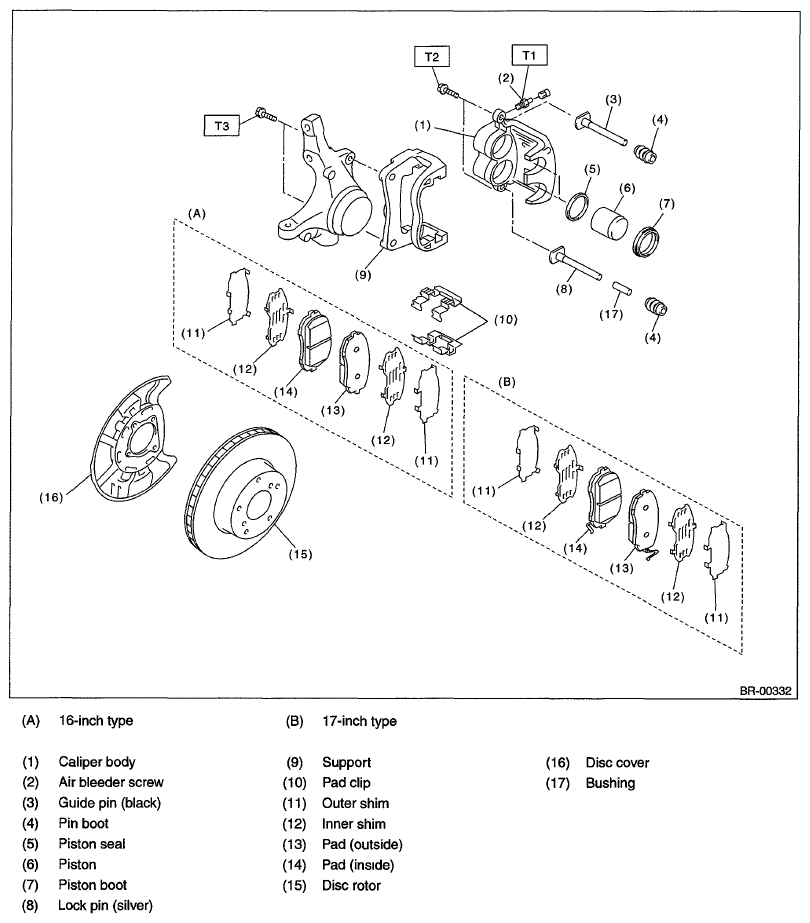

Fig 1: Exploded View Of Front Disc Brake

G06339379

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-, ft-lb)

T1: 8 (0.8, 5.8)

T2: 27 (2.8, 19.9)

T3: 120 (12.2, 88.5)
