Home >> Subaru >> 2009 >> Legacy R Limited >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brake System - Brakes - Mechanical >> Brake Pedal >> Removal >> At Model

At Model

  1. Remove the steering shaft.
  2. Disconnect the connector (stop light switch etc.) from the pedal bracket.
  3. Remove the clevis pin which secures the lever and push rod.
  4. Remove the bolt and nut which secures the pedal bracket.

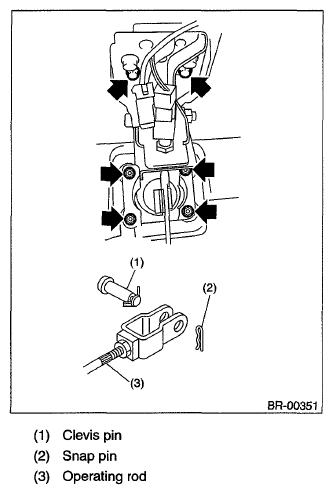

    Fig 1: Locating Bolt, Nut And Pedal Bracket
    G06339466Courtesy of SUBARU OF AMERICA, INC.
