Brake Pedal

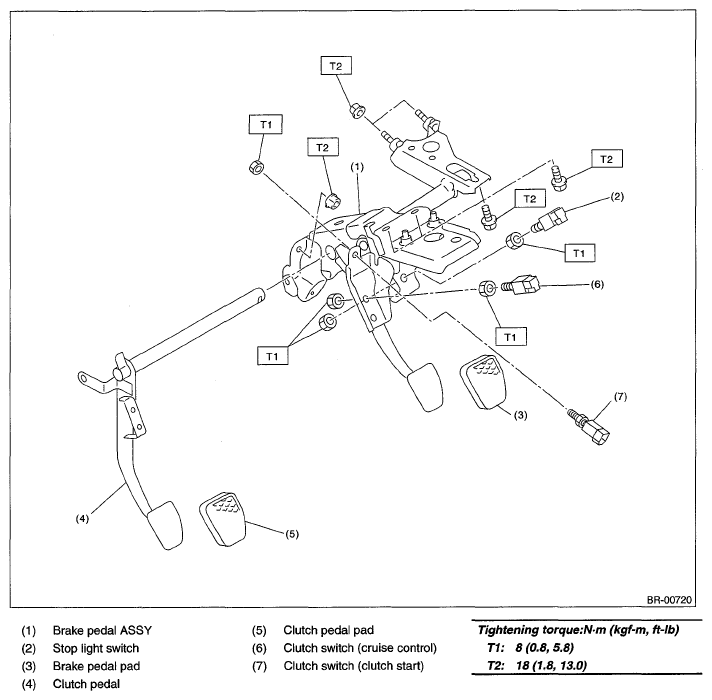

Fig 1: Brake Pedal Component (MT Model) With Torque Specifications
G05957137Courtesy of SUBARU OF AMERICA, INC.

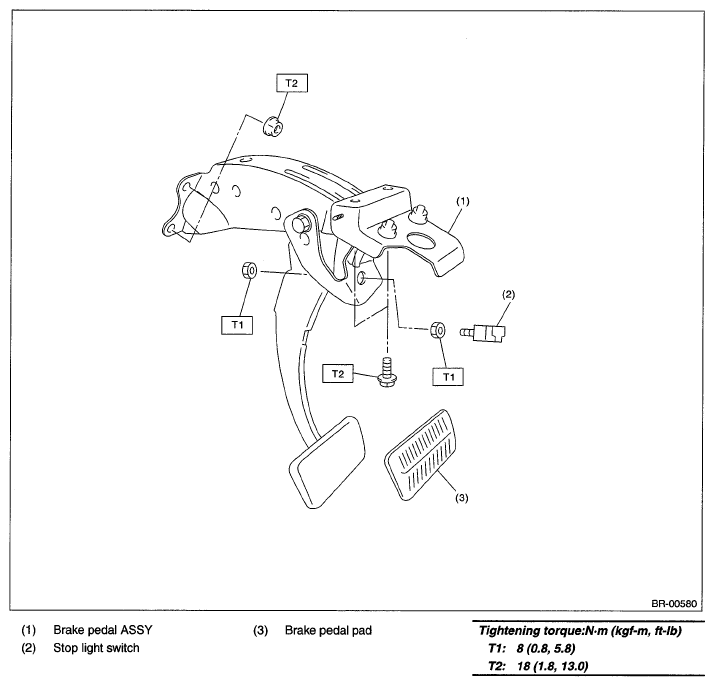

Fig 2: Brake Pedal Component (AT Model) With Torque Specifications
G05957138Courtesy of SUBARU OF AMERICA, INC.
