Rear Disc Brake

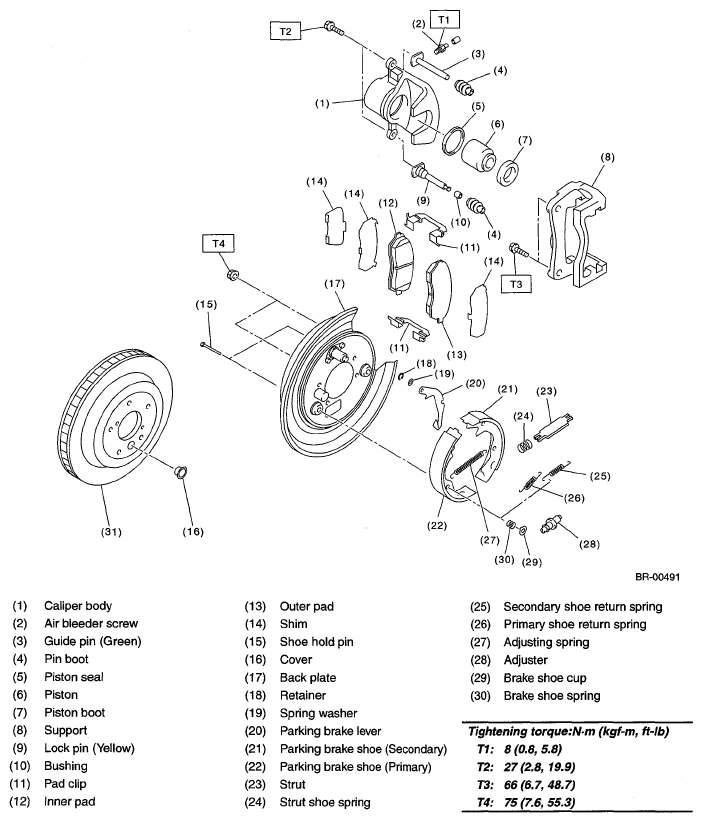

Fig 1: Rear Disk Brake Component With Torque Specification
G05671236Courtesy of SUBARU OF AMERICA, INC.
