Rear Vehicle Speed Sensor

REMOVAL
1) Set the vehicle on a lift.
2) Disconnect the ground cable from the battery.
3) Lift up the vehicle.
4) Disconnect the connector from the rear vehicle speed sensor.

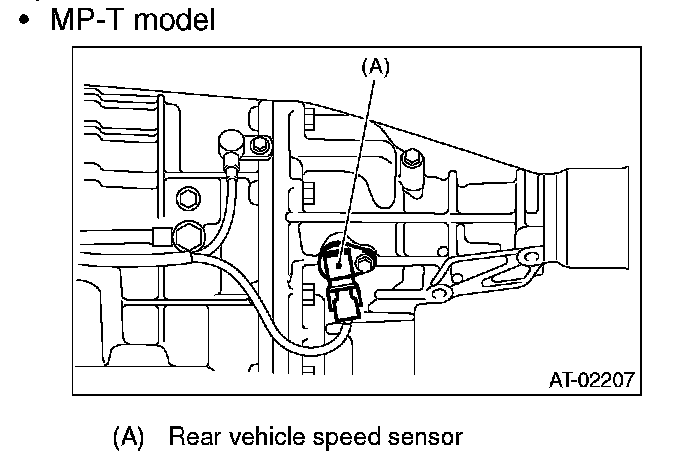

^ MP-T model

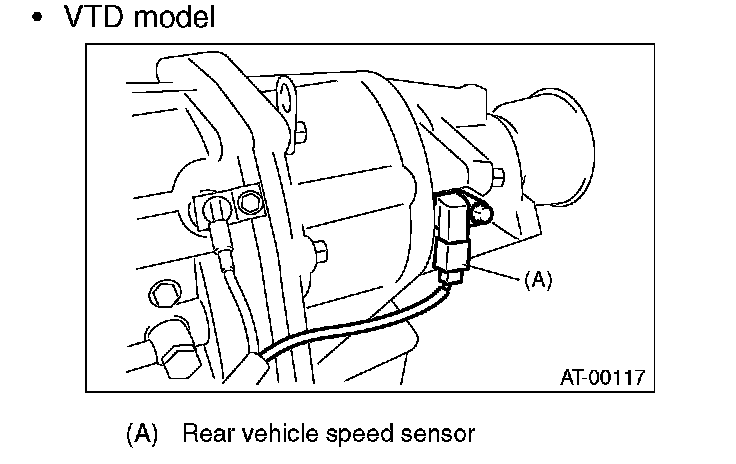

^ VTD model





5) Remove the rear vehicle speed sensor.

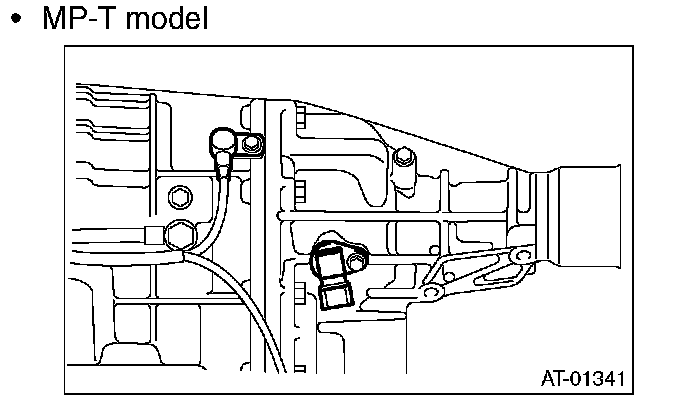

^ MP-T model

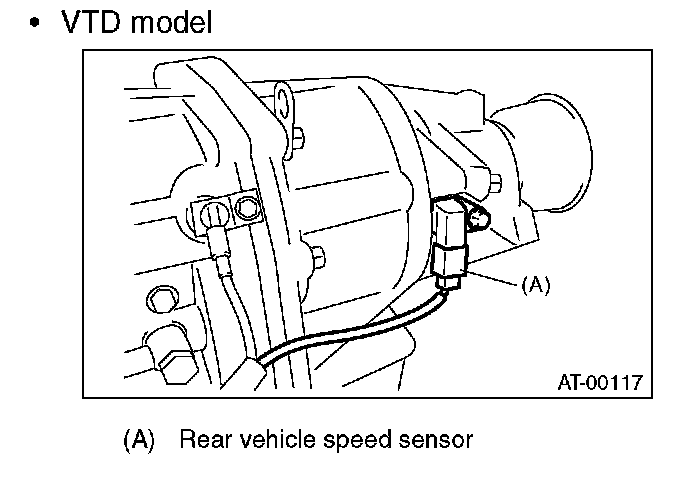

^ VTD model





INSTALLATION
Install in the reverse order of removal.

NOTE: Replace the O-ring with a new part.

Tightening torque: 7 N-m (0.7 kgf-m, 5.1 ft-lb)
