U1201

DTC U1201 CAN-HS COUNTER ABNORMAL

DTC DETECTING CONDITION:
High speed CAN communication of body integrated unit which monitor the error data and non-received data are faulty.

TROUBLE SYMPTOM:
- "Er HC" is displayed in odo/trip meter. (Except for meter with MID)
- Malfunction indicator light illuminates.

WIRING DIAGRAM:
- VDC model:

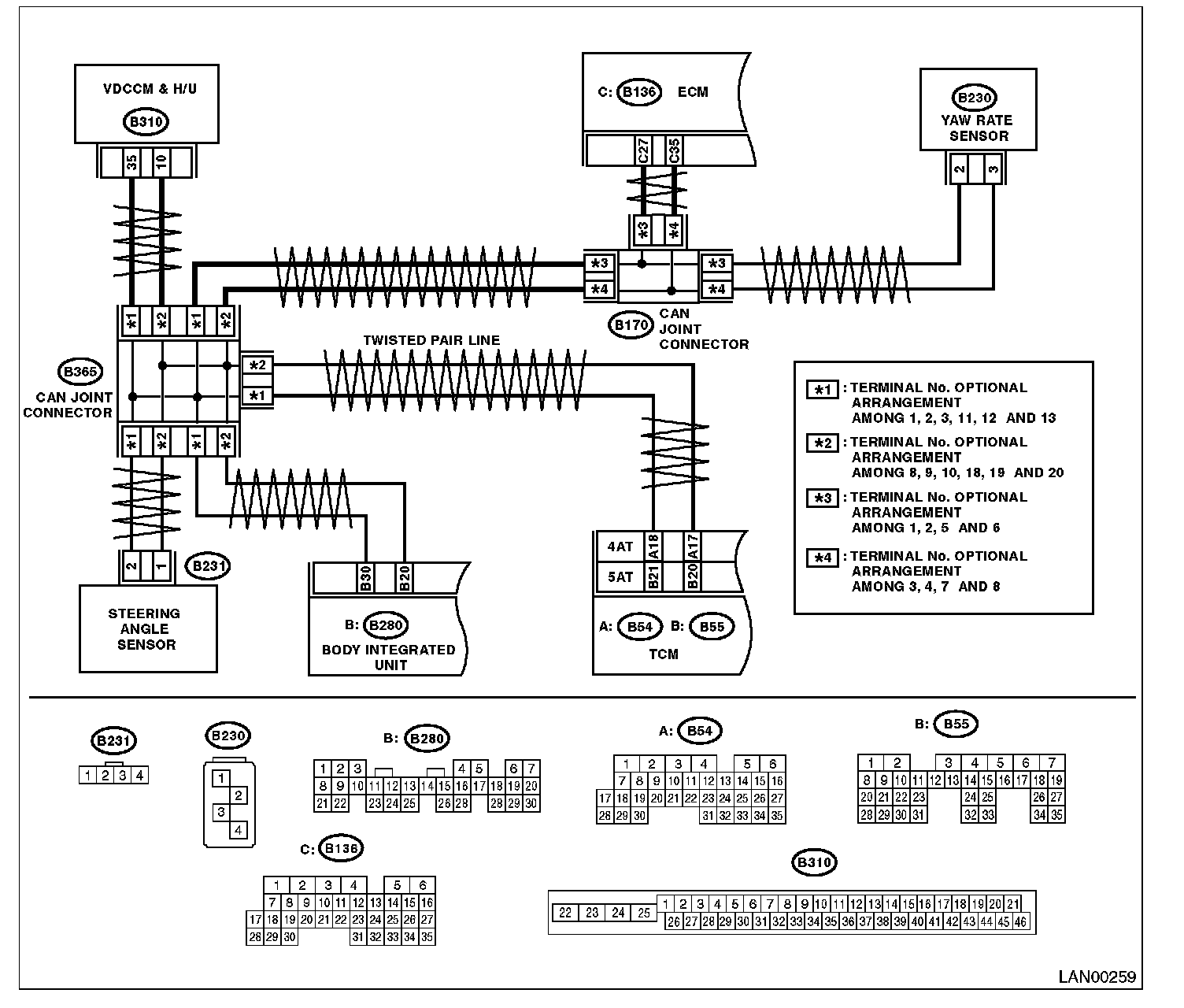

Wiring Diagram:

- ABS model:

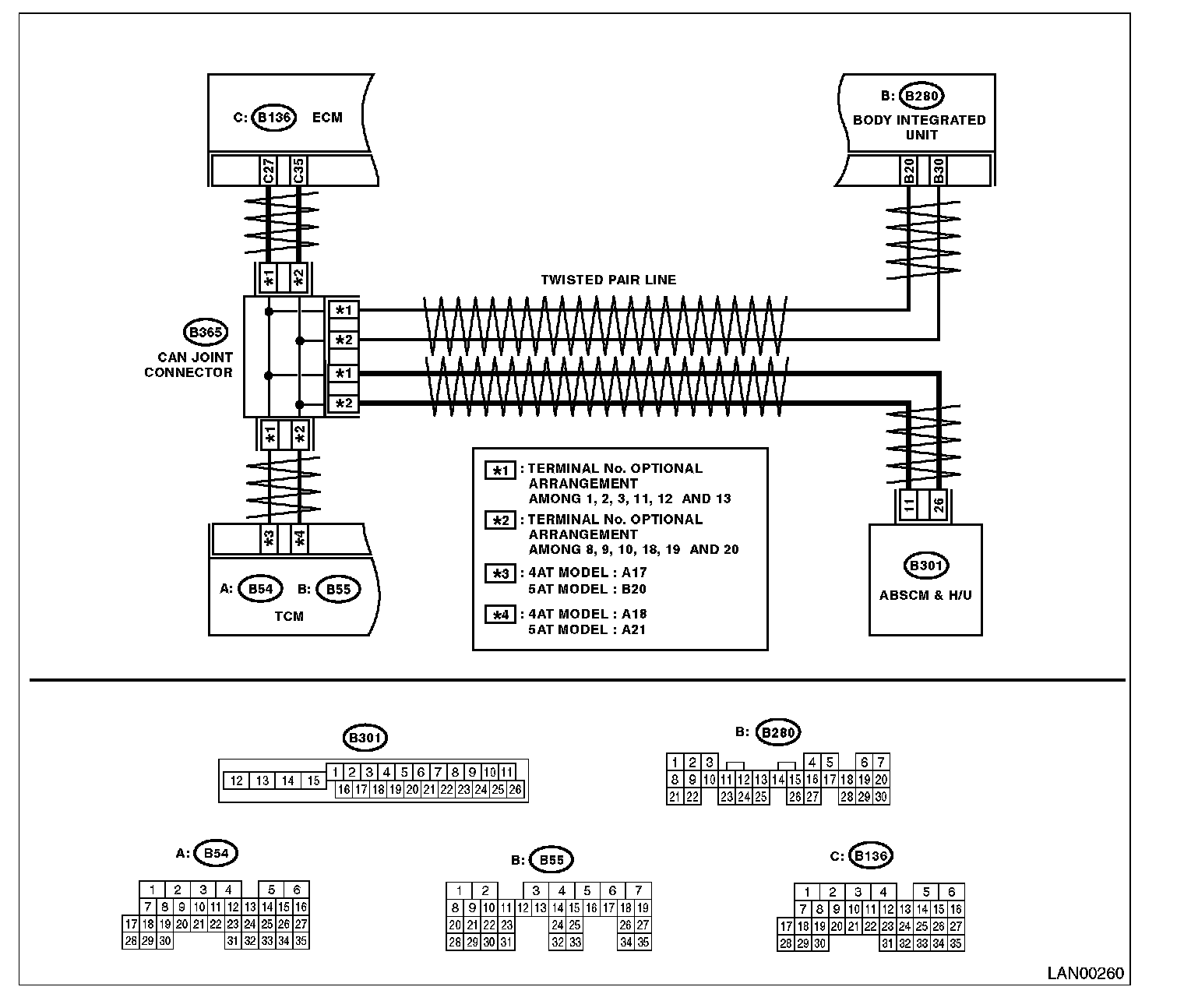

Wiring Diagram:

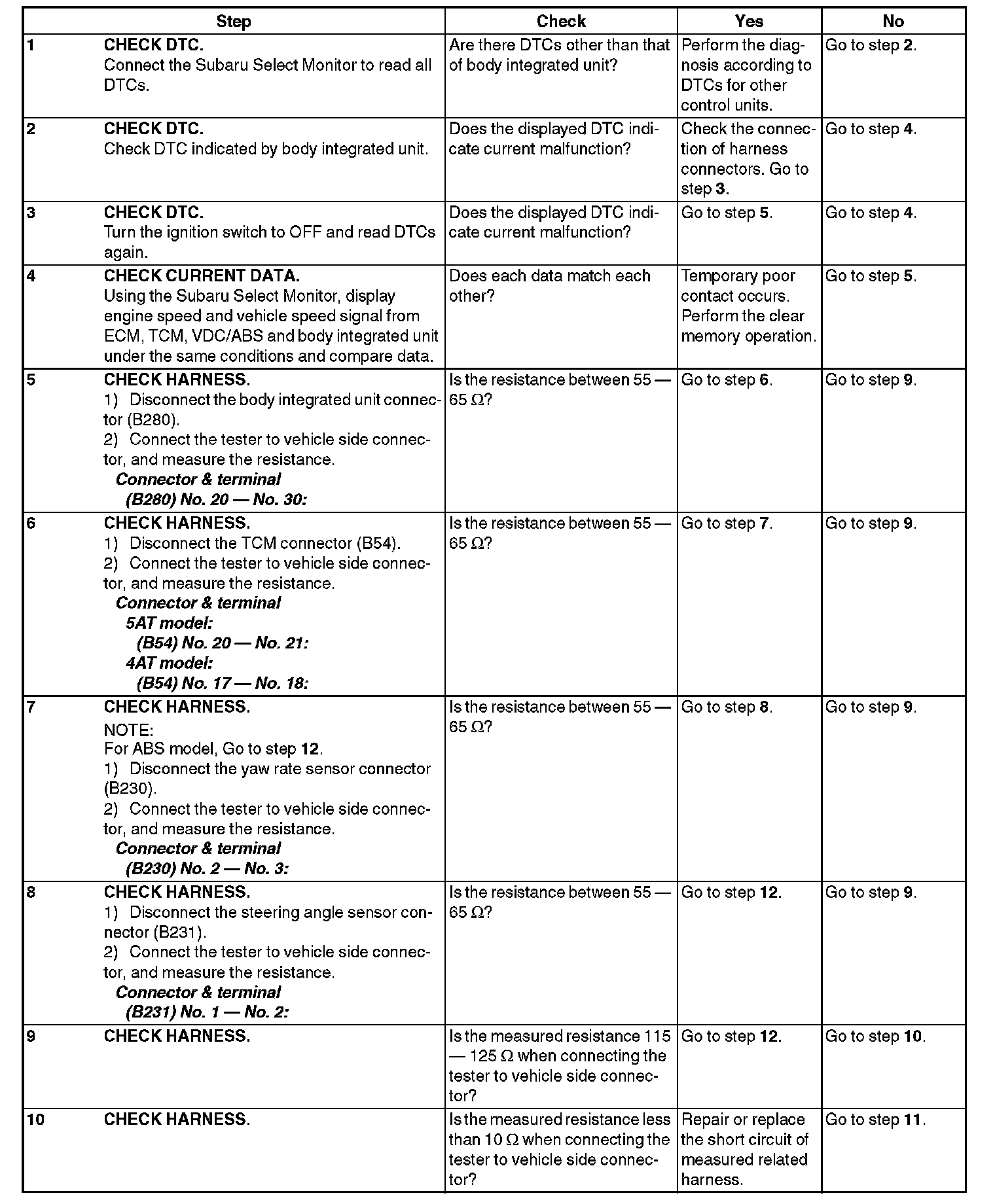

Step 1-10:

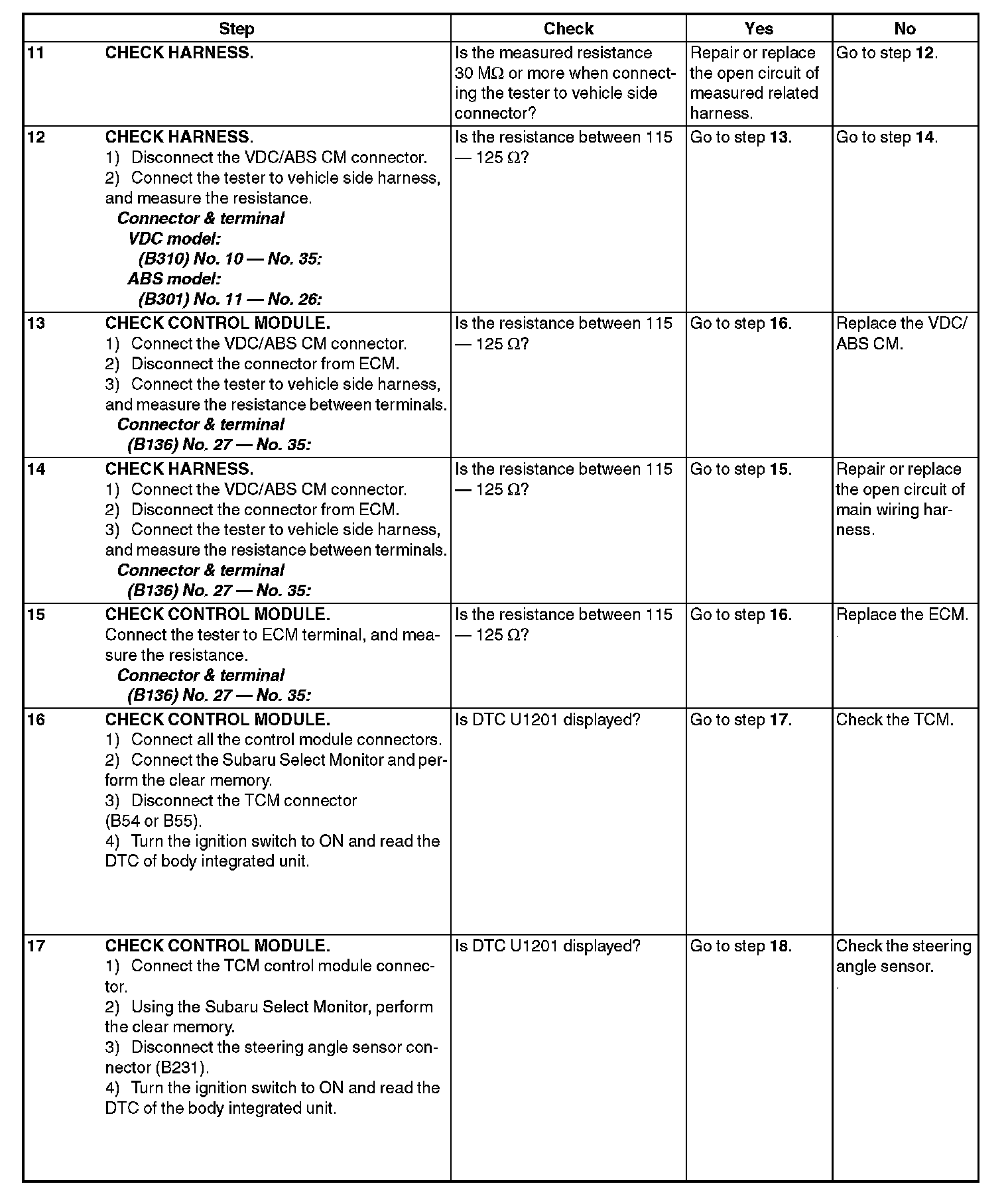

Step 11-17:

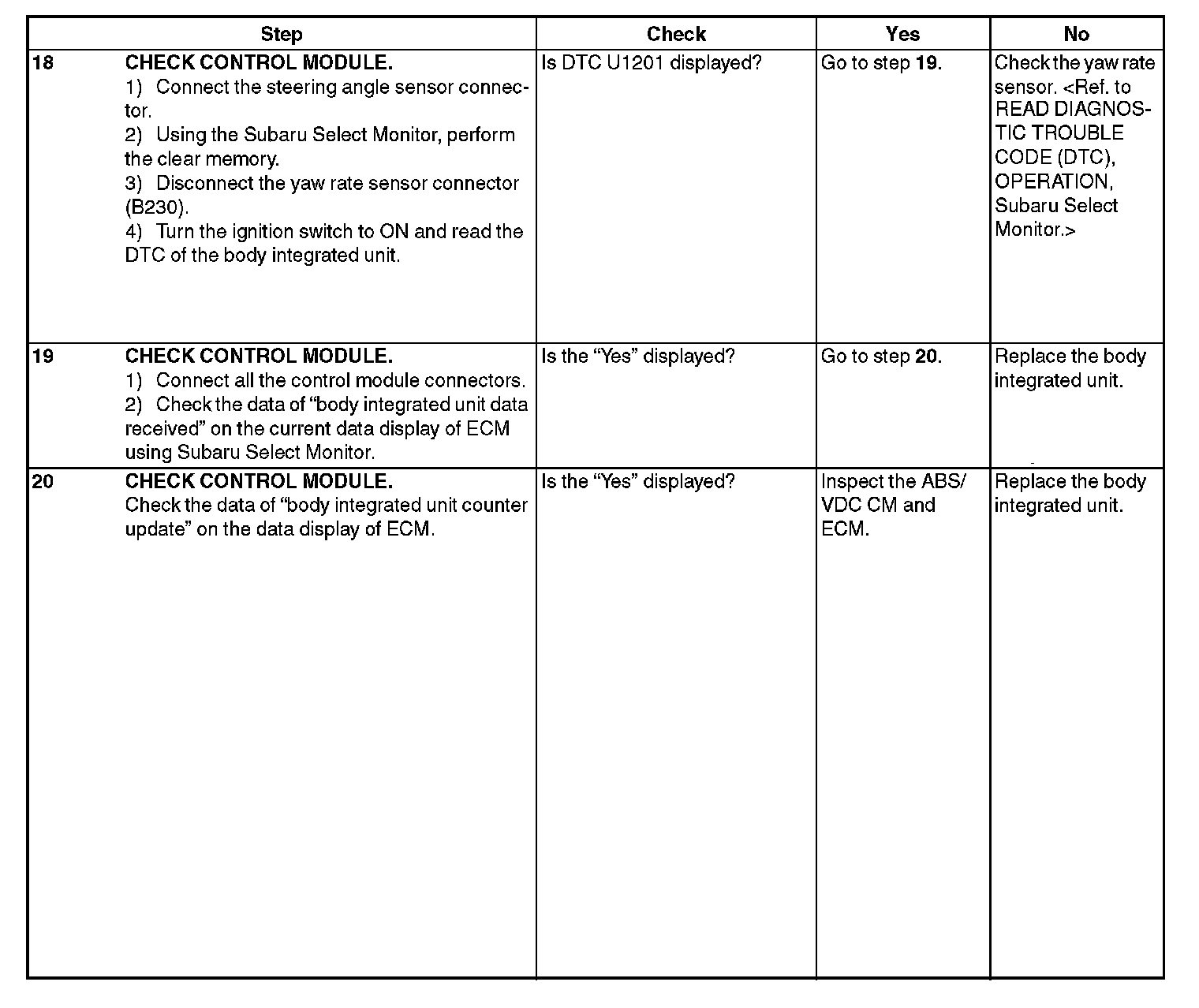

Step 18-20:
