Engine - Diagnostics

DTC P2096 POST CATALYST FUEL TRIM SYSTEM TOO LEAN BANK 1

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode Clear Memory Mode and Inspection Mode.

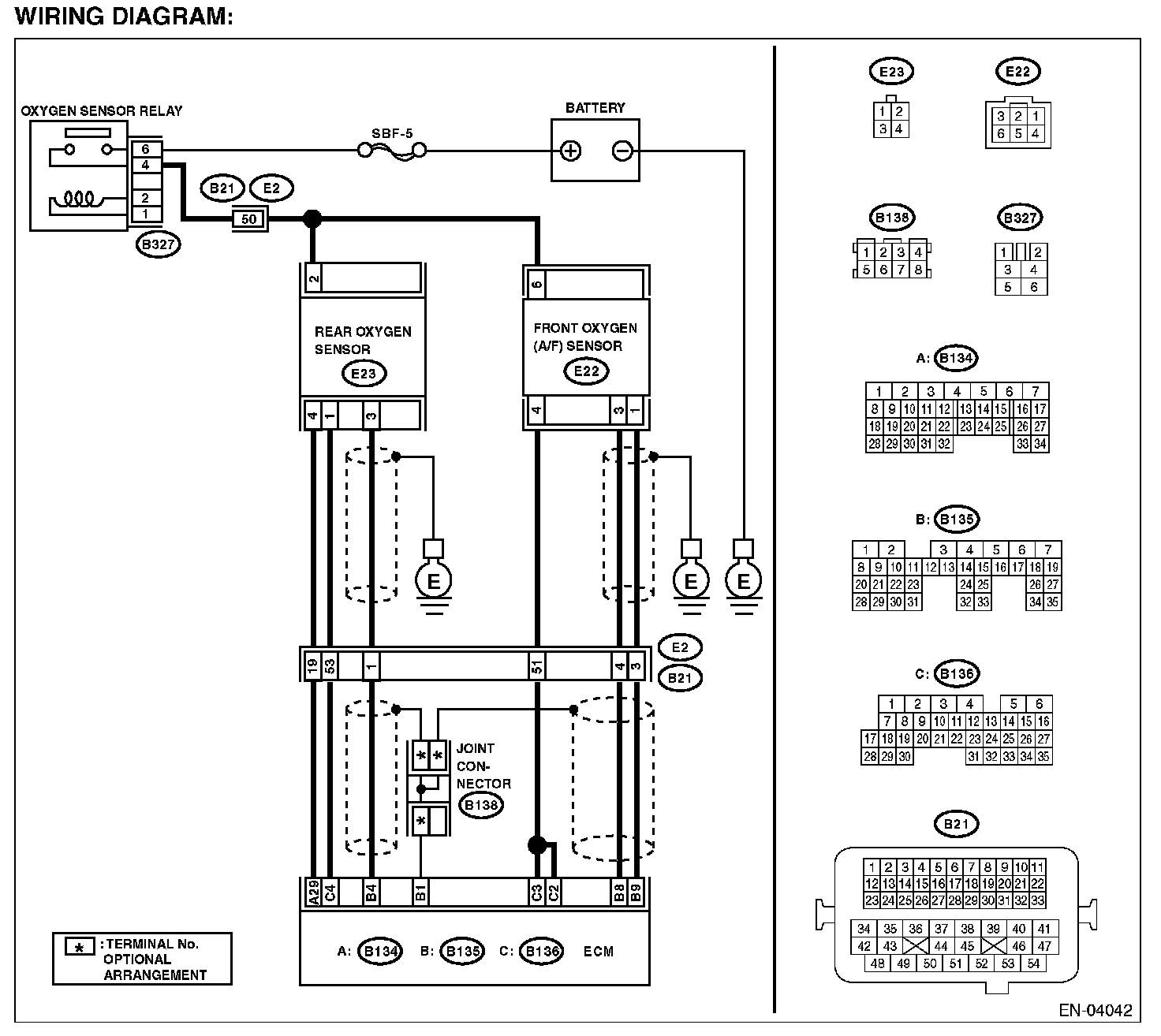

Wiring Diagram:

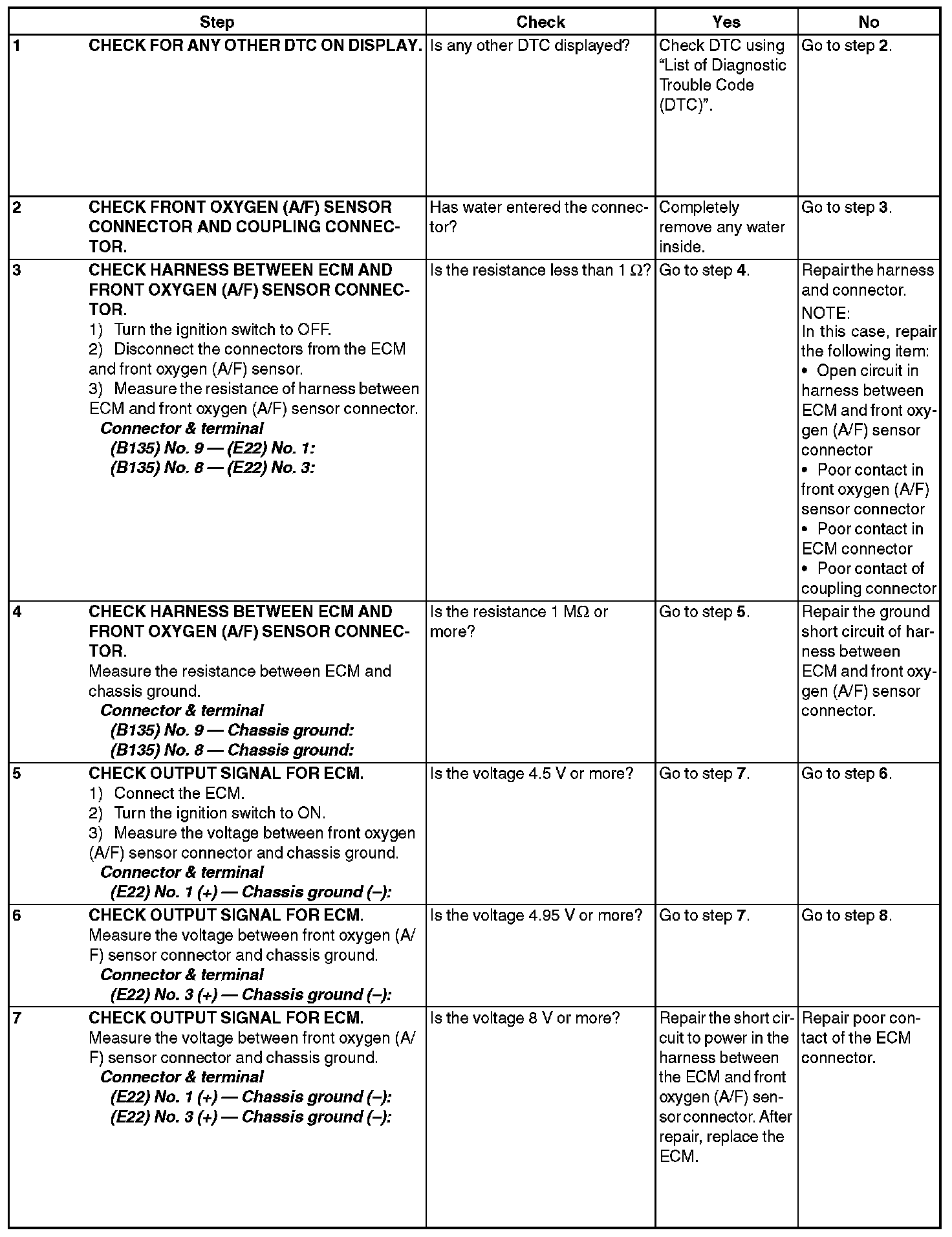

Step 1-7:

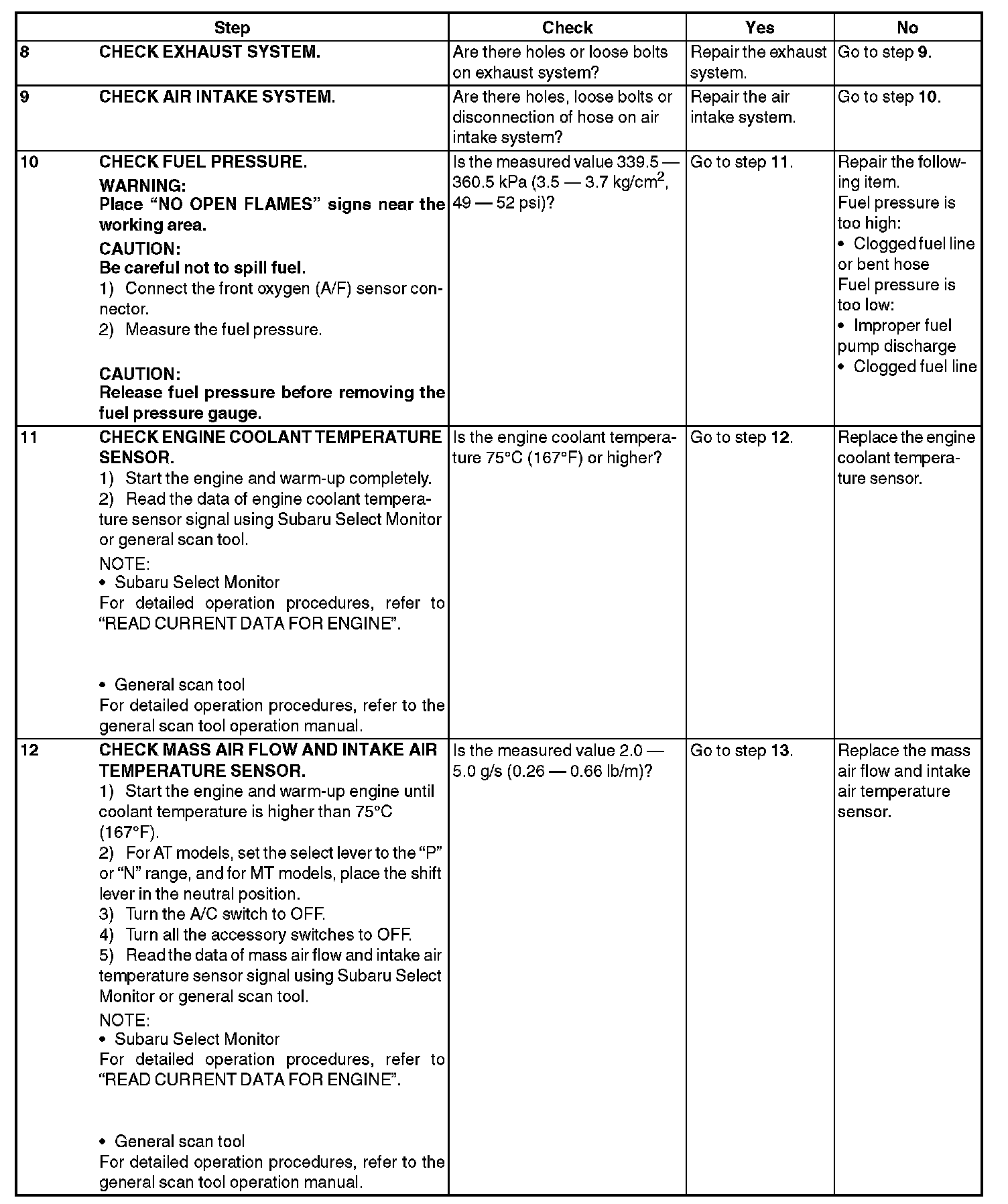

Step 8-12:

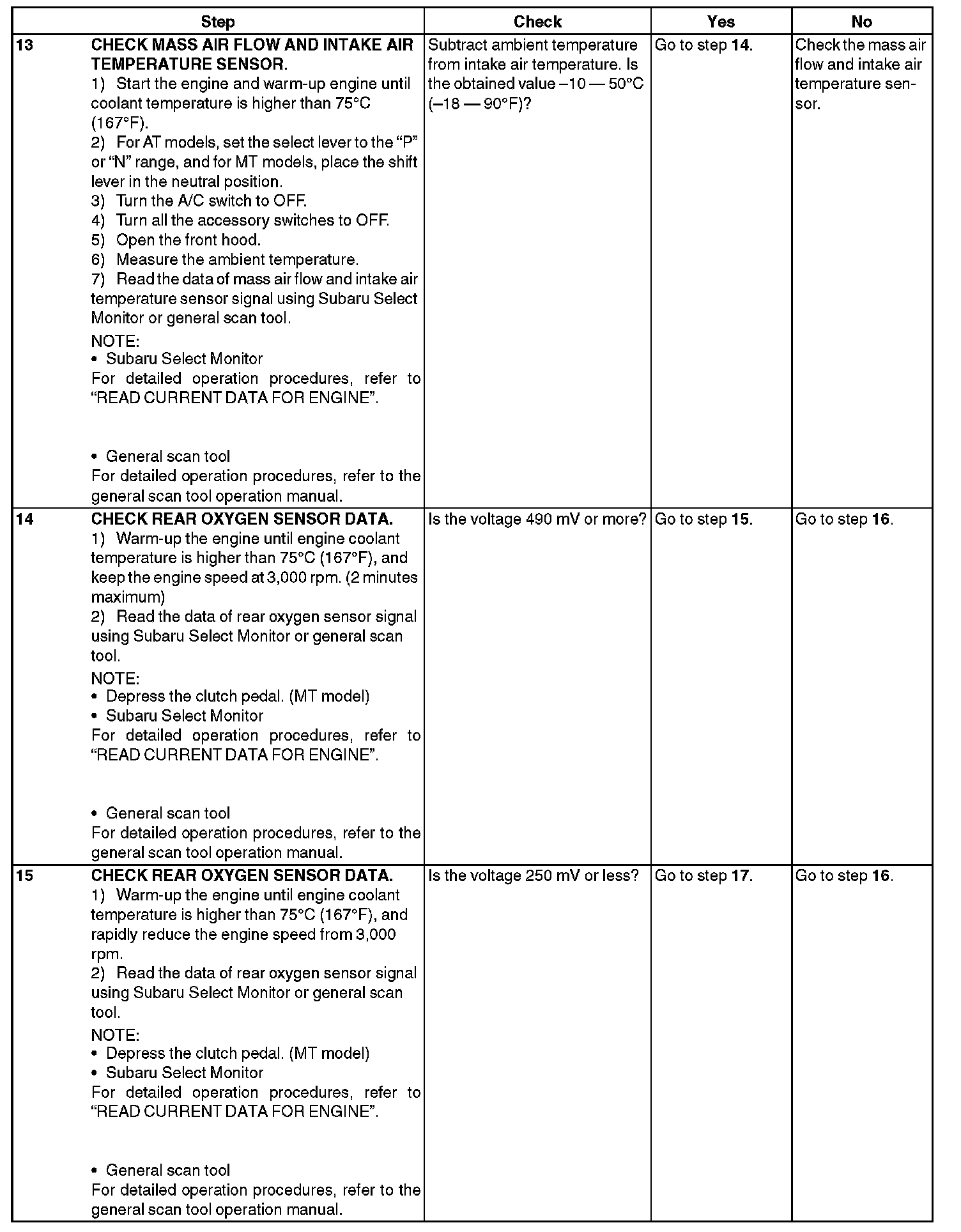

Step 13-15:

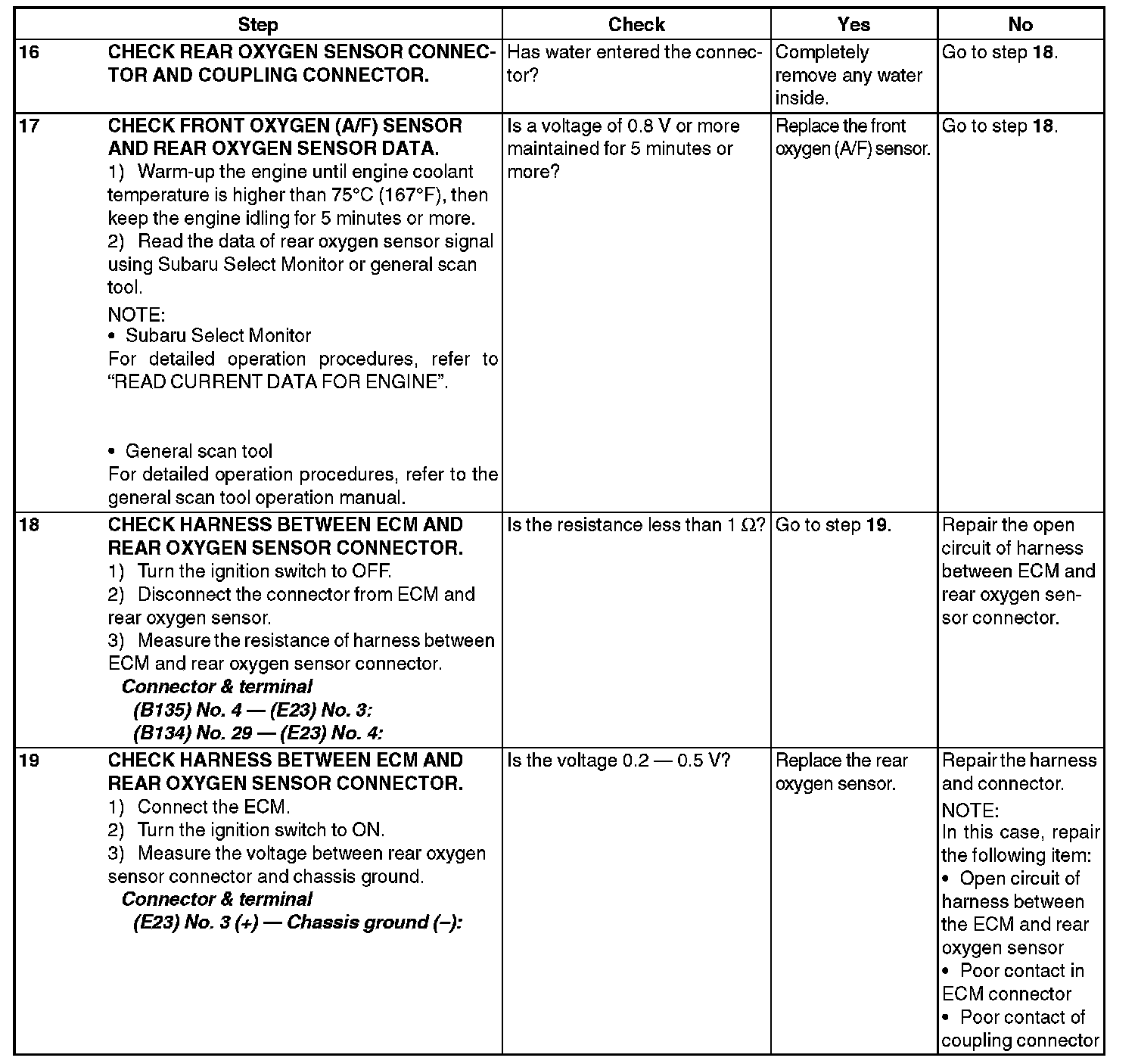

Step 16-19:
