P1817

DTC P1817 SPORT MODE SWITCH CIRCUIT

DTC DETECTING CONDITION:
Input signal circuit of SPORT/manual mode switch is shorted.

TROUBLE SYMPTOM:
^ Manual mode can not be set.
^ The SPORT indicator light does not illuminate.
^ No SPORT mode occurs.

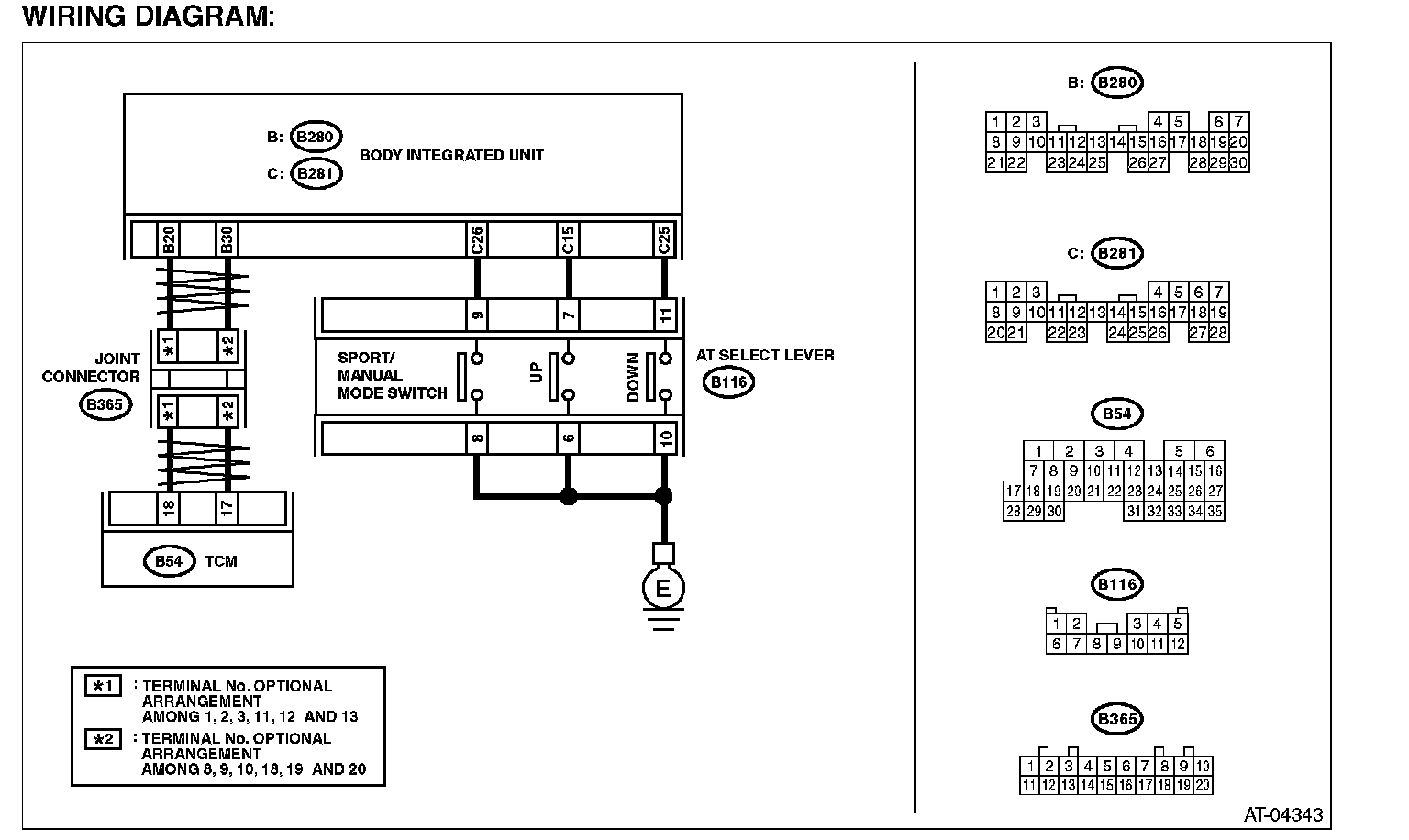

WIRING DIAGRAM:

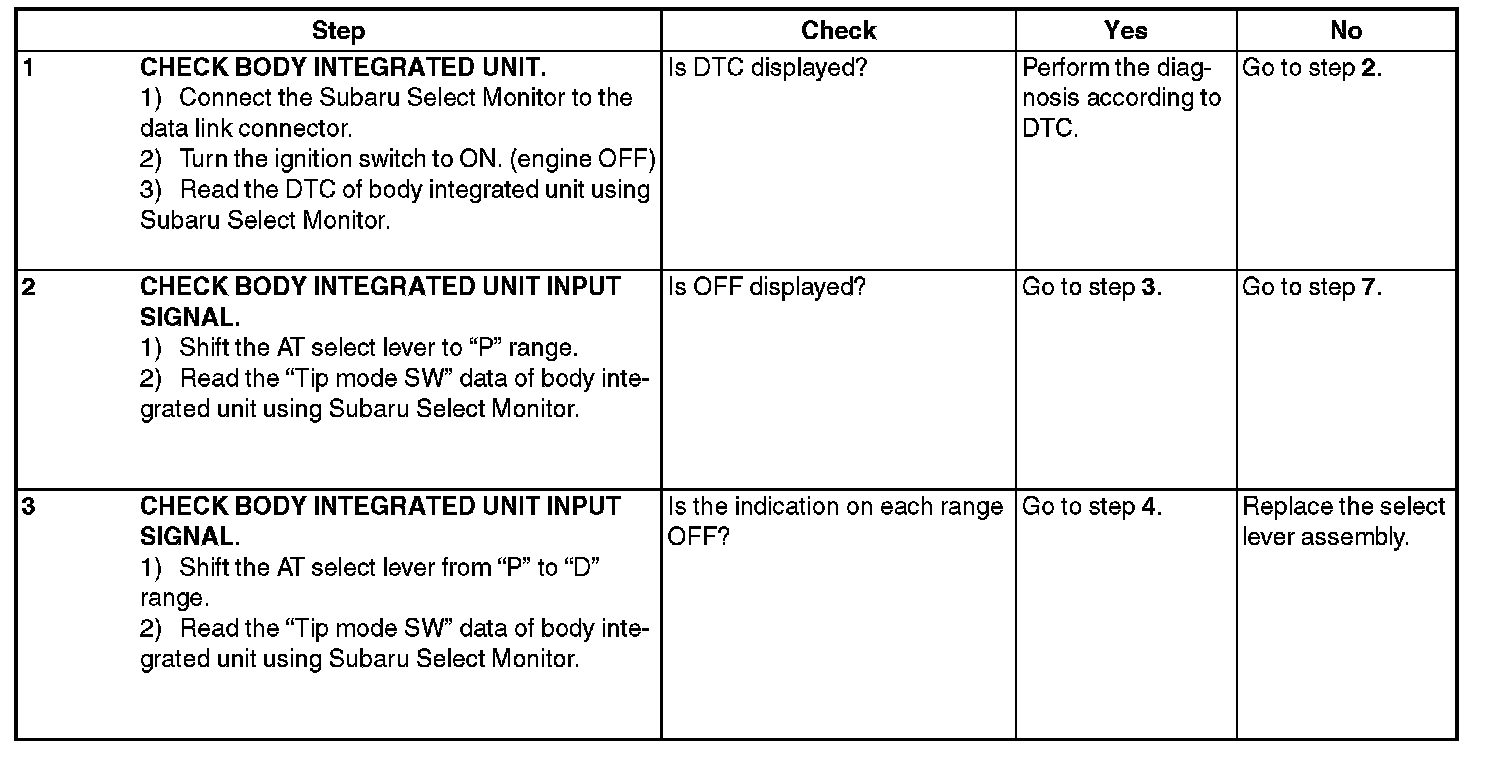

Step 1-Step 3:

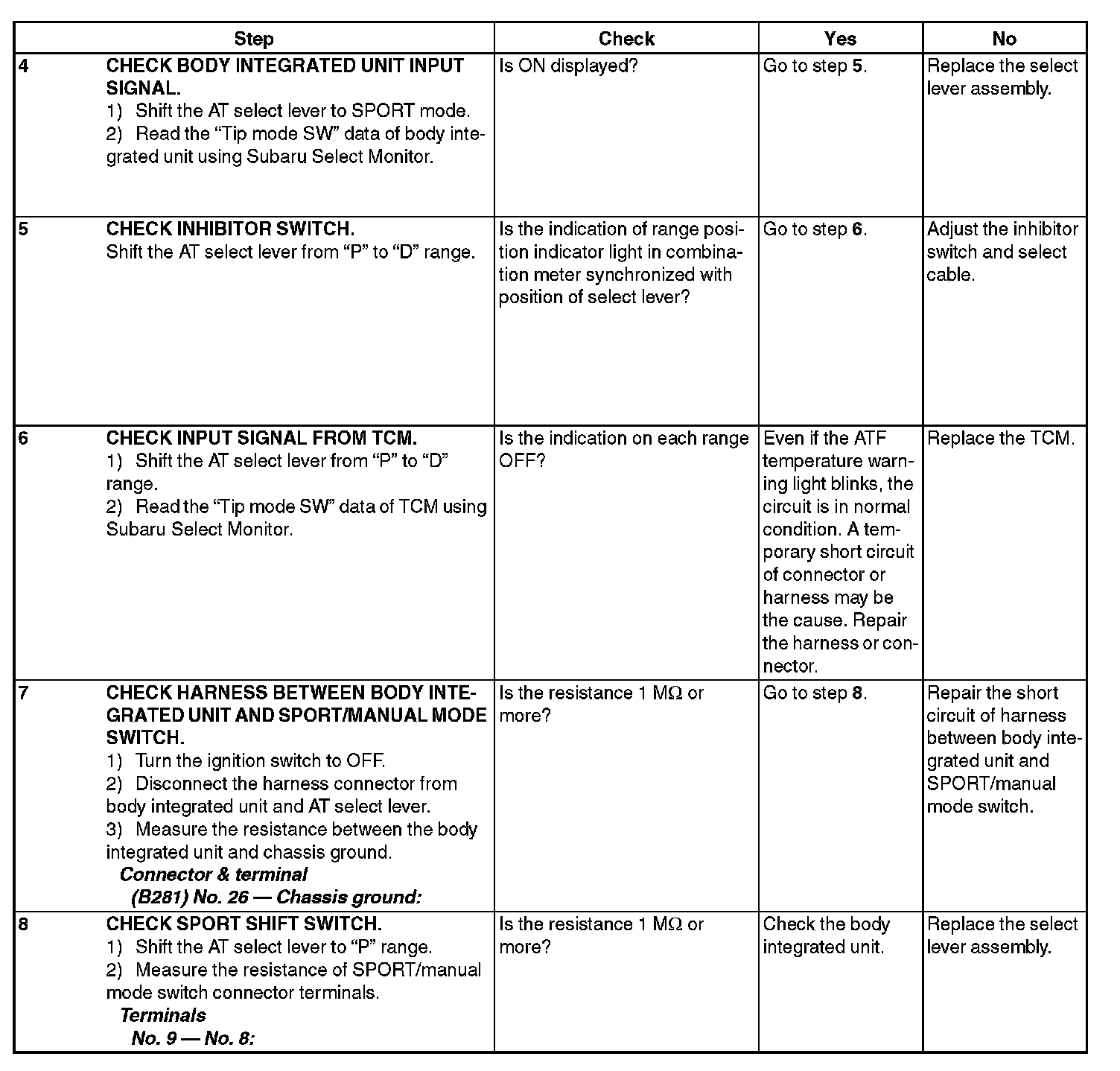

Step 4-Step 8:
