Outline of Diagnosis

DTC P1572 IMM CIRCUIT FAILURE (EXCEPT ANTENNA CIRCUIT)

DTC DETECTING CONDITION:
Communication failure between body integrated unit and ECM

WIRING DIAGRAM:

Wiring Diagram:

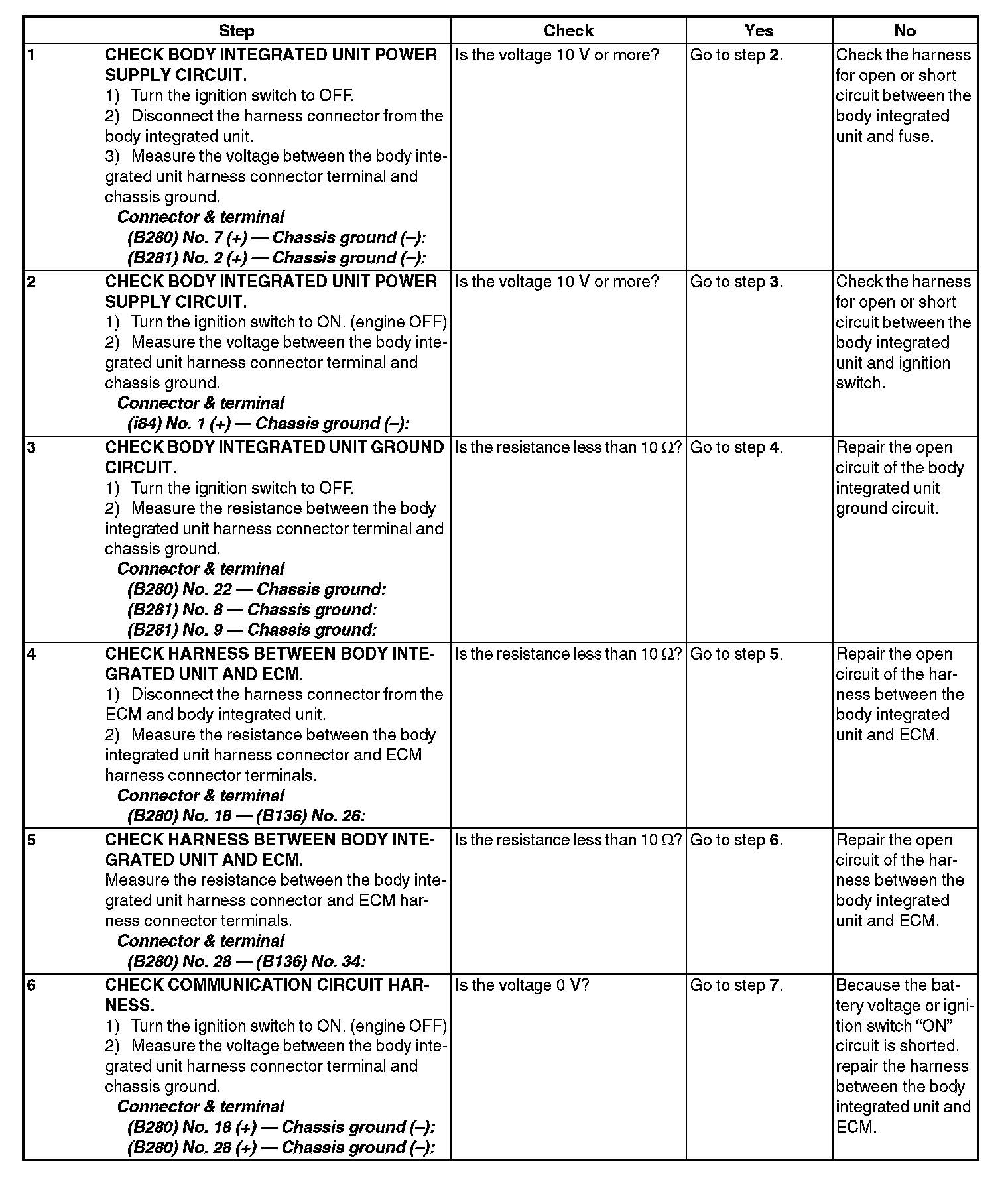

Step 1-6:

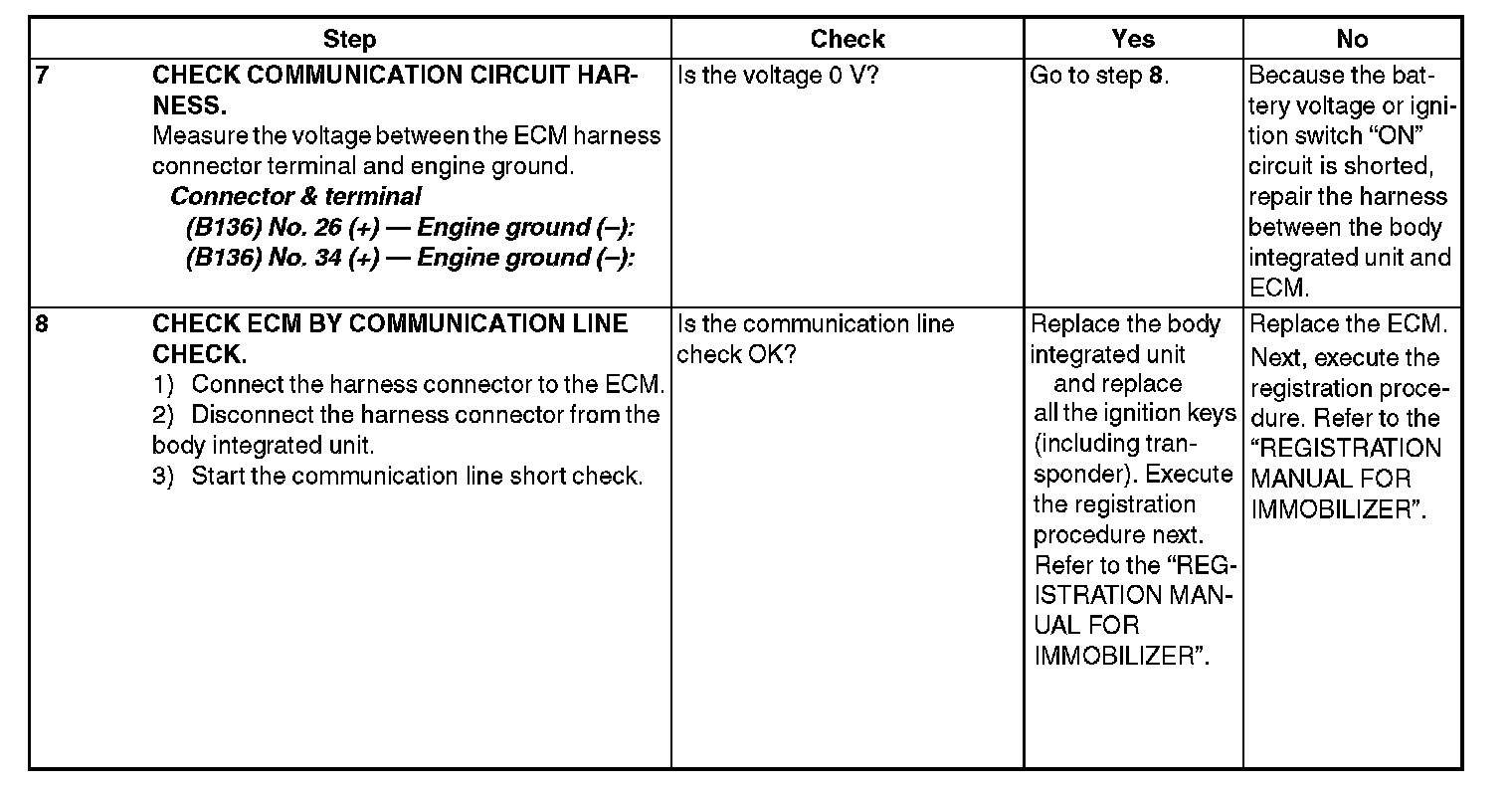

Step 7-8:
