Outline of Diagnosis
Outline of Diagnosis
DTC P1570 ANTENNA
DTC DETECTING CONDITION:
Faulty antenna
WIRING DIAGRAM:
Wiring Diagram:

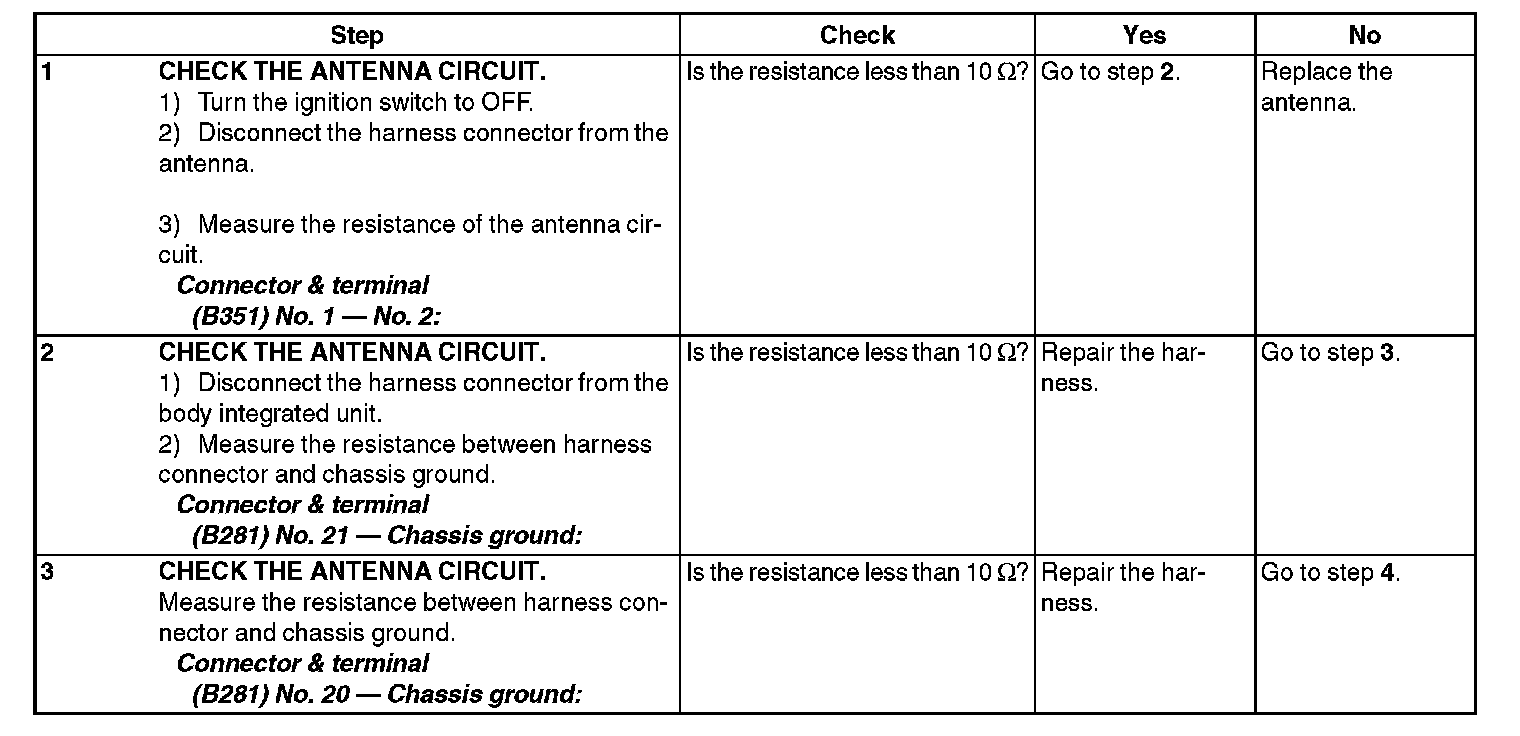

Step 1-3:

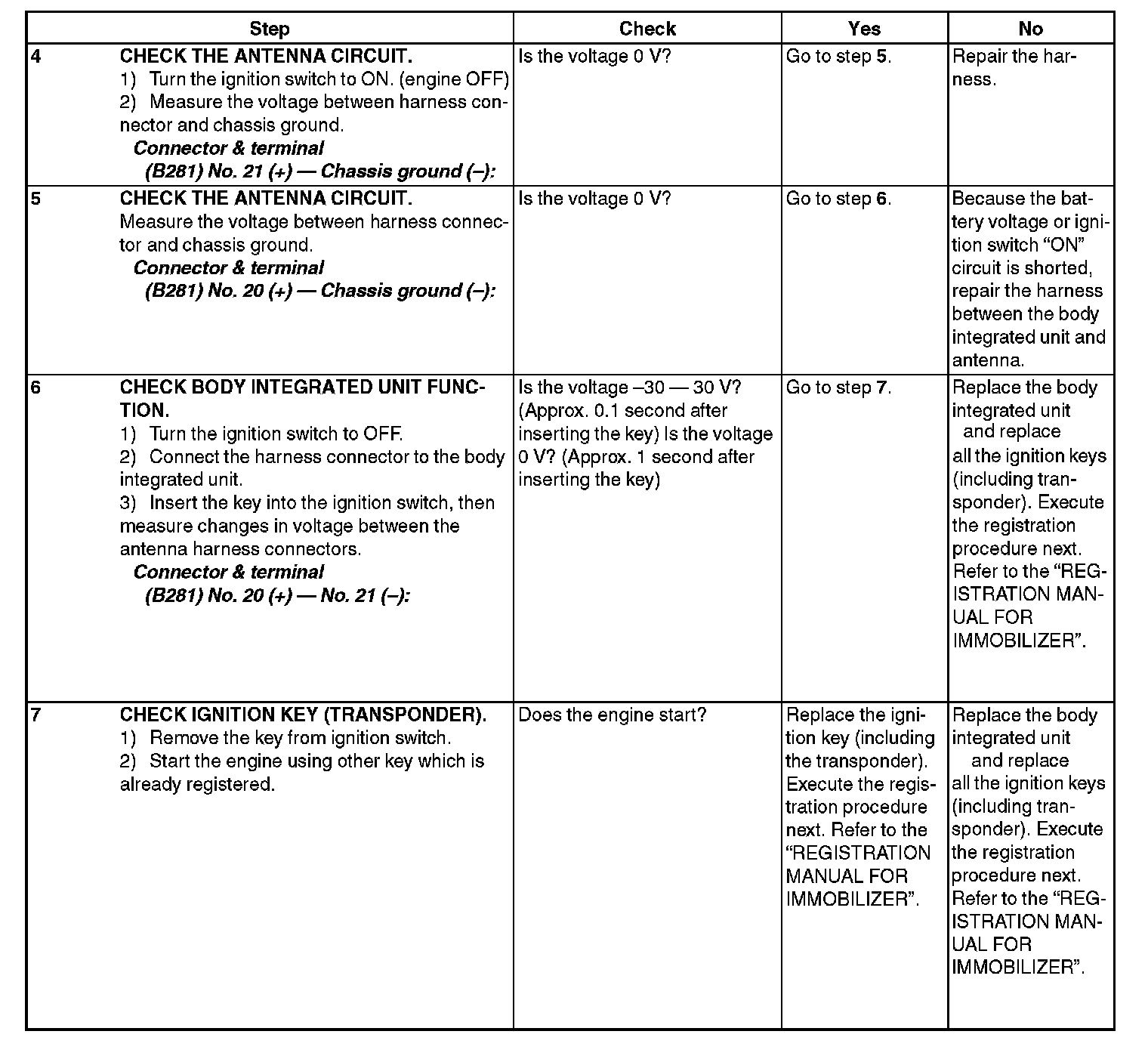

Step 4-7:
