Engine - Diagnostics

The content of this article / image reflects Manual update # 18-140-09 dated 05/07/09.




DTC P1400 FUEL TANK PRESSURE CONTROL SOLENOID VALVE CIRCUIT LOW

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode Clear Memory Mode and Inspection Mode.

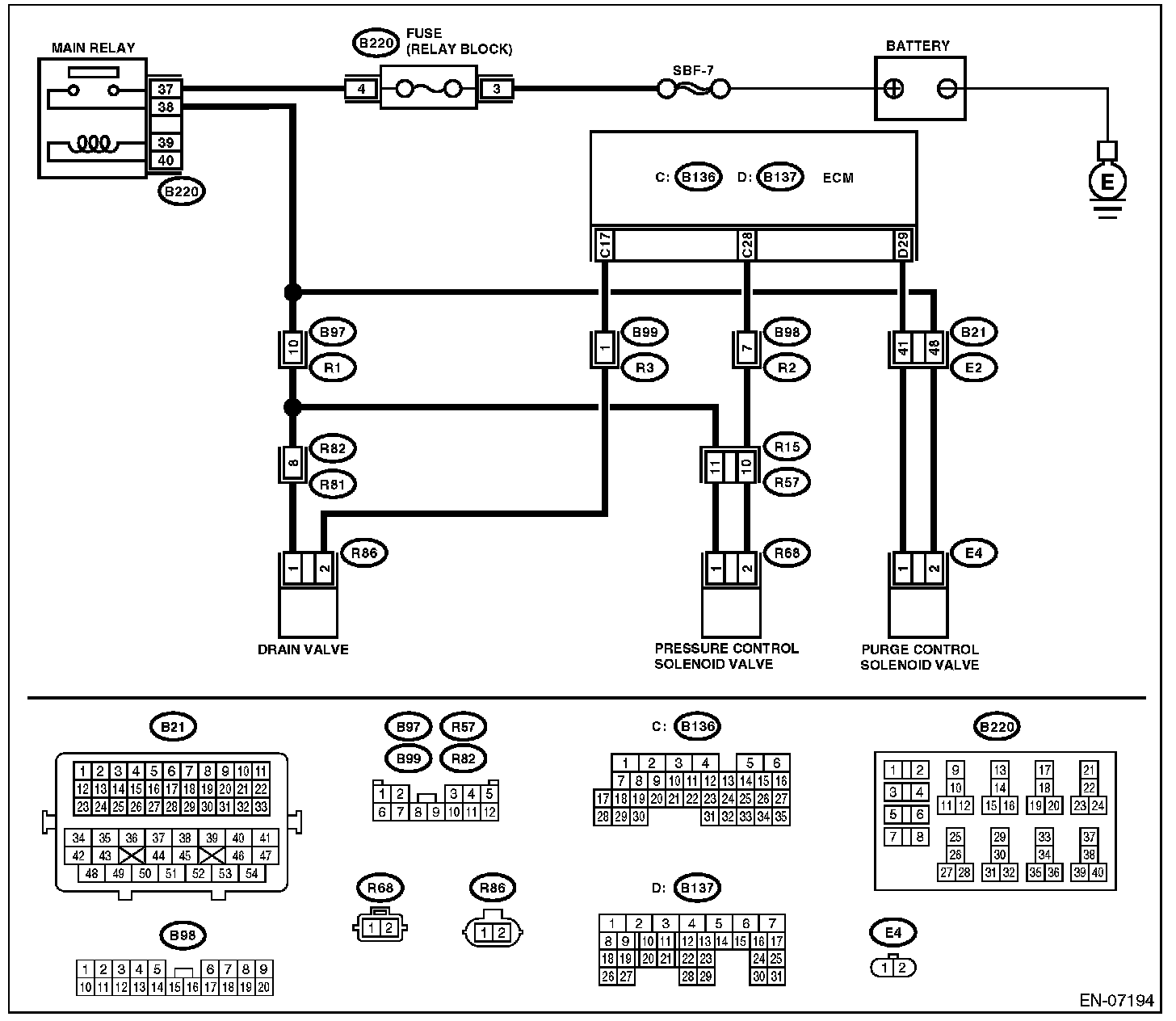

WIRING DIAGRAM:

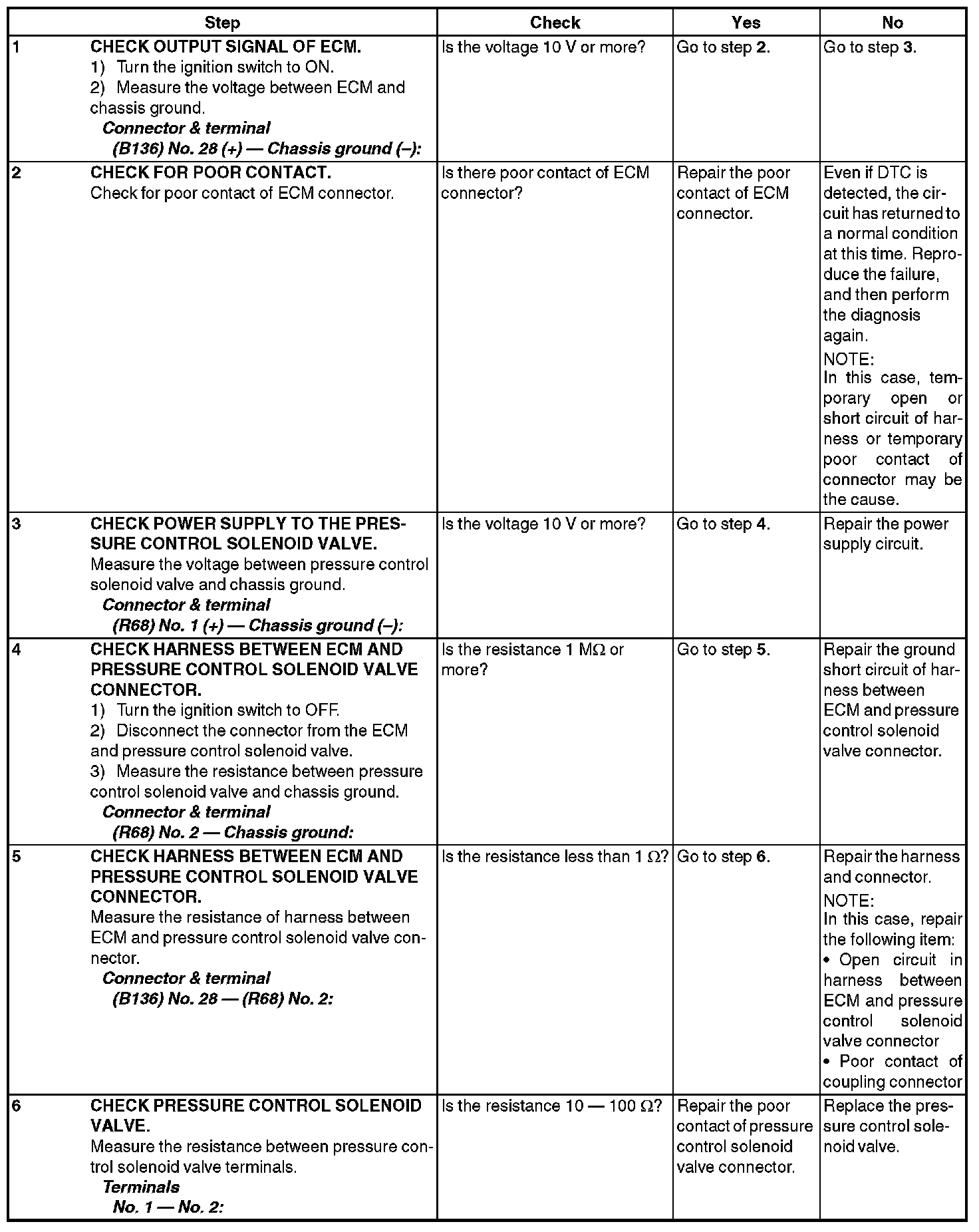

Step 1-6:
