P0763
DTC P0763 SHIFT SOLENOID "C" ELECTRICALThe content of this article/image reflects the changes Identified in
TSB # 18-124-08 dated 01/31/08

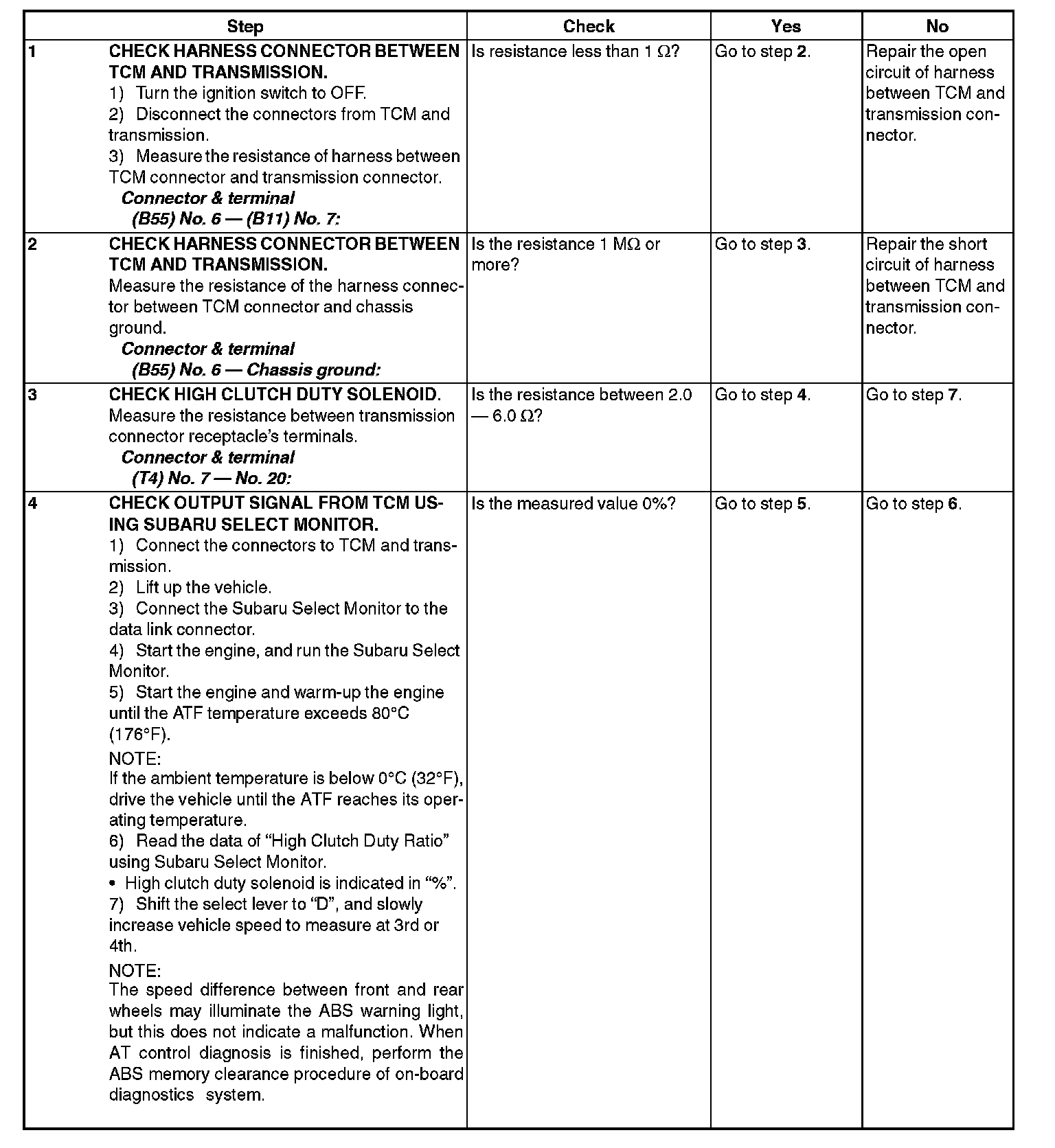

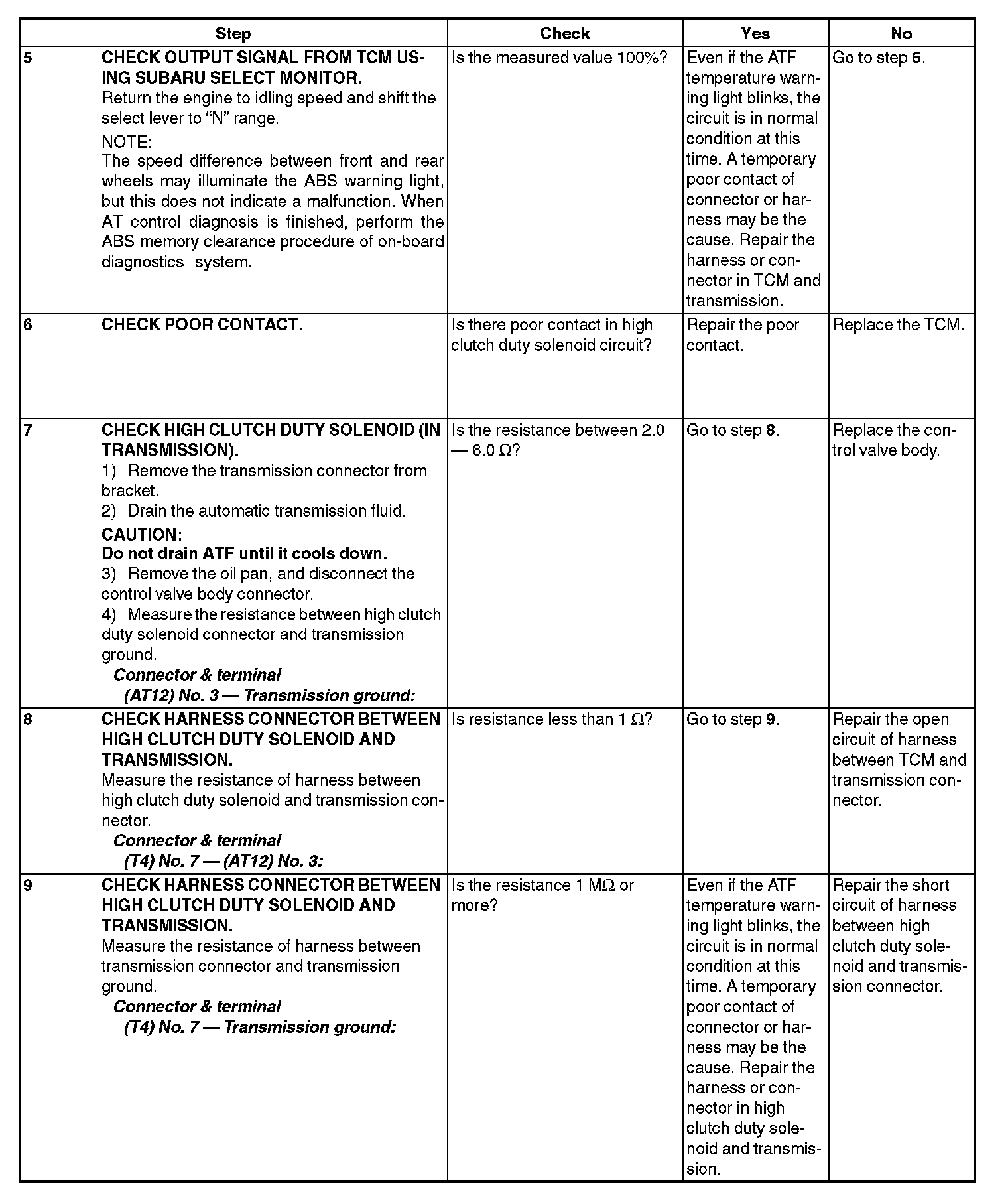

DTC DETECTING CONDITION:
Output signal circuit of high clutch duty solenoid is open or shorted.
TROUBLE SYMPTOM:
Excessive shift shock
WIRING DIAGRAM:
