Engine - Diagnostics
The content of this article / image reflects Manual update # 18-140-09 dated 05/07/09.DTC P0447 EVAPORATIVE EMISSION CONTROL SYSTEM VENT CONTROL CIRCUIT OPEN
DTC DETECTING CONDITION:
- Immediately at fault recognition
CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode Clear Memory Mode and Inspection Mode.

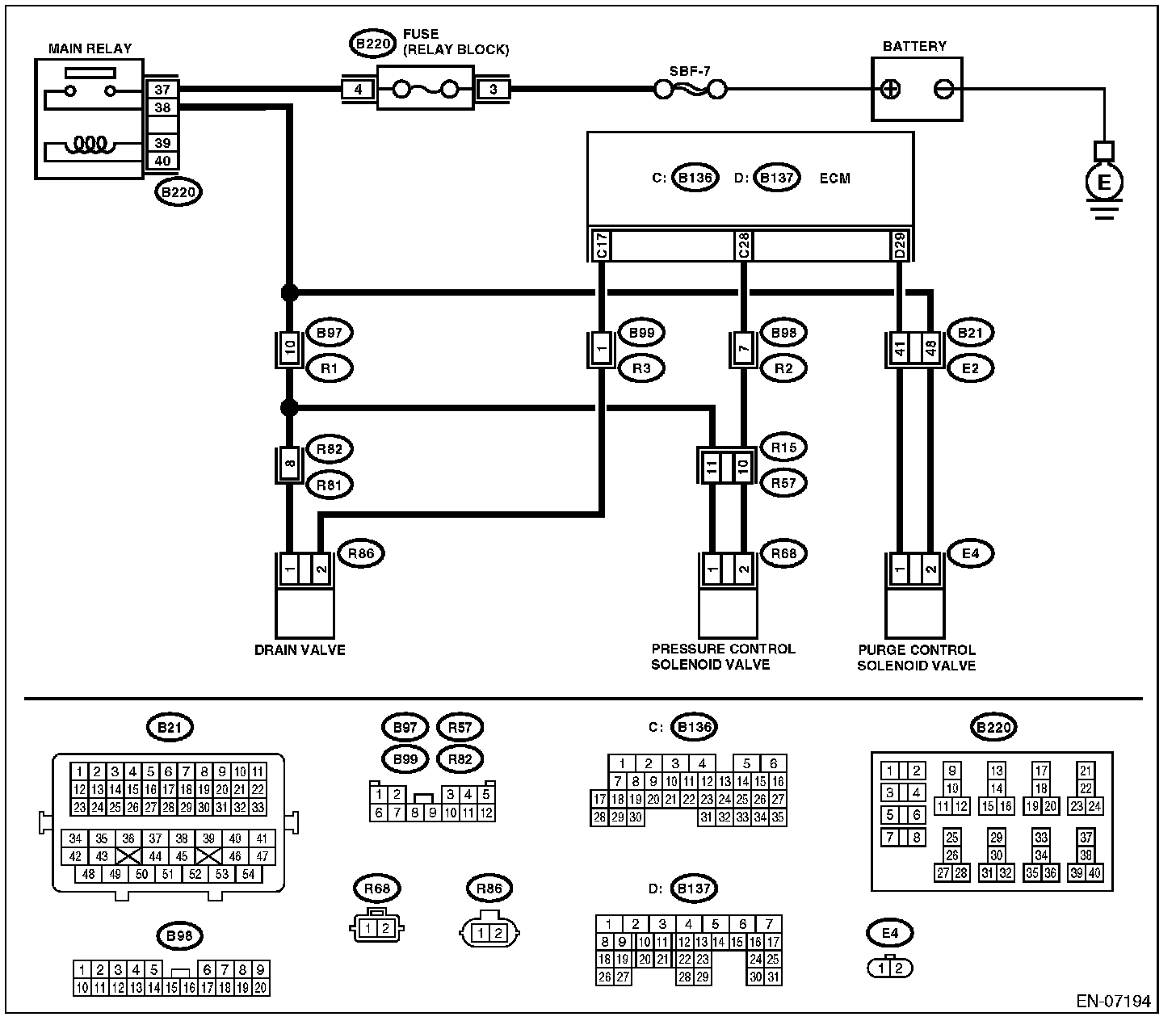

WIRING DIAGRAM:

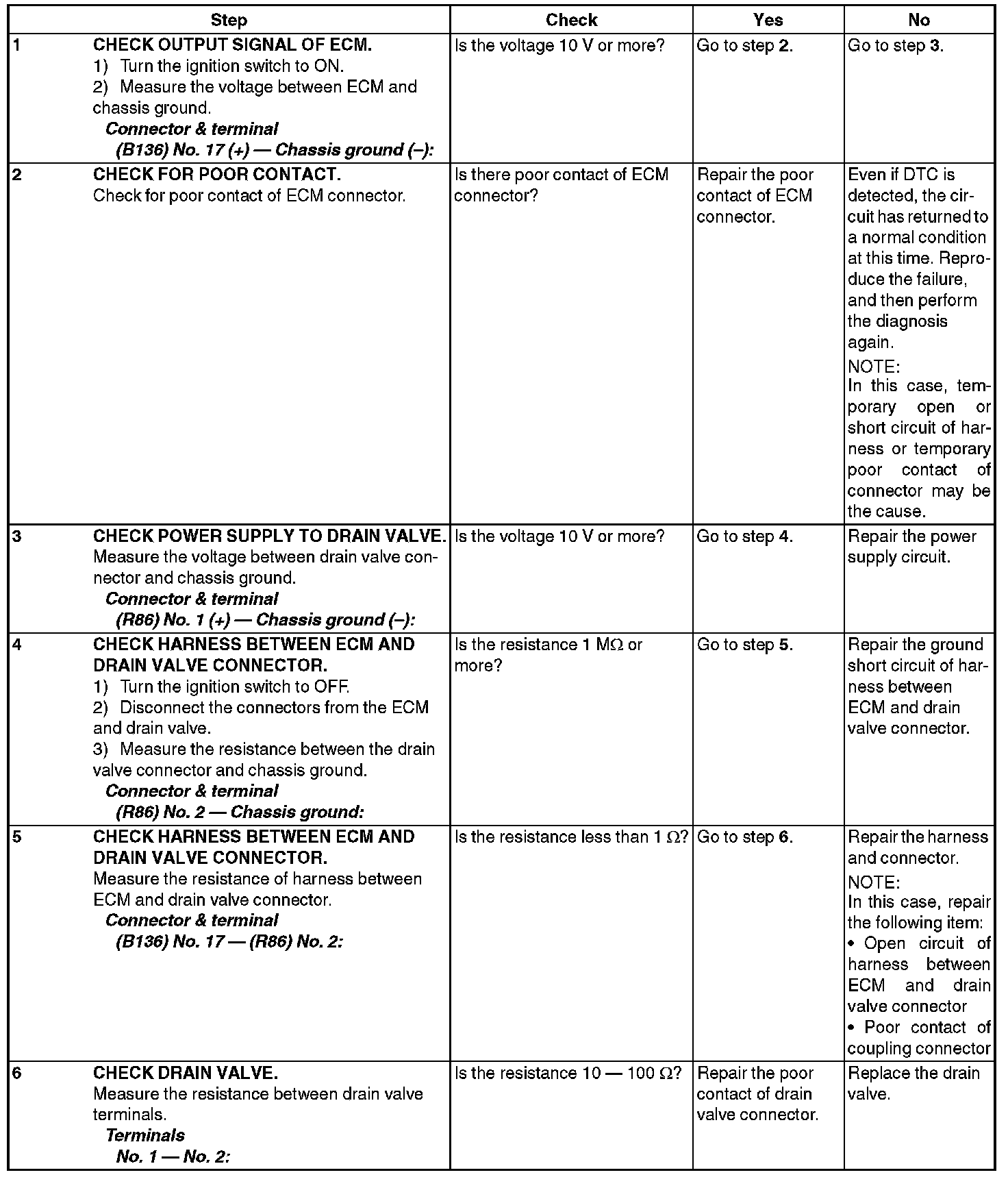

Step 1-6:
