Cruise Control System

DTC 12

The DTC is detected when the brake pedal is pressed or problem relating to stop light & brake switch occurs.

TROUBLE SYMPTOM:
- Cruise control cannot be set.
- Cruise control cannot be released.

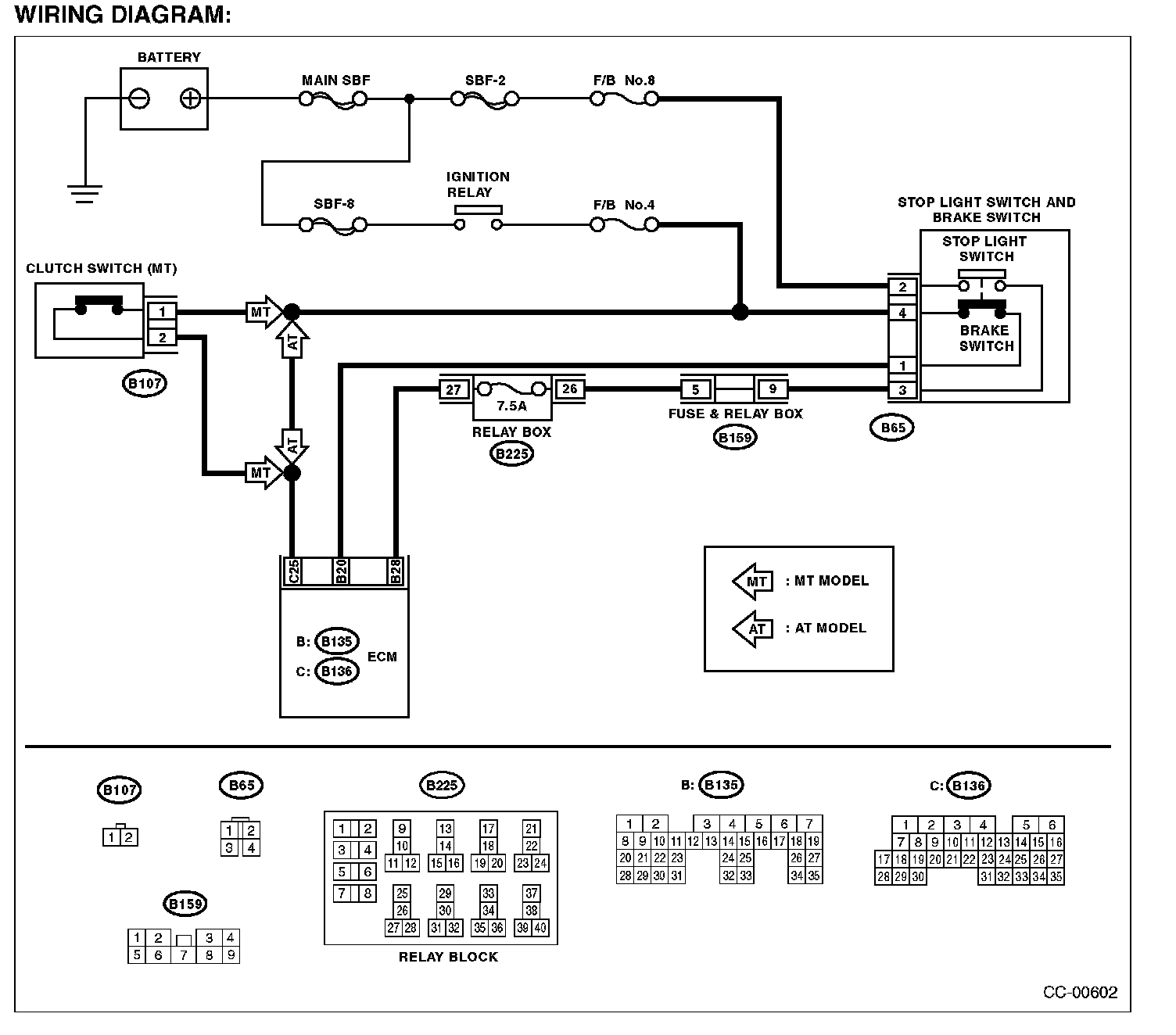

WIRING DIAGRAM

Wiring Diagram:

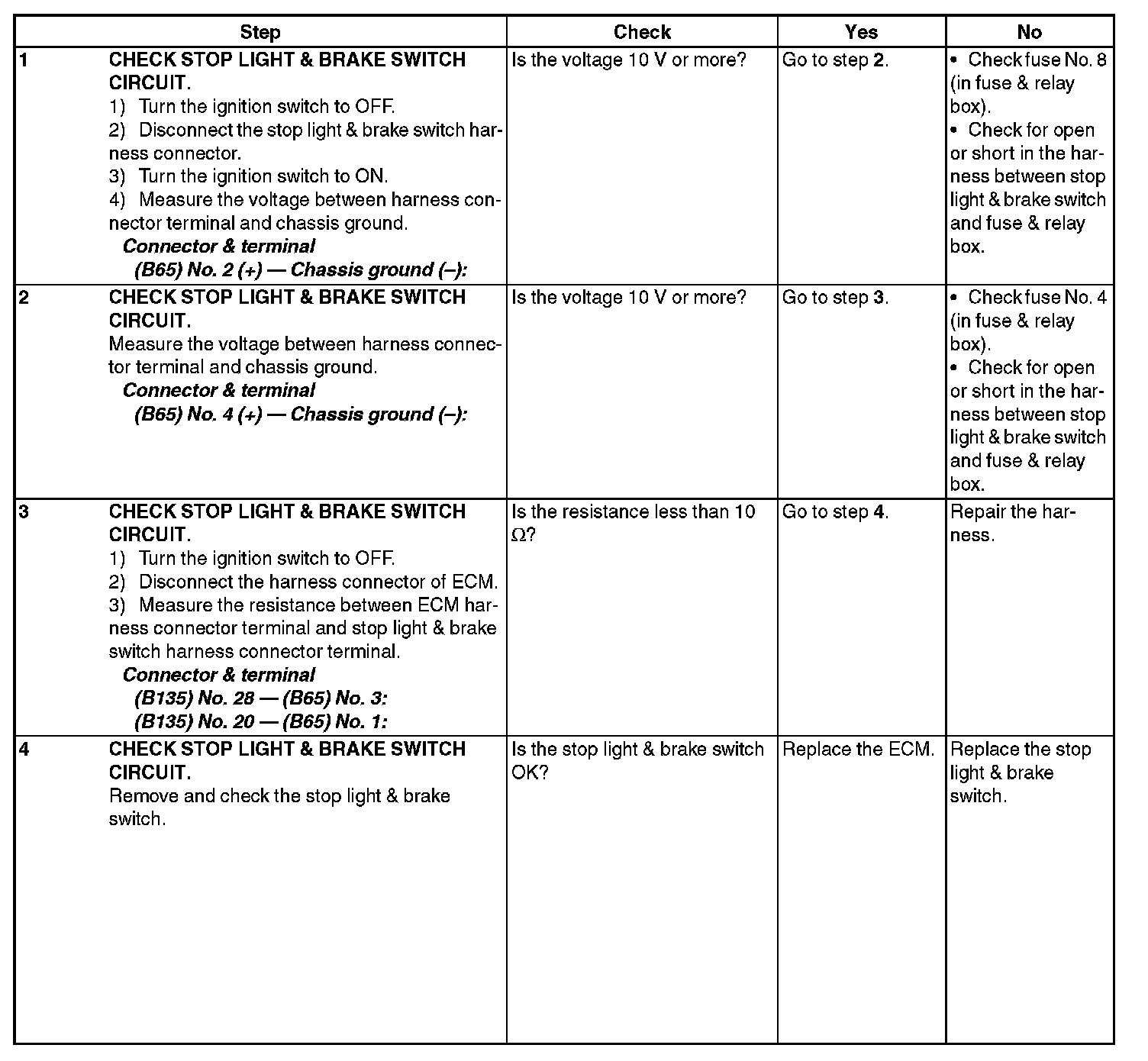

Step 1-4:
