DTC C0116 FAULTY STOPLIGHT SWITCH
DTC DETECTING CONDITION:
Defective stop light switch
WIRING DIAGRAM:

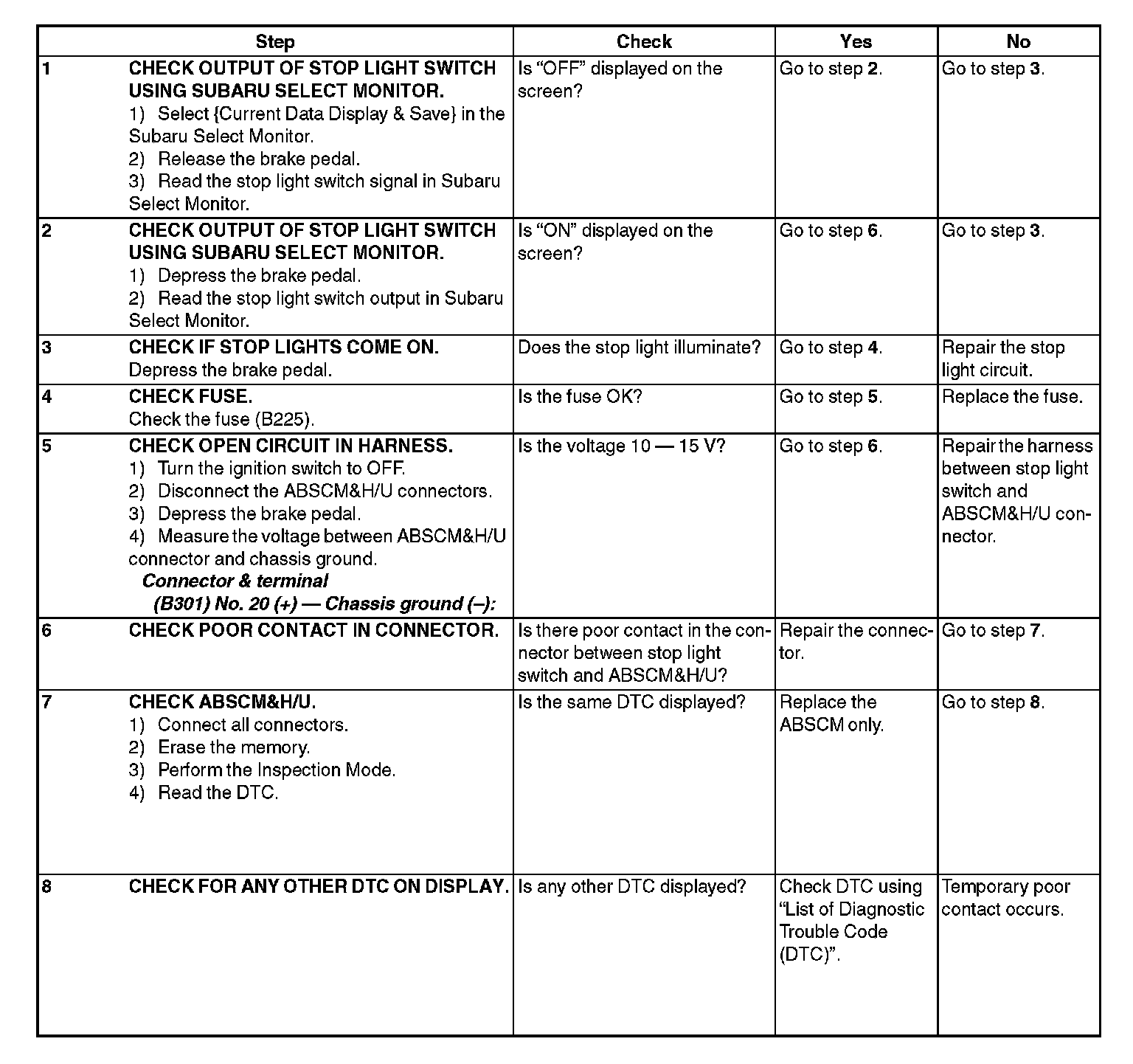

Step 1-Step 8:
