C0111

DTC C0111 MOTOR/MOTOR RELAY MALFUNCTION

DTC DETECTING CONDITION:
^ Defective motor
^ Defective motor relay
^ Defective harness connector

TROUBLE SYMPTOM:
ABS does not operate.

WIRING DIAGRAM:

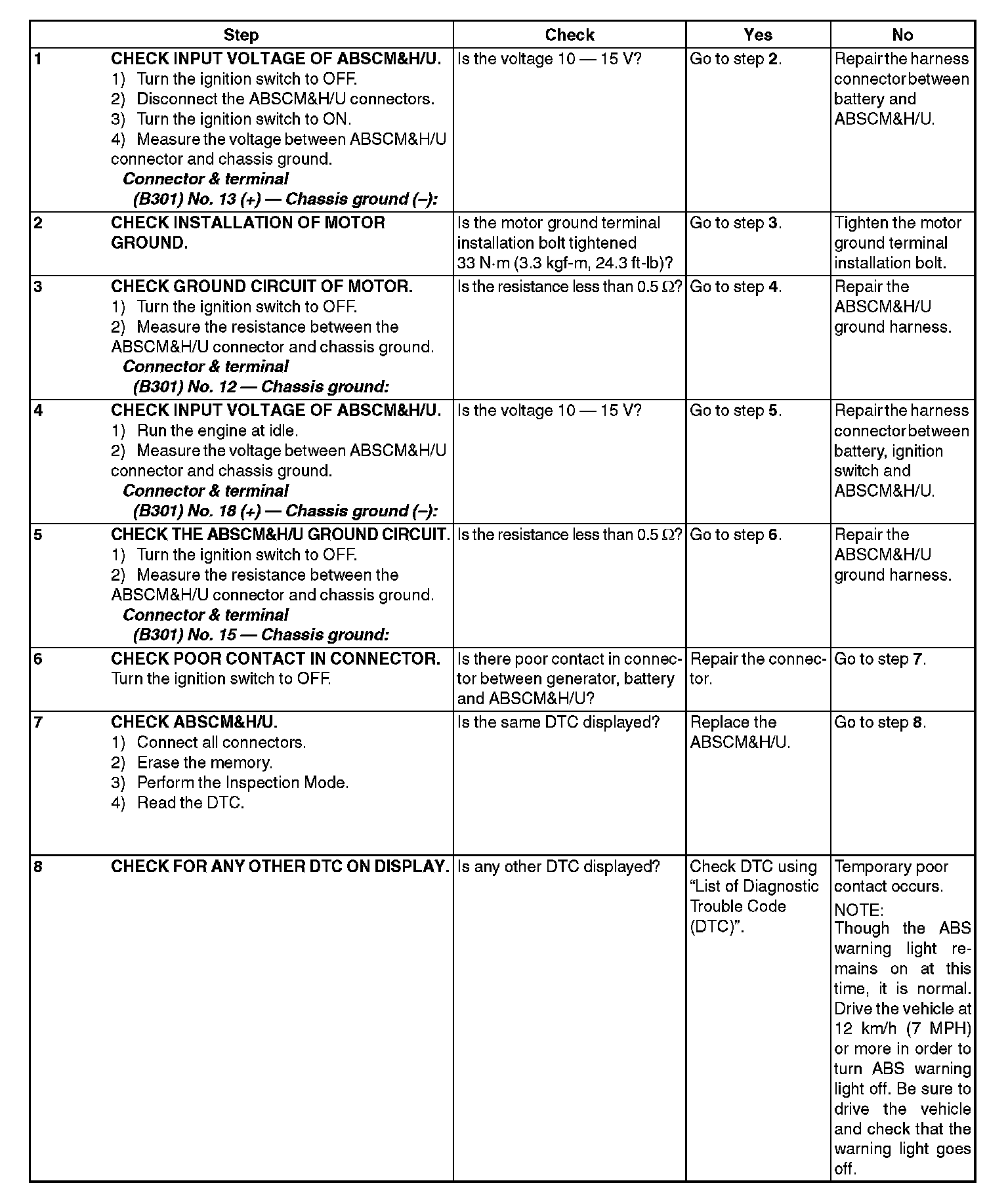

Step 1-Step 8:
