Home >> Subaru >> 2008 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C0072 >> Abnormal Yaw Rate Sensor Output

Abnormal Yaw Rate Sensor Output

DTC C0072 ABNORMAL YAW RATE SENSOR OUTPUT
DTC DETECTING CONDITION: Defective yaw rate sensor
TROUBLE SYMPTOM: VDC does not operate.

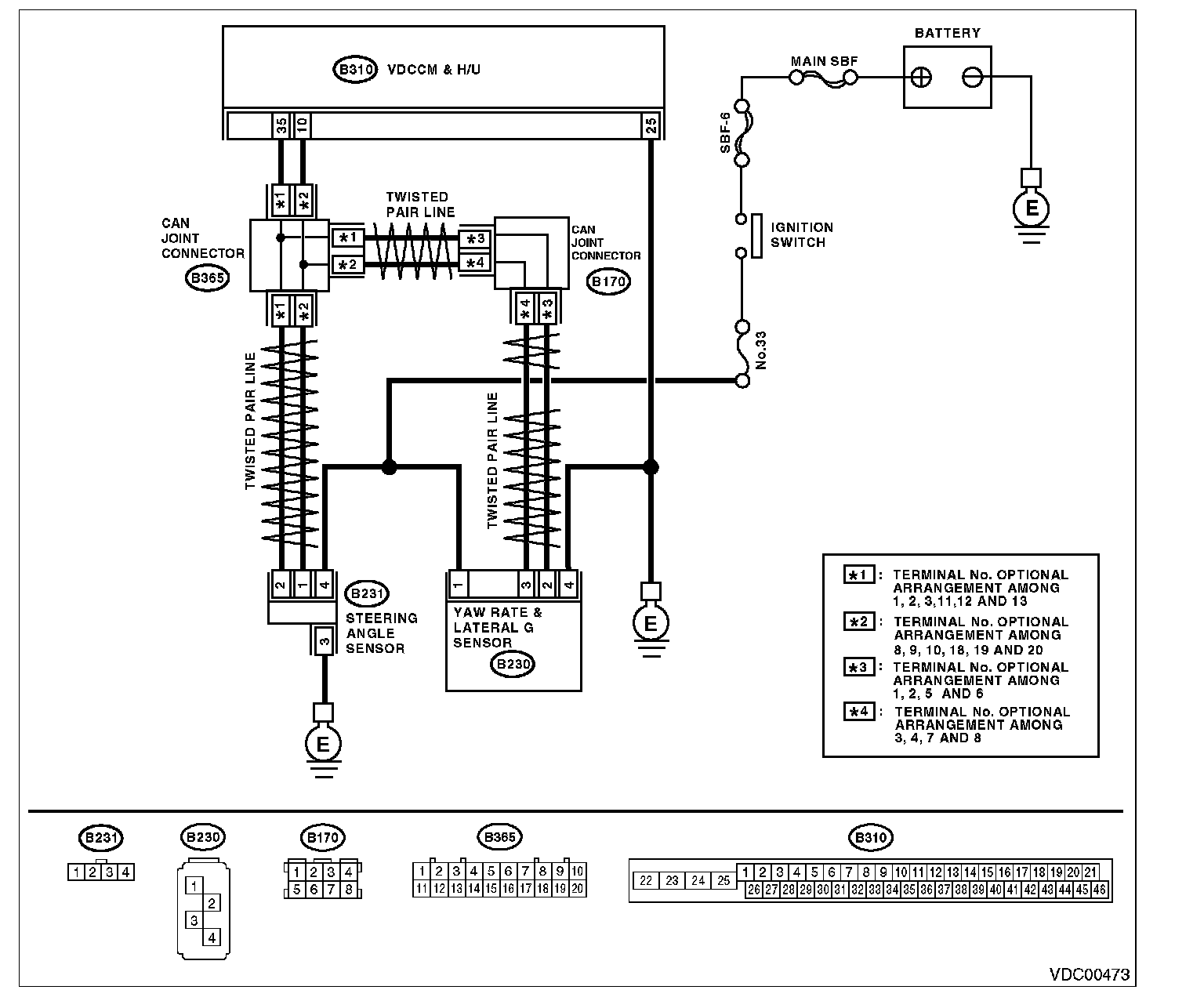

WIRING DIAGRAM:

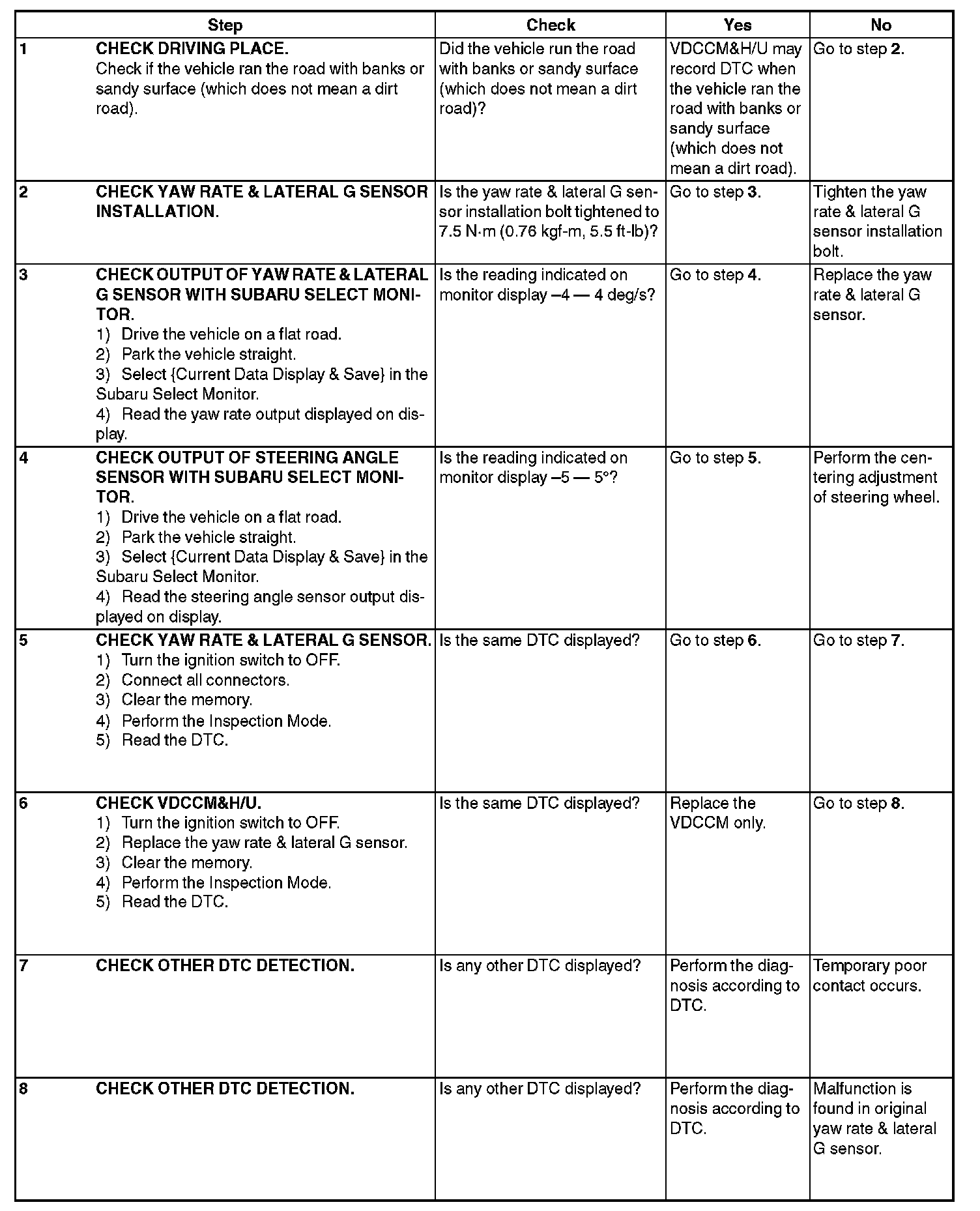

Step 1-Step 8:
