Steer Angle Sensor OP

DTC C0071 STEER ANGLE SENSOR OP
DTC DETECTING CONDITION: Signal does not come from steering angle sensor.
TROUBLE SYMPTOM: VDC does not operate.

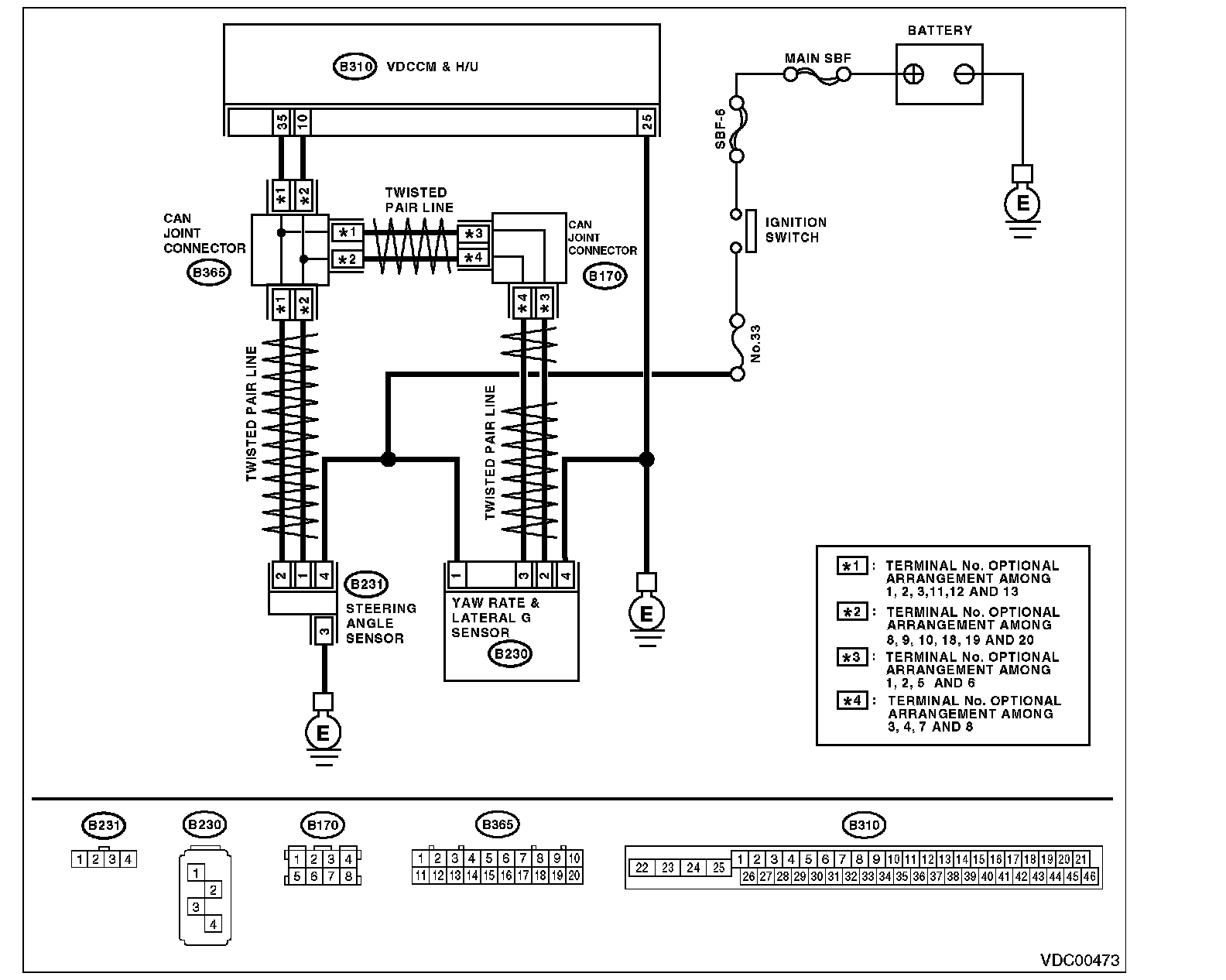

WIRING DIAGRAM:




Step 1:

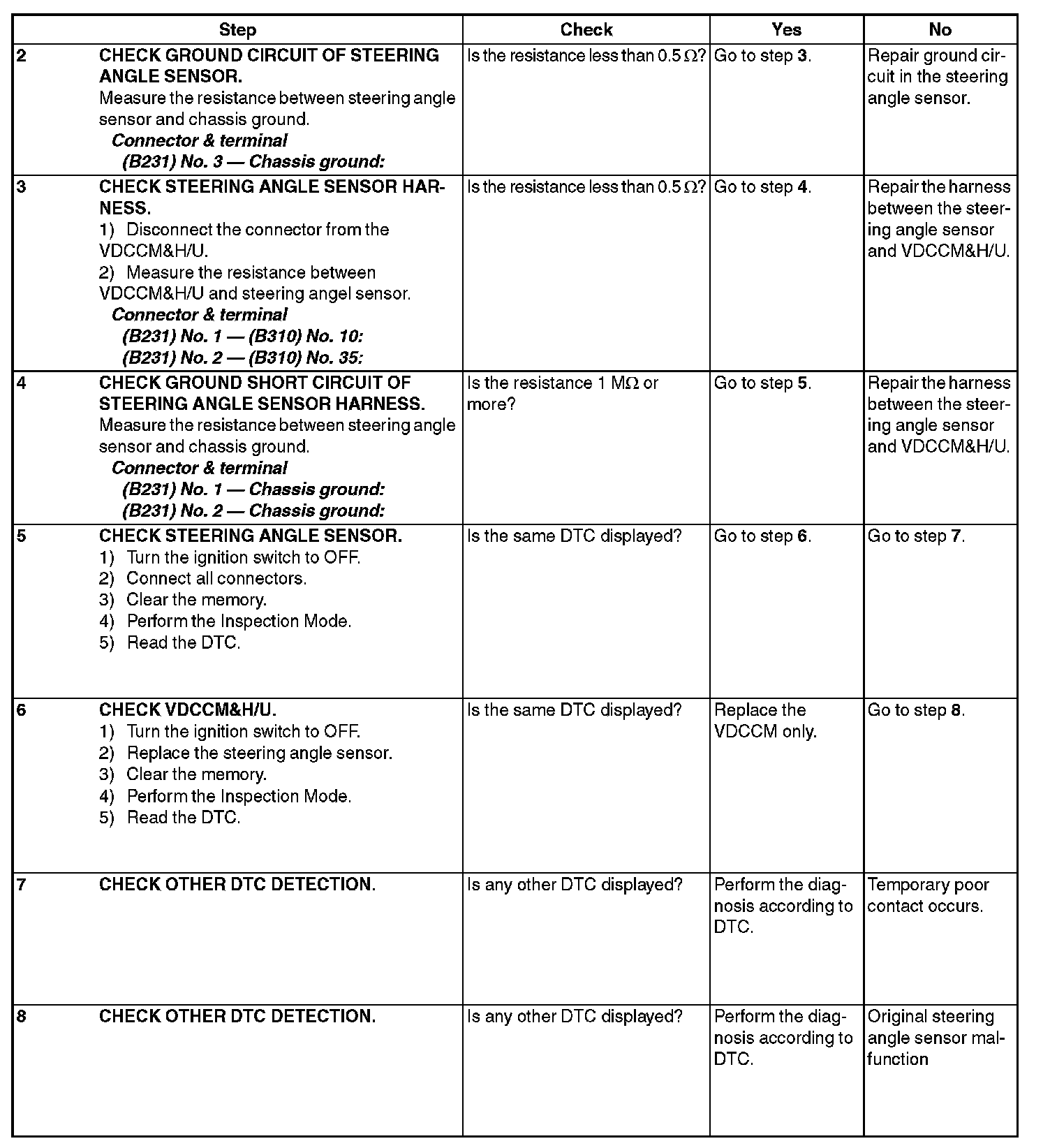

Step 2-Step 8:
