BLS Off Malfunction

DTC C0054 BLS OFF MALFUNCTION
DTC DETECTING CONDITION: Defective stop light switch
TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.
WIRING DIAGRAM:

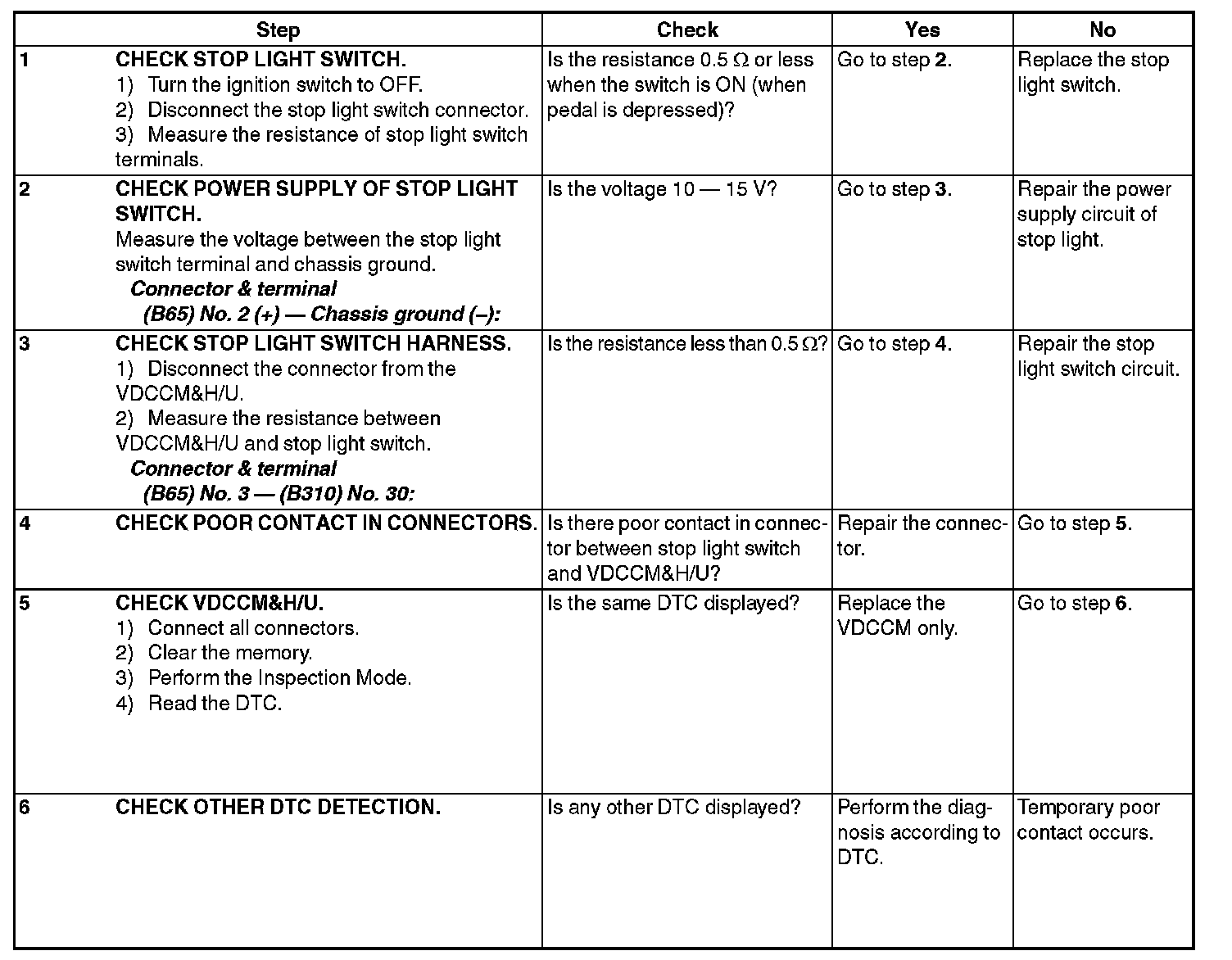

Step 1-Step 6:
