Motor and Motor Relay on Failure
DTC C0052 MOTOR AND MOTOR RELAY ON FAILUREDTC DETECTING CONDITION:
^ Defective motor relay
^ Defective harness connector
TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.
^ EBD may not operate.
WIRING DIAGRAM:

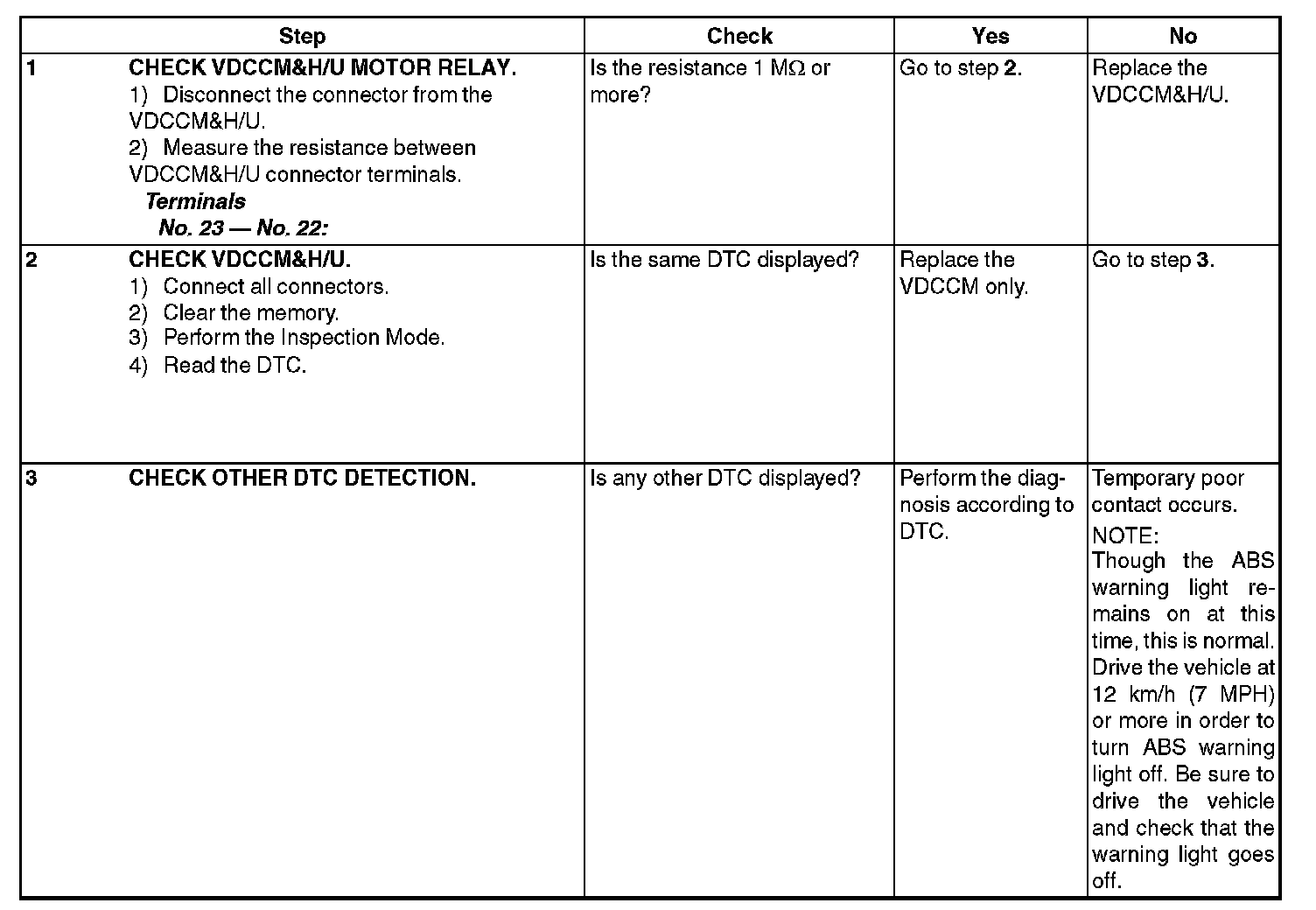

Step 1-Step 3:
