Motor and Motor Relay Off Failure
ADTC C0052 MOTOR AND MOTOR RELAY OFF FAILUREDTC DETECTING CONDITION:
^ Defective motor and motor relay
^ Defective harness connector
TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.
^ EBD may not operate.
WIRING DIAGRAM:

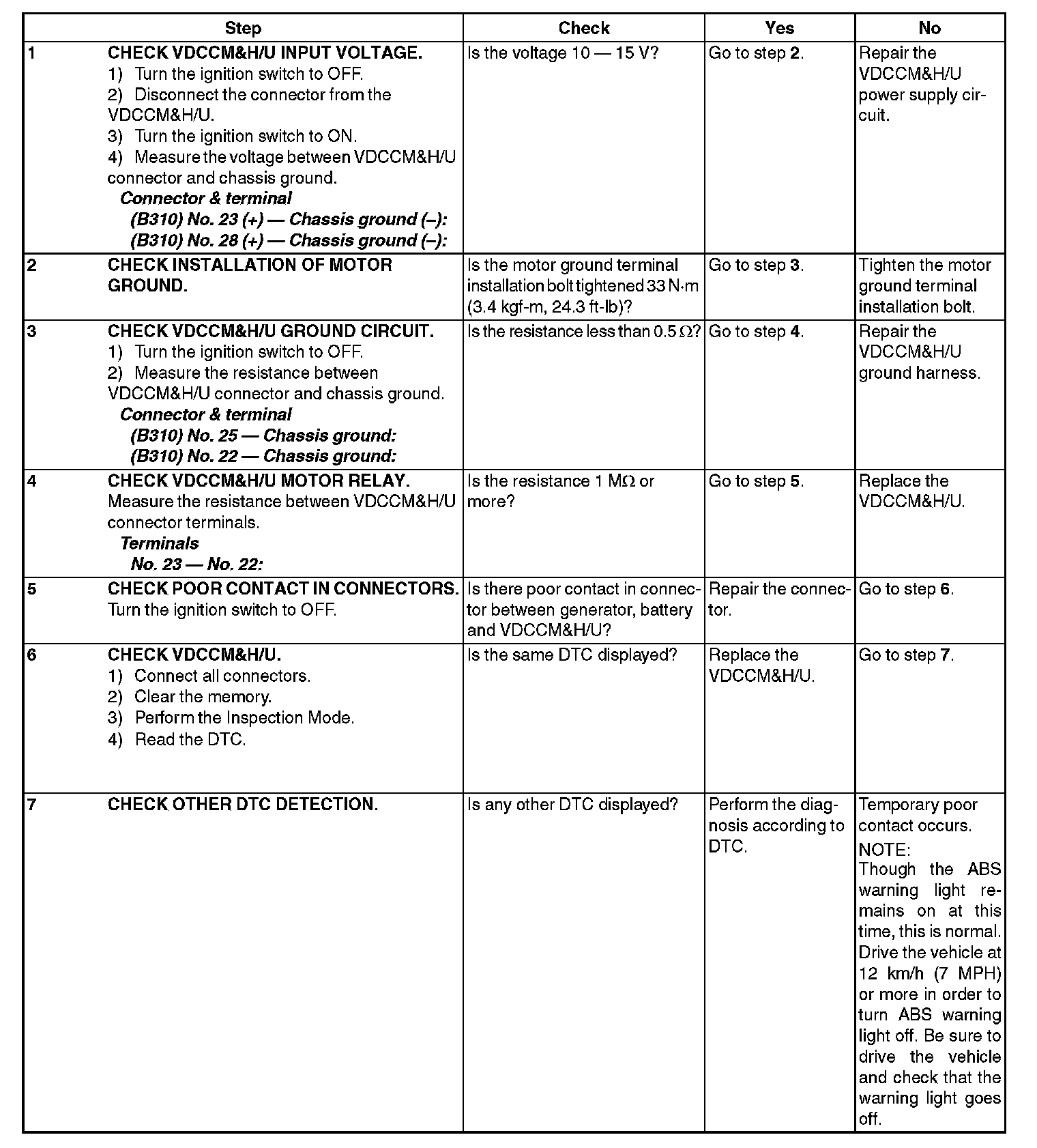

Step 1-Step 7:
