With 15" Wheel

  1. Lift-up the vehicle, and remove the front wheels.
  2. Remove the caliper body and the support from housing, and suspend it from strut using a wire.

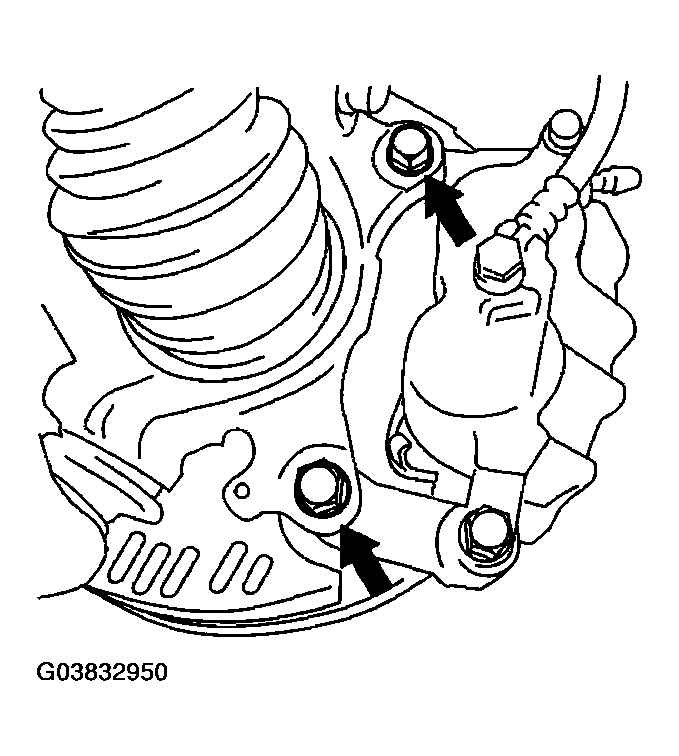

    Fig 1: Removing Caliper Body And Support From Housing (With 15" Wheel)
    G03832950Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the disc rotor.
    NOTE: If the disc rotor seizes up within hub, drive the disc rotor out by pushing with an 8 mm bolt in holes B on the rotor.
    Fig 2: View Of Disc Rotor (With 15" Wheel)
    G03832951Courtesy of SUBARU OF AMERICA, INC.
  4. Clean mud and foreign particles from the caliper body assembly and the support.
