Outback Base, Automatic
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams & Fuse/Relay Locations
>>
Turn Signal Light and Hazard Light System
>>
Wiring Diagram
Turn Signal Light and Hazard Light System: Wiring Diagram

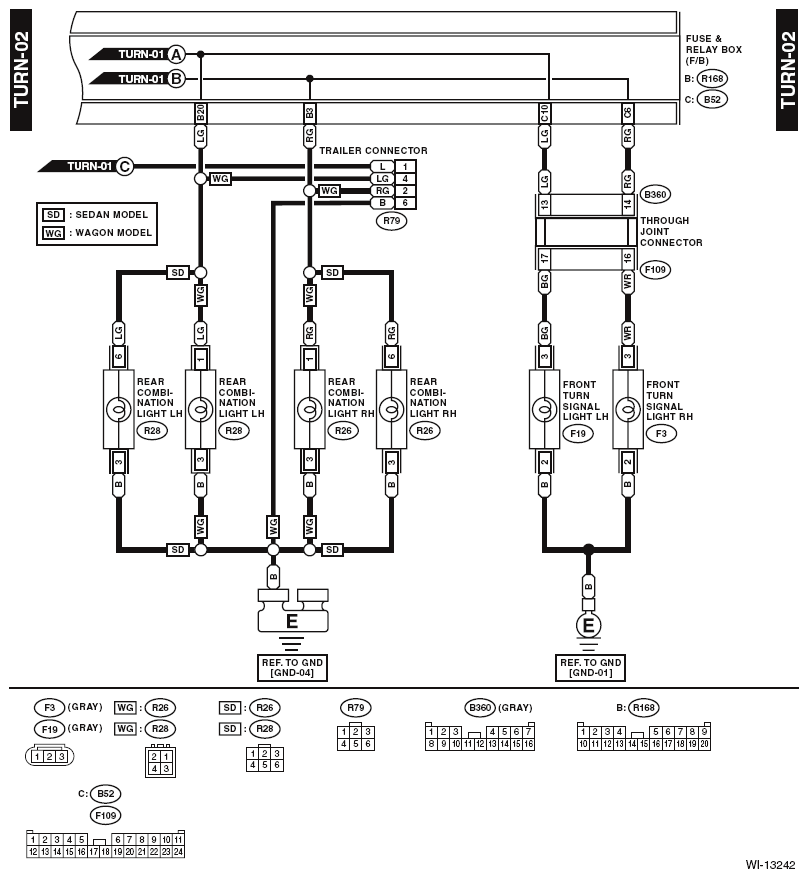

Fig 1: Turn Signal Light And Hazard Light System Wiring Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

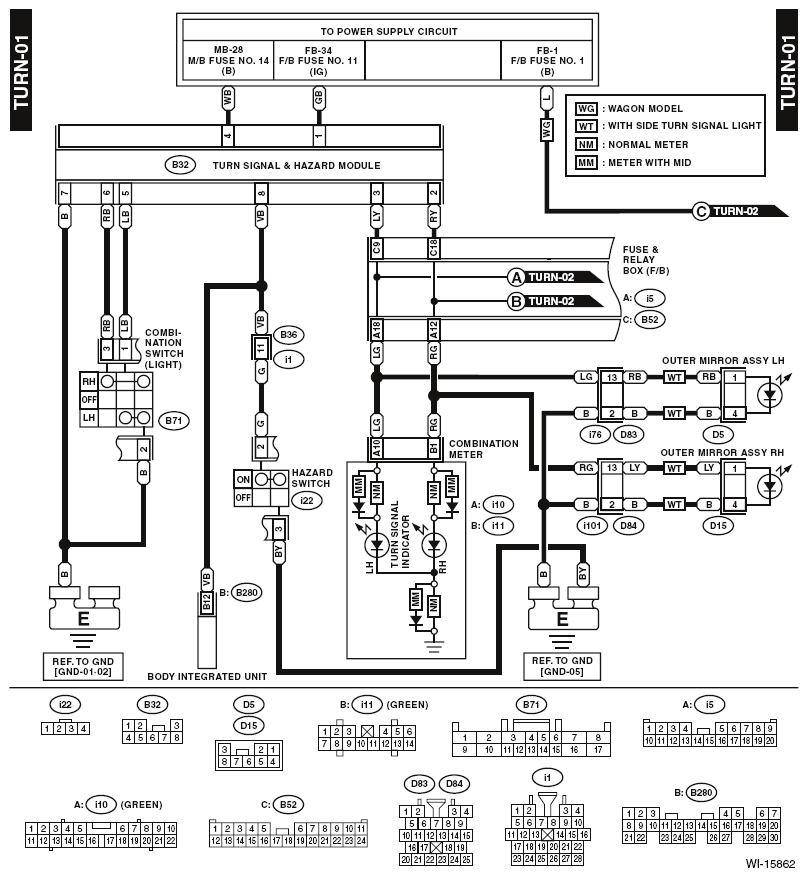

Fig 2: Turn Signal Light And Hazard Light System Wiring Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
