Body Ground

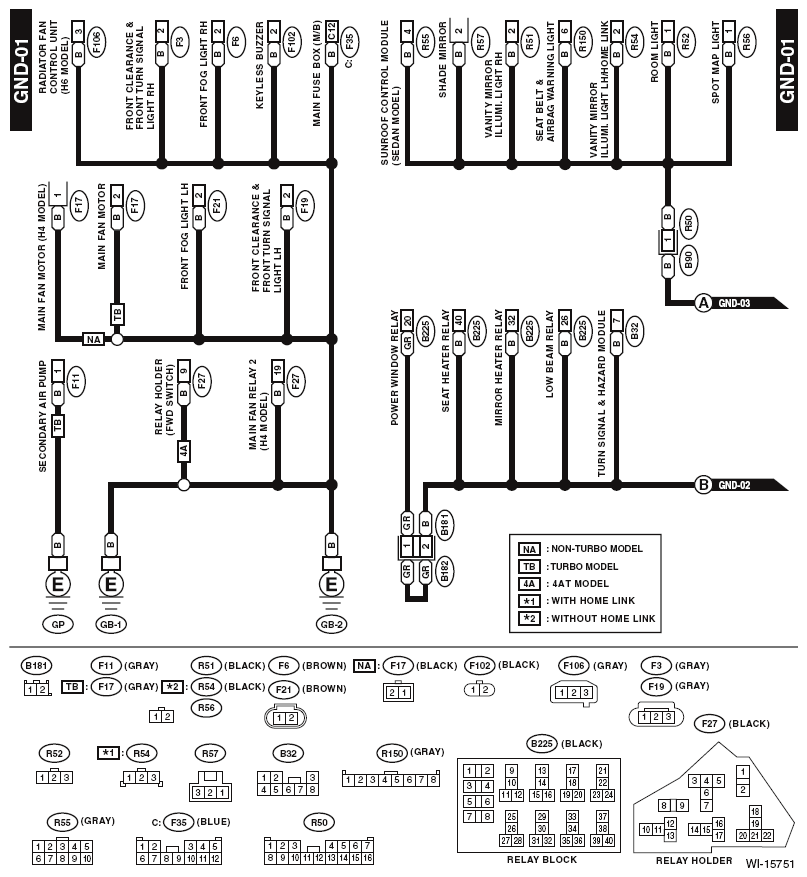

Fig 1: Body Ground Wiring Diagram (1 Of 6)

G11903812

Courtesy of SUBARU OF AMERICA, INC.

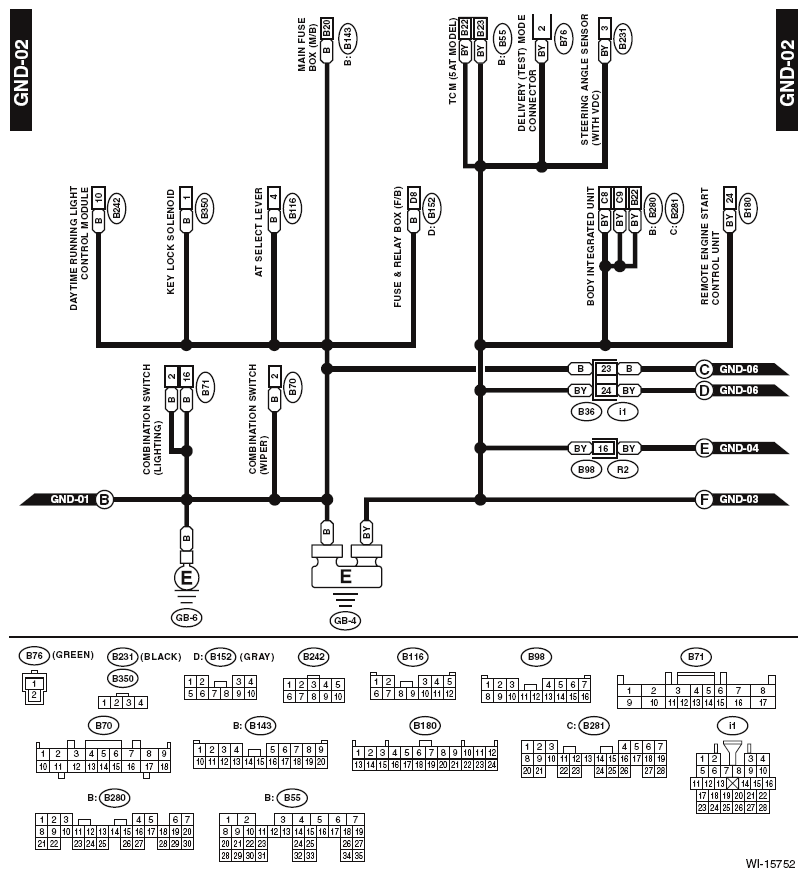

Fig 2: Body Ground Wiring Diagram (2 Of 6)

G11903813

Courtesy of SUBARU OF AMERICA, INC.

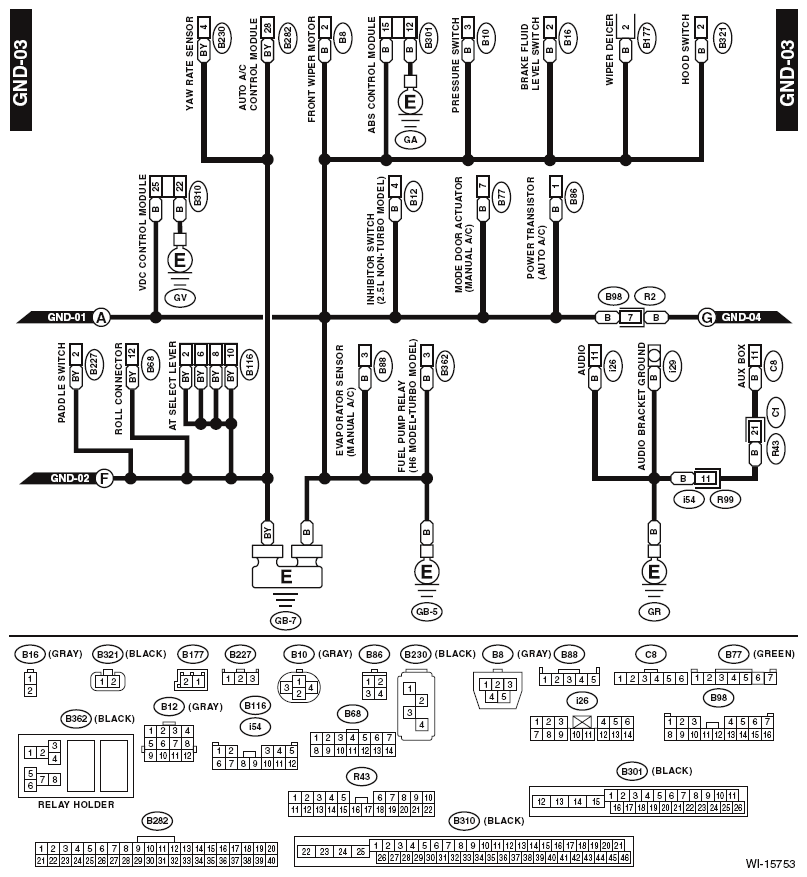

Fig 3: Body Ground Wiring Diagram (3 Of 6)

G11903814

Courtesy of SUBARU OF AMERICA, INC.

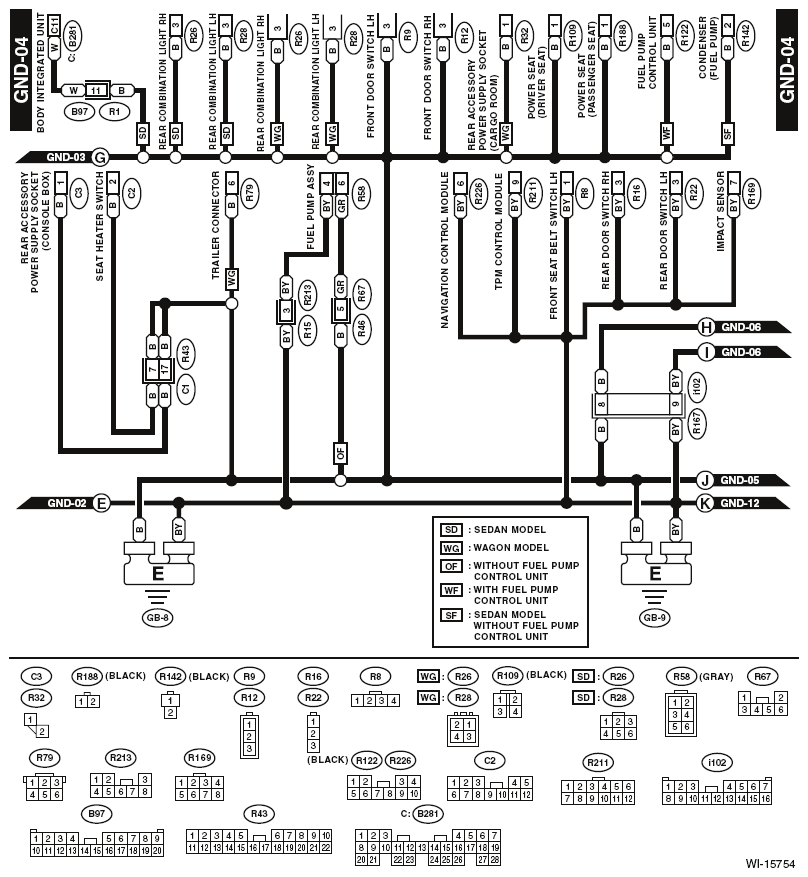

Fig 4: Body Ground Wiring Diagram (4 Of 6)

G11903815

Courtesy of SUBARU OF AMERICA, INC.

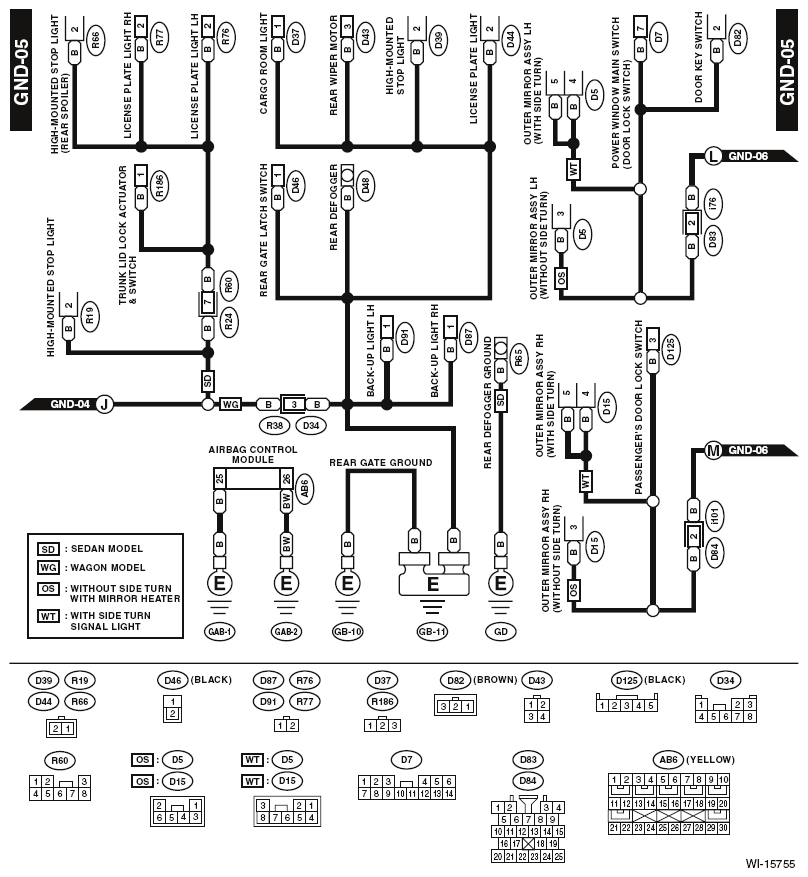

Fig 5: Body Ground Wiring Diagram (5 Of 6)

G11903816

Courtesy of SUBARU OF AMERICA, INC.

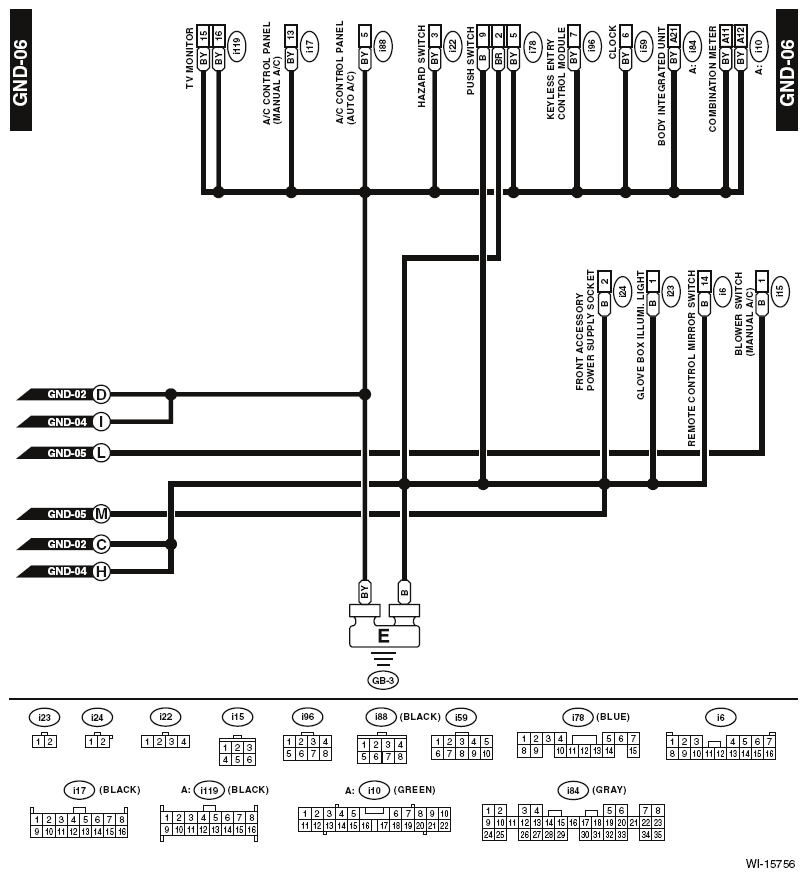

Fig 6: Body Ground Wiring Diagram (6 Of 6)

G11903817

Courtesy of SUBARU OF AMERICA, INC.
