Front Wiper and Washer System: Wiring Diagram

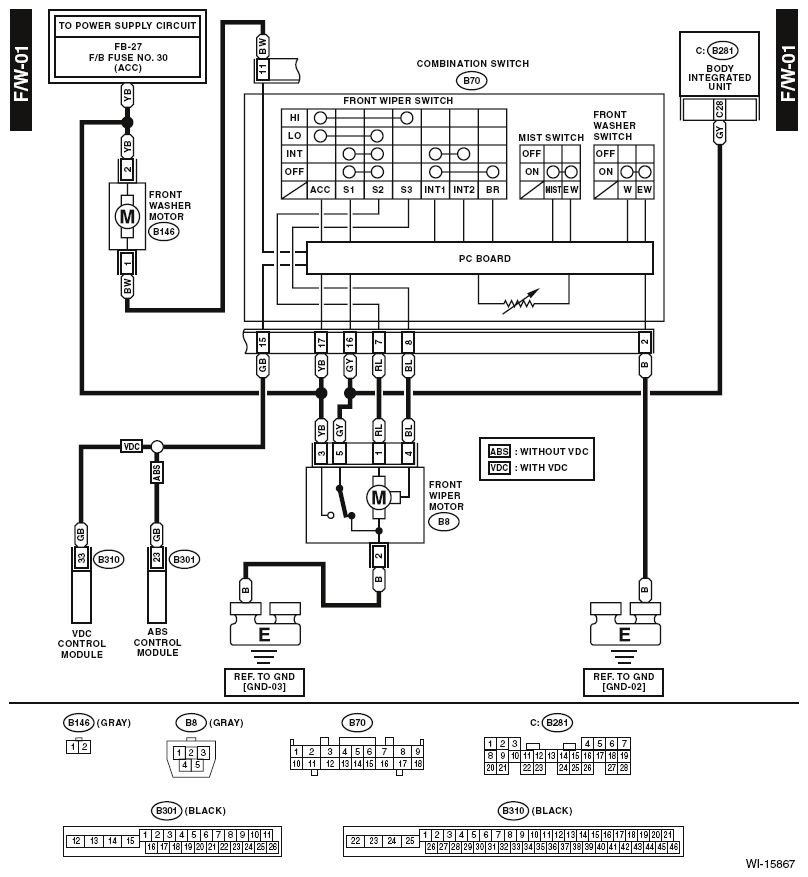

Fig 1: Front Wiper And Washer System Wiring Diagram

G11903965

Courtesy of SUBARU OF AMERICA, INC.
