Clearance Light and Illumination Light System: Wiring Diagram

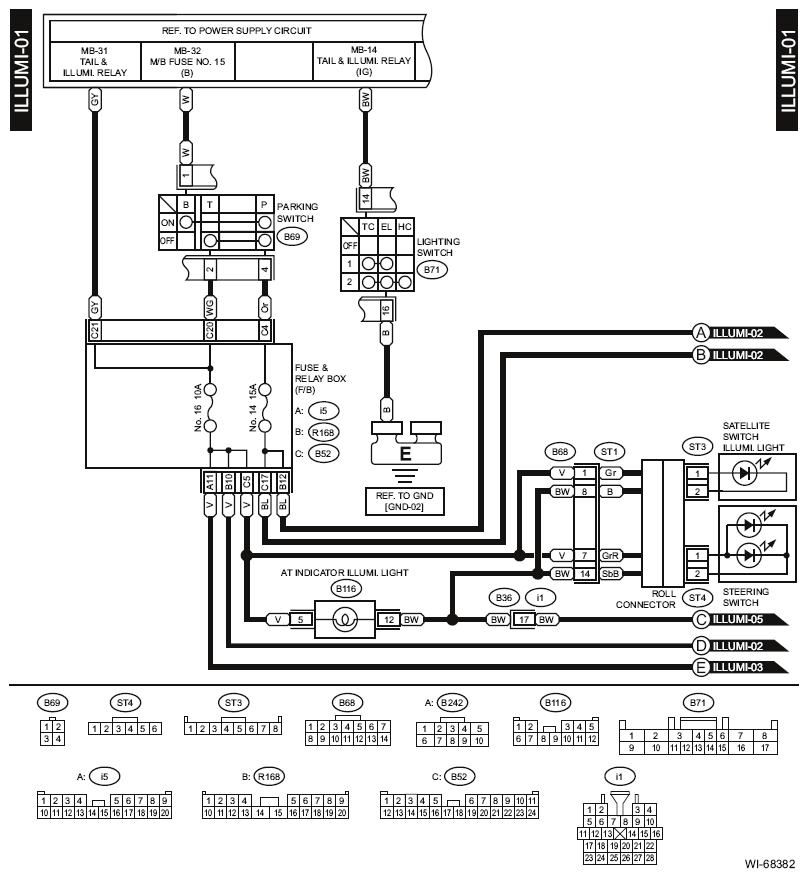

Fig 1: Clearance Light And Illumination Light System Wiring Diagram (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

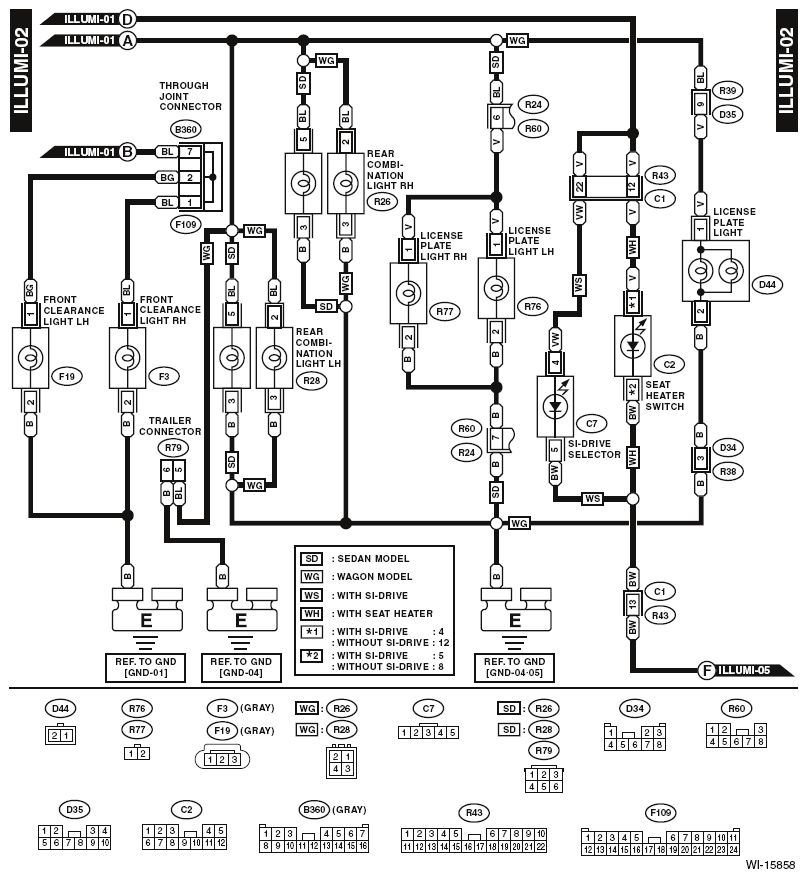

Fig 2: Clearance Light And Illumination Light System Wiring Diagram (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

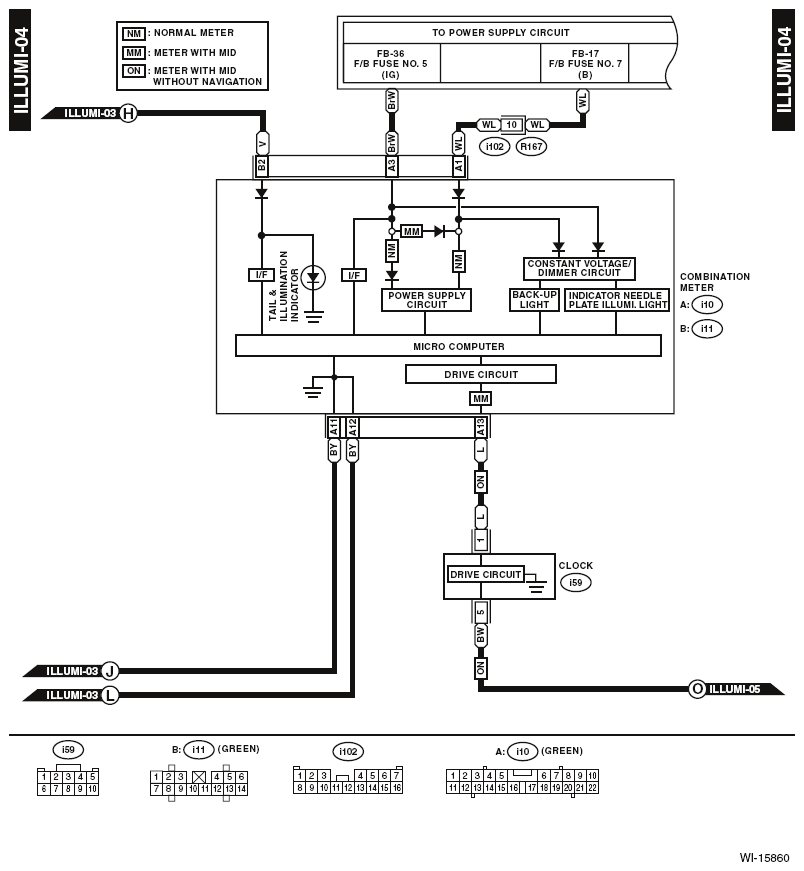

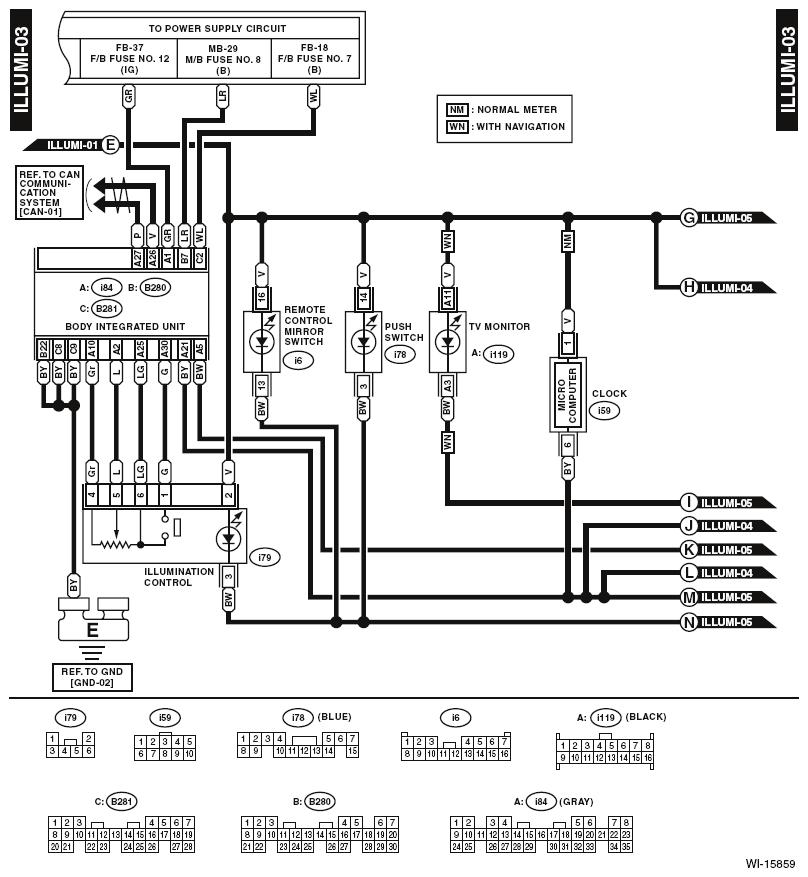

Fig 3: Clearance Light And Illumination Light System Wiring Diagram (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Clearance Light And Illumination Light System Wiring Diagram (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

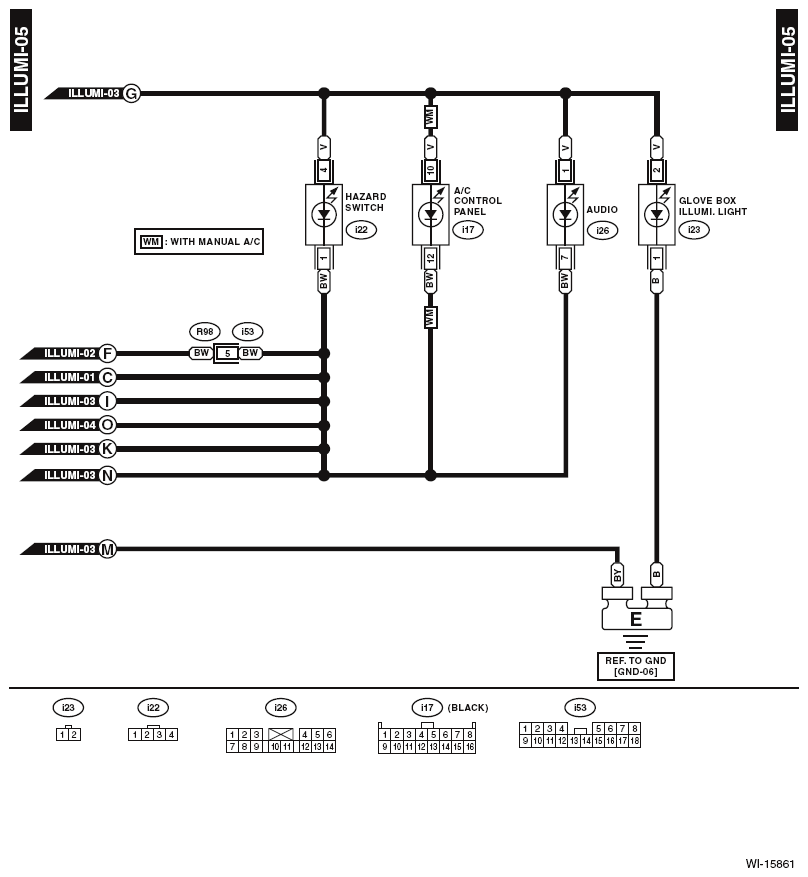

Fig 5: Clearance Light And Illumination Light System Wiring Diagram (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
