4AT Model (Transmission Serial No. 3966774 Or Earlier)

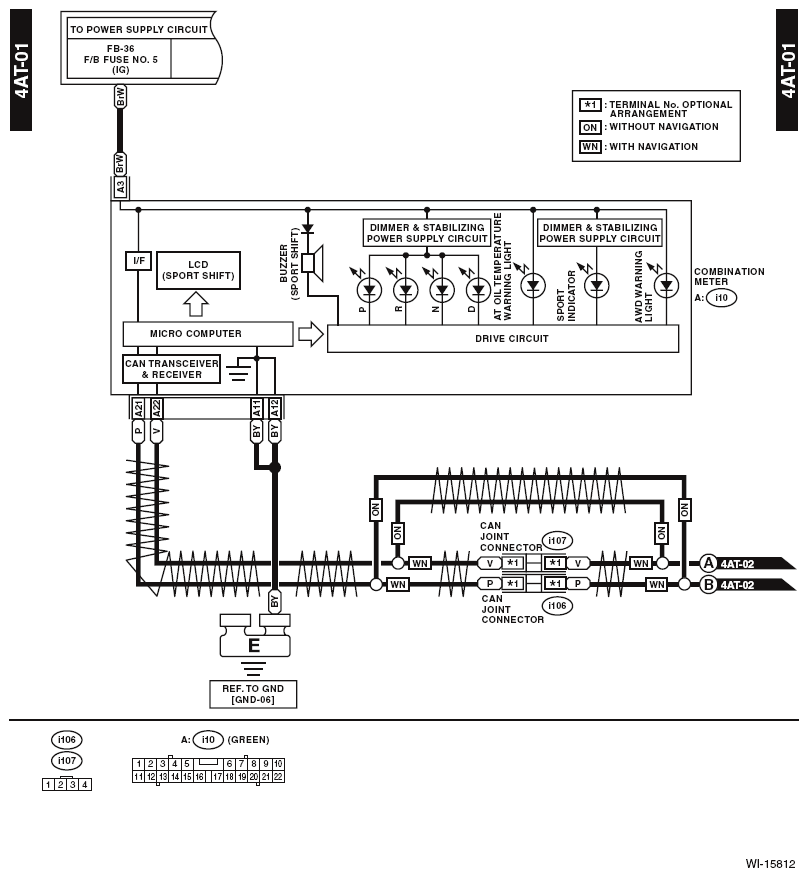

Fig 1: AT Control System Wiring Diagram - 4AT Model (Transmission Serial No. 3966774 And Earlier; 1 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

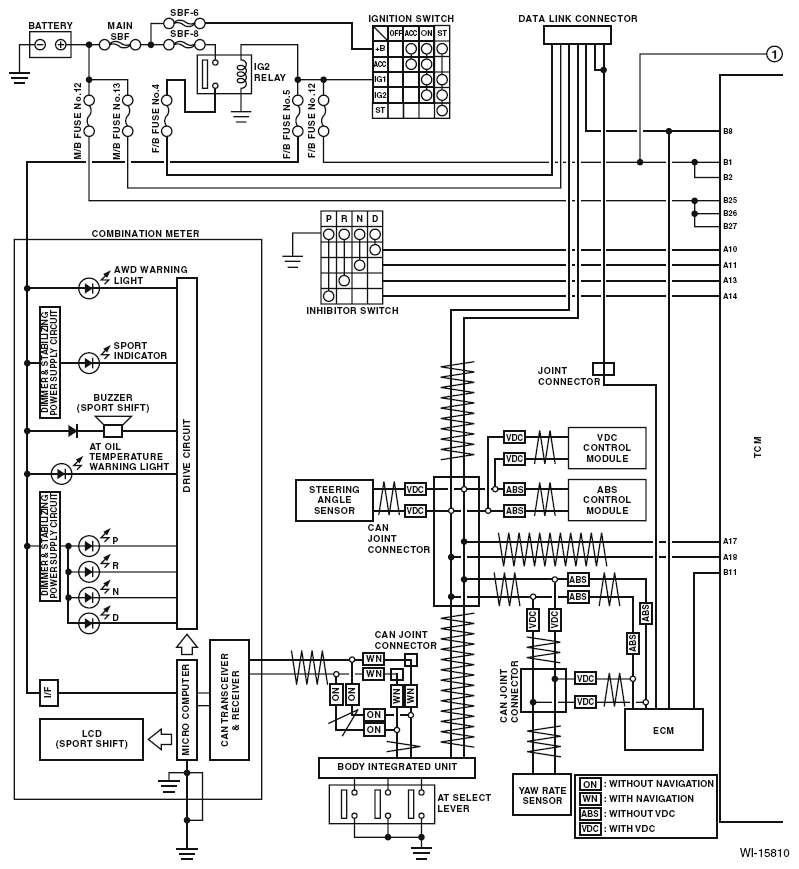

Fig 2: AT Control System Wiring Diagram - 4AT Model (Transmission Serial No. 3966774 And Earlier; 2 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

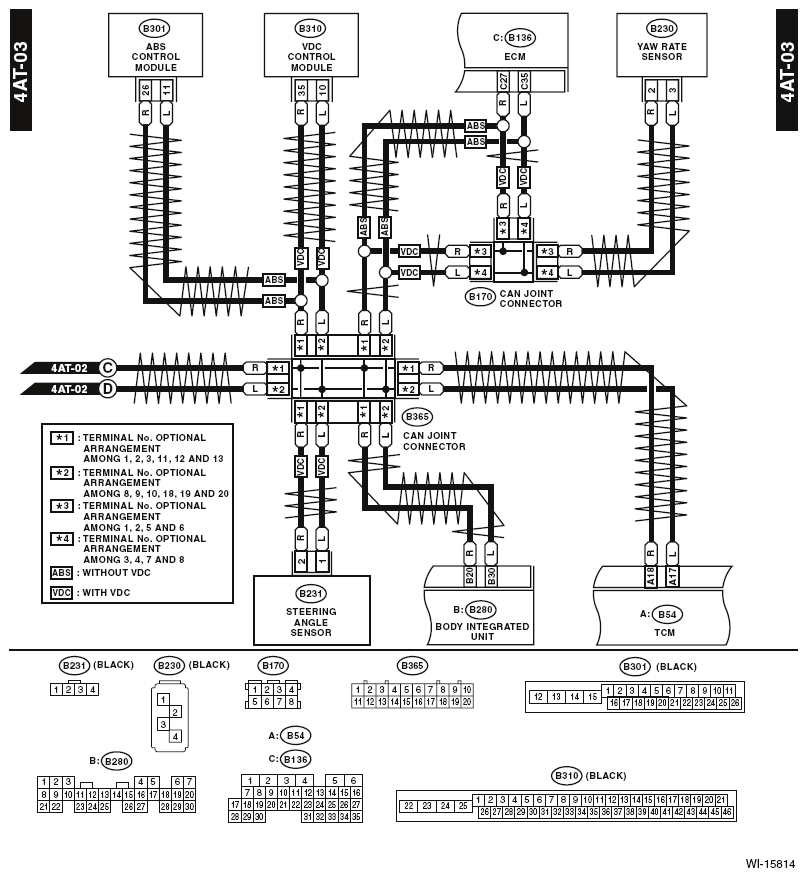

Fig 3: AT Control System Wiring Diagram - 4AT Model (Transmission Serial No. 3966774 And Earlier; 3 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

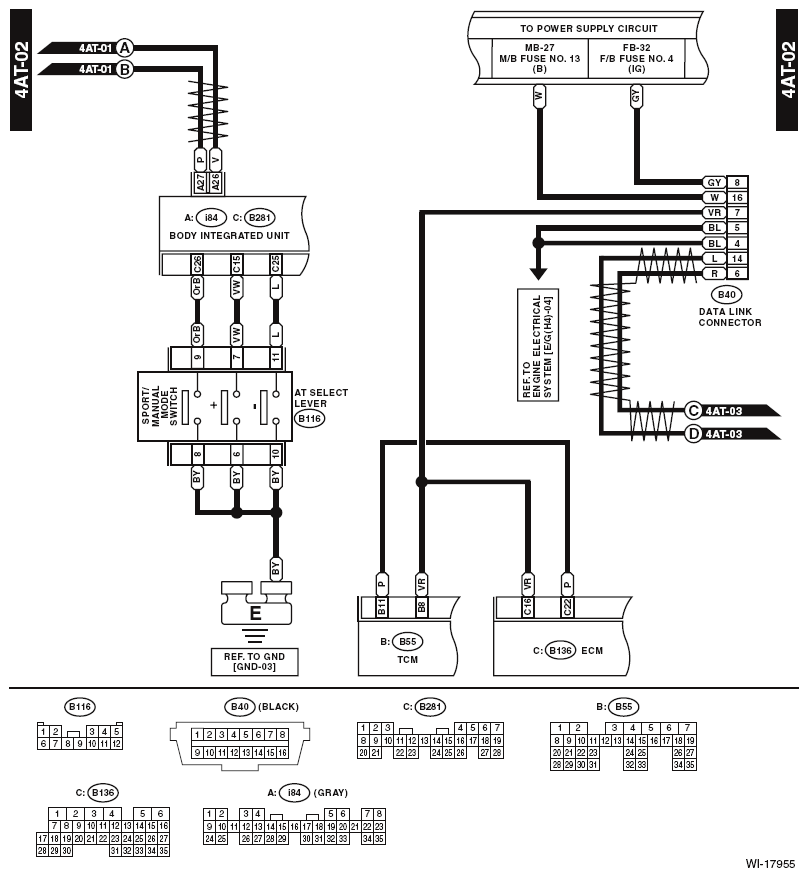

Fig 4: AT Control System Wiring Diagram - 4AT Model (Transmission Serial No. 3966774 And Earlier; 4 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

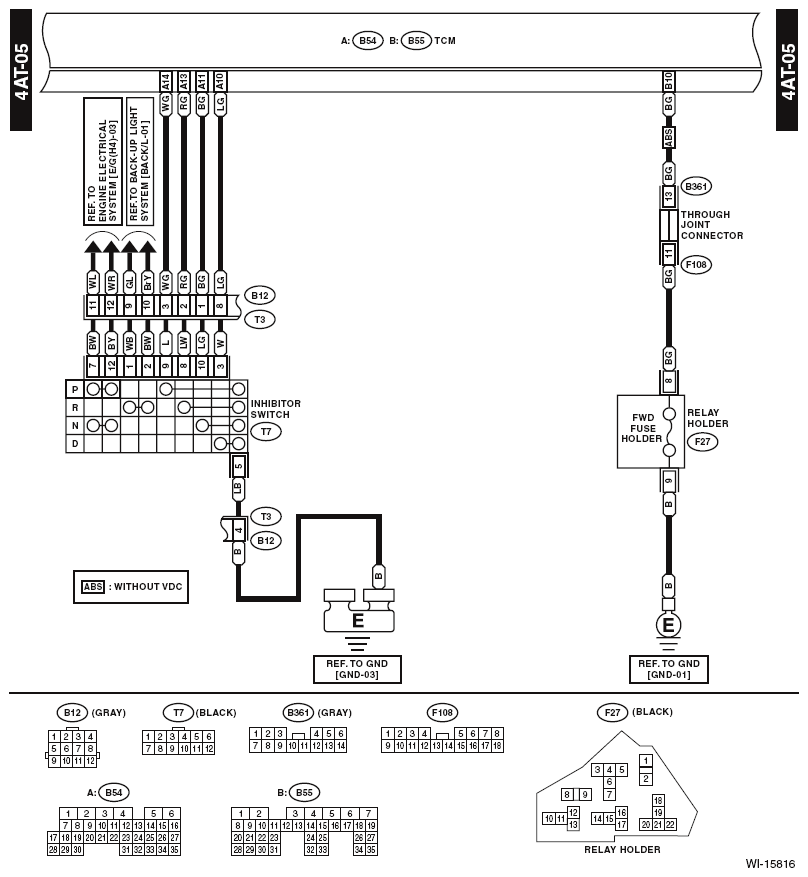

Fig 5: AT Control System Wiring Diagram - 4AT Model (Transmission Serial No. 3966774 And Earlier; 5 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: AT Control System Wiring Diagram - 4AT Model (Transmission Serial No. 3966774 And Earlier; 6 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: AT Control System Wiring Diagram - 4AT Model (Transmission Serial No. 3966774 And Earlier; 7 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: AT Control System Wiring Diagram - 4AT Model (Transmission Serial No. 3966774 And Earlier; 8 Of 8)

Courtesy of SUBARU OF AMERICA, INC.
