Rear Wiring Harness and Rear Gate Cord: Location

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
R15	8	(1)	C-1	R213	Fuel cord
R22	3	(1)	C-1		Rear door switch LH
R26	4	(1)	C-5		Rear combination light RH
R28	4	(1)	C-3		Rear combination light LH
R32	2	(1)	C-2		Rear accessory power supply socket (Luggage room)
R38	8	(1)	C-4	D34	Rear gate cord
R39	10	(1)	C-4	D35
R46	6	(1)	D-1	R67	Fuel cord
R47	3	Black	D-4		Fuel tank pressure sensor
R58	6	Gray	D-2		Fuel pump assembly
R59	2	(1)	D-2		Fuel sub level sensor
R67	6	(1)	D-2	R46	Rear wiring harness
R68	2	Dark gray	D-3		Pressure control solenoid valve
R79	6	(1)	C-2		Trailer connector
R97	1	(1)	C-2		Antenna amplifier
R122	10	Black	C-2		Fuel pump control unit
R144	2	Gray	D-3		Drain valve
R213	8	(1)	C-1	R15	Rear wiring harness
(1) White or natural color

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
D34	8	(1)	C-4	R38	Rear wiring harness
D35	10	(1)	C-4	R39
D37	3	(1)	B-3		Luggage room light
D39	2	(1)	B-3		High-mounted stop light
D43	4	(1)	B-4		Rear wiper motor
D44	2	(1)	A-5		License plate light
D46	2	Black	A-4		Rear gate latch switch
D47	2	Gray	A-5		Rear gate lock actuator
D48	1	Black	B-3		Rear defogger
D87	2	Gray	A-5		Back-up light RH
D89	1	(1)	B-4		Rear defogger
D91	2	Gray	A-4		Back-up light LH
(1) White or natural color

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
AB31	2	Black	C-2	AB39	Curtain airbag module LH
AB32	4	Yellow	C-1		Curtain airbag sensor LH
AB33	2	Black	C-3	AB40	Curtain airbag module RH

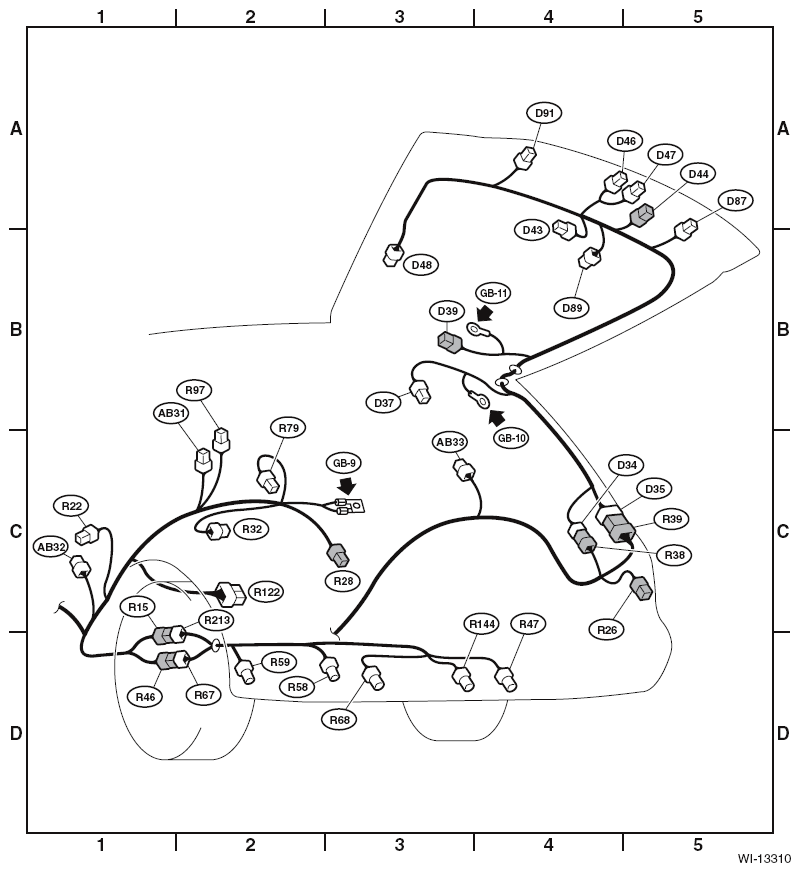

Fig 1: Rear Wiring Harness And Rear Gate Cord Location

Courtesy of SUBARU OF AMERICA, INC.
