2.5 L (Non-Turbo) Model

Connector Connecting to
No. Pole Color Area No. Description
E2 54 Black A-3 B21 Bulkhead wiring harness
E4 2 Black A-2   Purge control solenoid valve
E5 2 Light gray B-1   Fuel injector No. 1
E6 2 Light gray A-2   Fuel injector No. 3
E8 2 Black B-2   Engine coolant temperature sensor
E10 2 Light gray B-3   Crankshaft position sensor
E11 1 - B-2   Oil pressure switch
E12 4 Dark gray A-2   Ignition coil & ignitor assembly
E14 2 Gray B-4   Knock sensor
E15 2 Gray B-4   Camshaft position sensor
E16 2 Light gray B-4   Fuel injector No. 2
E17 2 Light gray B-4   Fuel injector No. 4
E18 6 Dark gray B-4   EGR valve
E19 1 (1) B-2   Power steering oil pressure switch
E21 3 Black A-3   Manifold absolute pressure sensor
E22 6 Dark gray A-1   Front oxygen (A/F) sensor
E23 4 Dark gray A-1   Rear oxygen sensor
E57 6 Black A-3   Electronic throttle control
E61 2 Dark gray A-4   PCV diagnosis connector
E67 2 Blue A-2   Oil switching solenoid valve RH
E68 2 Blue B-5   Oil switching solenoid valve LH
E71 1 Gray A-3   Variable valve lift diagnosis oil pressure switch RH
E72 1 Gray B-5   Variable valve lift diagnosis oil pressure switch LH
E75 2 Black A-3   Oil temperature sensor
(1) White or natural color
MT MODEL

Connector Connecting to
No. Pole Color Area No. Description
T1 2 Gray D-2 B24 Bulkhead wiring harness
T2 2 Brown D-2 B25
AT MODEL

Connector Connecting to
No. Pole Color Area No. Description
T3 12 Black D-4 B12 Bulkhead wiring harness
T4 20 Gray D-4 B11
T7 12 Black D-5   Inhibitor switch (transmission serial No. 4078112 or earlier)
  9 Black D-5   Inhibitor switch (transmission serial No. 4078113 or later)

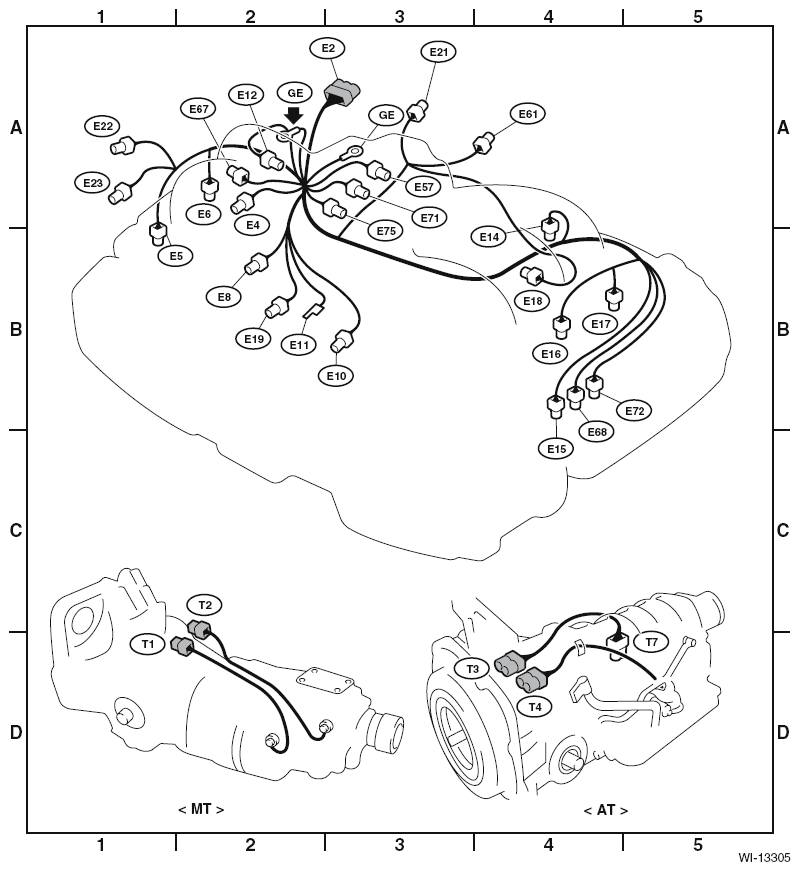

Fig 1: Engine Wiring Harness And Transmission Cord Location (2.5 L Non-Turbo Model)
G11902000Courtesy of SUBARU OF AMERICA, INC.
