(Turbo) Model

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

E2

54

Black

A-2

B21

Bulkhead wiring harness

E4

2

Black

B-2

Purge control solenoid valve 1

E5

2

Dark gray

B-2

Fuel injector No. 1

E6

2

Dark gray

B-1

Fuel injector No. 3

E8

2

Black

B-2

Engine coolant temperature sensor

E10

2

Light gray

B-3

Crankshaft position sensor

E11

1

-

B-2

Oil pressure switch

E14

2

Light gray

B-3

Knock sensor

E16

2

Dark gray

B-4

Fuel injector No. 2

E17

2

Dark gray

B-5

Fuel injector No. 4

E19

1

⁽¹⁾

B-2

Power steering oil pressure switch

E21

3

Black

A-3

Manifold absolute pressure sensor

E31

3

⁽¹⁾

B-2

Ignition coil No. 1

E32

3

⁽¹⁾

B-4

Ignition coil No. 2

E33

3

Black

A-2

Ignition coil No. 3

E34

3

Black

B-4

Ignition coil No. 4

E35

3

Light gray

A-4

Camshaft position sensor LH

E36

3

Light gray

A-2

Camshaft position sensor RH

E37

2

Blue

B-3

Oil flow control solenoid valve LH

E38

2

Blue

B-1

Oil flow control solenoid valve RH

E40

2

Black

B-4

Secondary air combination valve LH

E41

6

Black

B-2

Secondary air combination valve RH

E51

5

Light gray

B-4

Tumble generator valve ASSY LH

E52

2

Black

A-3

Purge control solenoid valve 2

E55

5

Light gray

A-1

Tumble generator valve ASSY RH

E57

6

Black

A-3

Electronic throttle control

E64

2

Blue

A-3

Wastegate control solenoid valve

E79

4

⁽¹⁾

B-2

Front oxygen (A/F) sensor

E80

2

Dark gray

B-2

Leak diagnosis connector

⁽¹⁾	White or natural color

MT MODEL

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

T1

2

Gray

D-2

T13

Transmission harness (5MT model)

⁽¹⁾

D-2

T13

Transmission harness (6MT model)

T2

2

Brown

D-2

T12

Transmission harness (5MT model)

Black

D-2

T12

Transmission harness (6MT model)

T5

4

Green

C-1

B19

Bulkhead wiring harness

T6

4

Dark gray

D-2

Rear oxygen sensor

T9

4

Gray

C-1

B128

Bulkhead wiring harness

T12

2

Brown

D-2

Neutral position switch (5MT model)

Black

Neutral position switch (6MT model)

T13

2

Gray

D-2

Back-up light switch (5MT model)

⁽¹⁾

Back-up light switch (6MT model)

⁽¹⁾	White or natural color

AT MODEL

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
T3	8	Black	D-4	B12	Bulkhead wiring harness
T4	20	Gray	D-4	B11
T5	4	Green	C-3	B19
T6	4	Dark gray	D-5		Rear oxygen sensor

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
AT1	3	Black	D-5		Turbine speed sensor 1
AT4	3	Black	C-5		Rear vehicle speed sensor

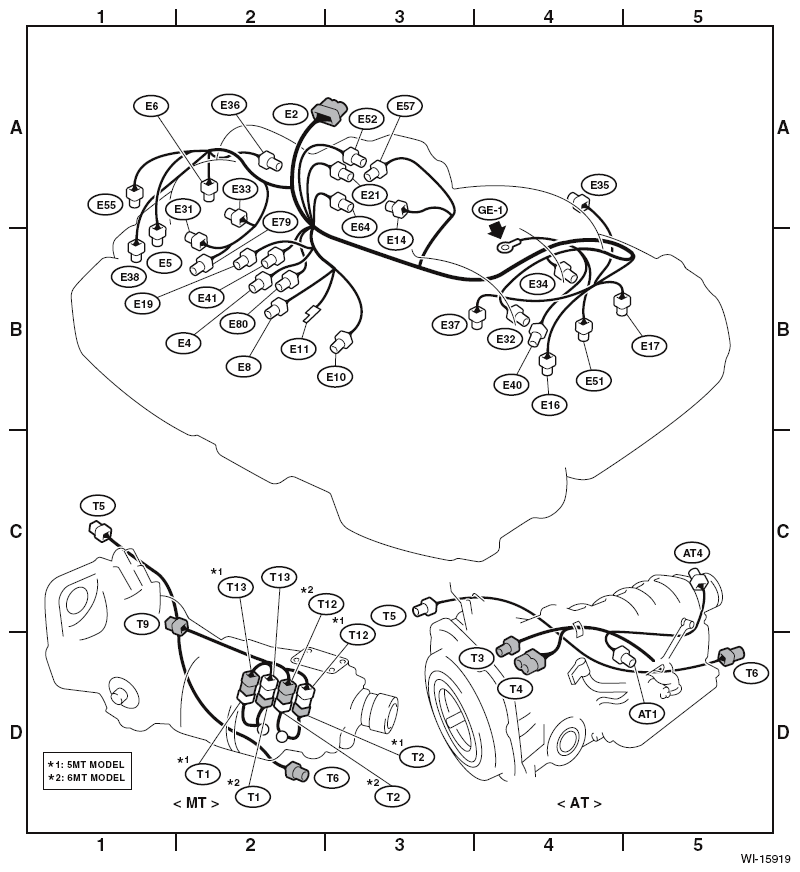

Fig 1: Engine Wiring Harness And Transmission Cord Location (Turbo Model)

G11904028

Courtesy of SUBARU OF AMERICA, INC.
