With Fuel Gauge Ambient Air Temperature Residual Driven Display

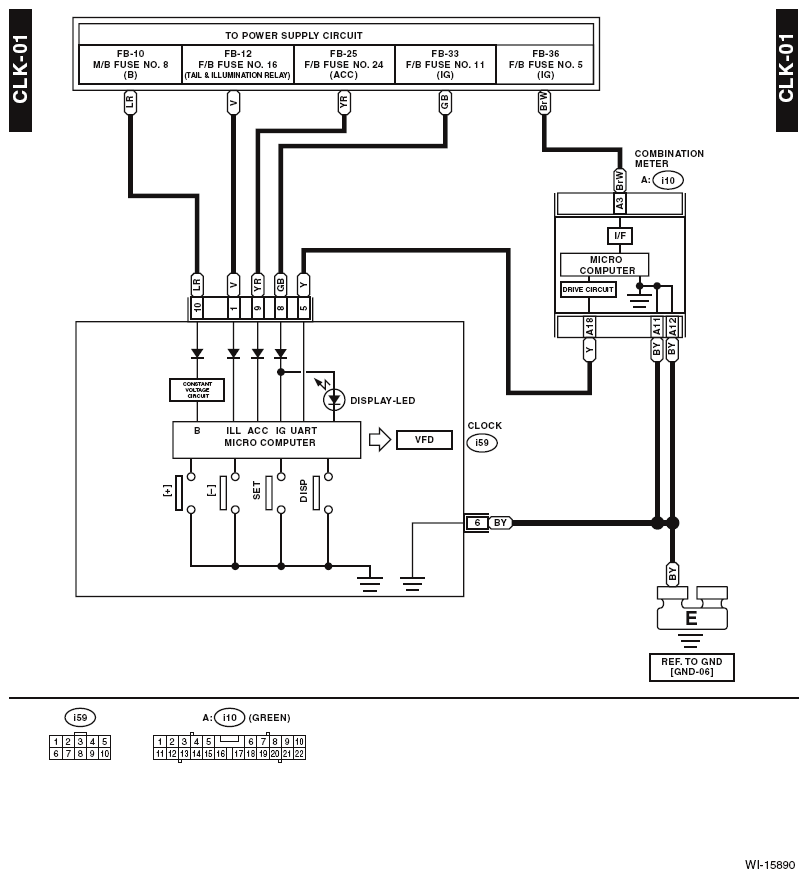

Fig 1: Clock System Wiring Diagram - With Fuel Gauge Ambient Air Temperature Residual Driven Display

G11903994

Courtesy of SUBARU OF AMERICA, INC.
