Rear Brake Pad: Removal

  1. Lift-up the vehicle, and then remove the rear wheels.
  2. Remove the caliper bolt.
    Fig 1: Removing Caliper Bolt
    G03832971Courtesy of SUBARU OF AMERICA, INC.
  3. Raise the caliper body and support it.
    NOTE: Do not disconnect the brake hose from caliper body.
  4. Remove the pad.
NOTE: If the brake pad is difficult to remove, use the same procedure as for front disc brake pad.

<Ref. to , REMOVAL , Front Brake Pad.>

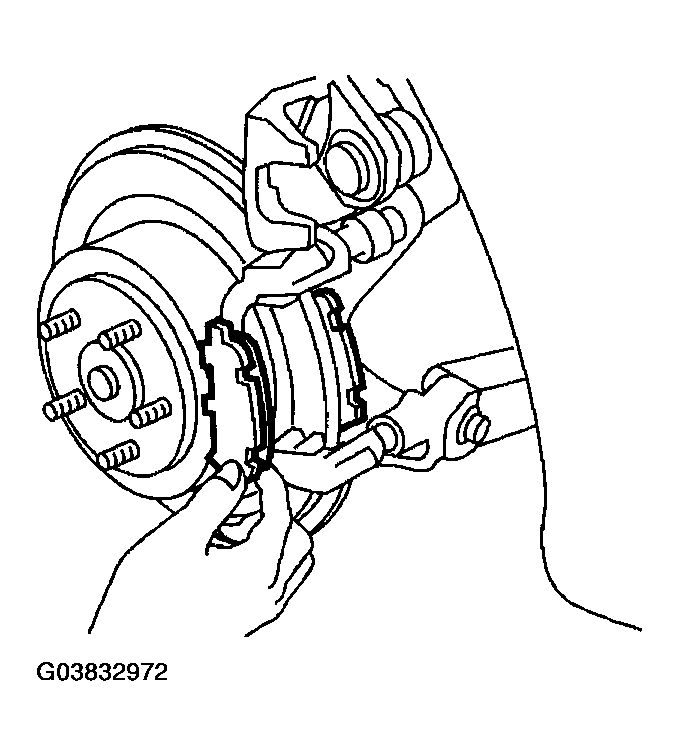

Fig 2: Removing Brake Pad
G03832972Courtesy of SUBARU OF AMERICA, INC.
