At Model

  1. Remove the steering shaft.
  2. Disconnect the connectors (stop light switch) from pedal bracket.
  3. Remove the clevis pin which secures lever to push rod.
  4. Remove the bolts and nuts which secure pedal bracket.

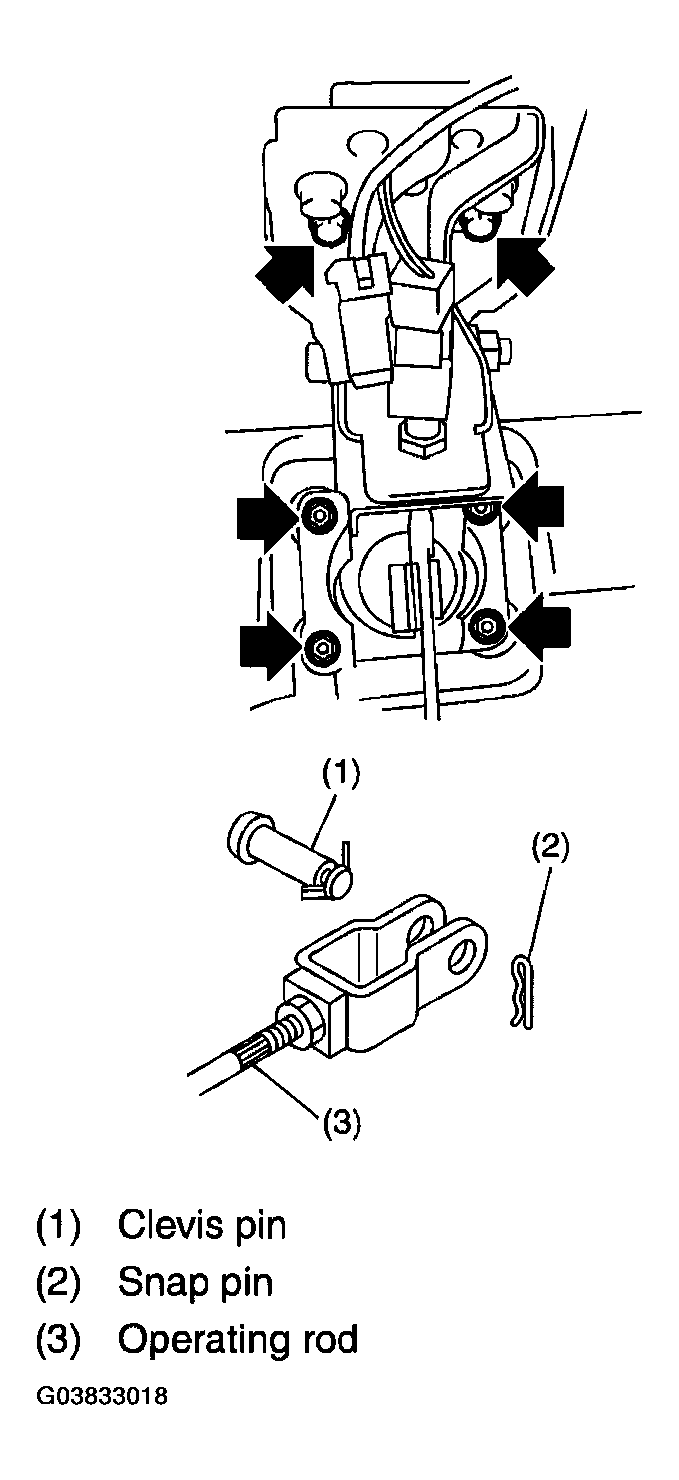

Fig 1: Removing Bolts And Nuts Securing Pedal Bracket (A/T)
G03833018Courtesy of SUBARU OF AMERICA, INC.
