Rear Brake Hose

  1. Remove the union bolt from rear brake caliper.

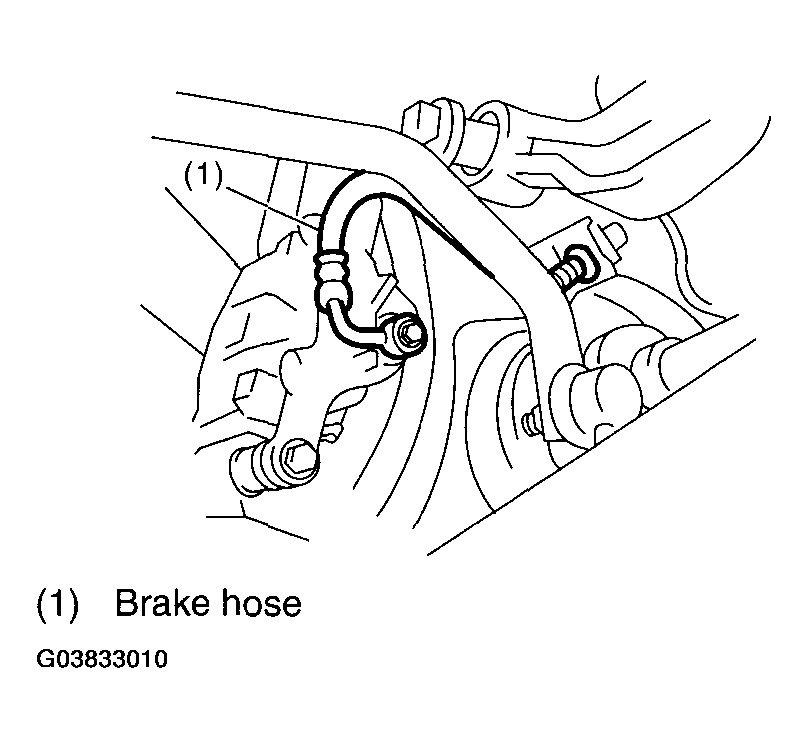

    Fig 1: Removing Union Bolt From Rear Brake Caliper
    G03833010Courtesy of SUBARU OF AMERICA, INC.
  2. Separate the brake pipe from brake hose using a flare nut wrench.
  3. Remove the clamp and remove the brake hose.

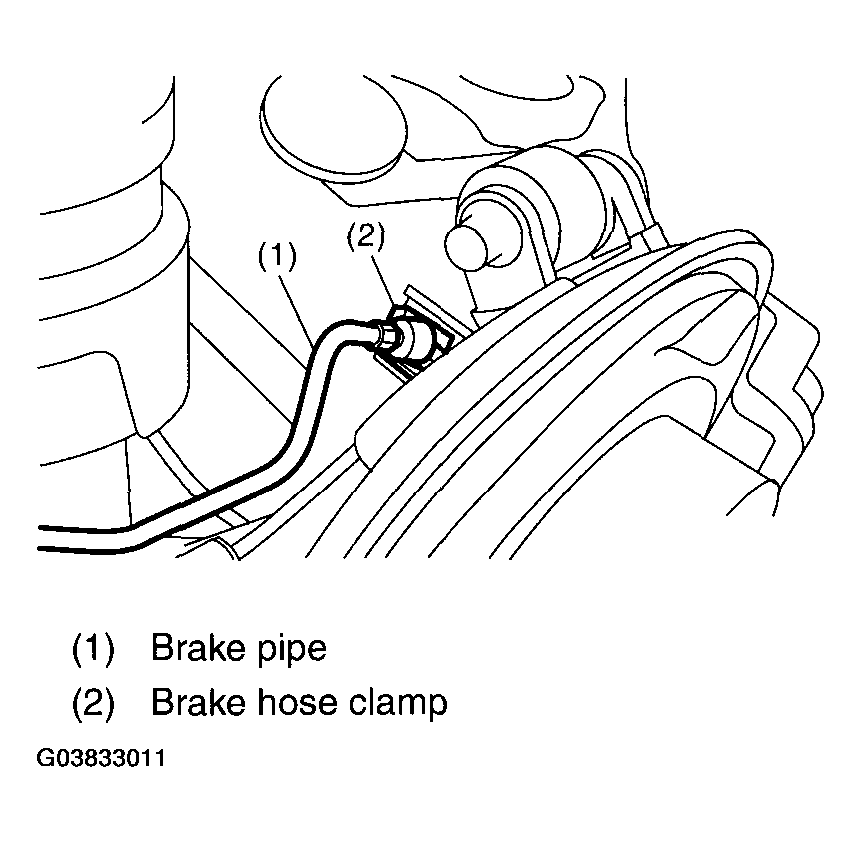

Fig 2: Removing Clamp And Brake Hose (1 Of 2)
G03833011Courtesy of SUBARU OF AMERICA, INC.

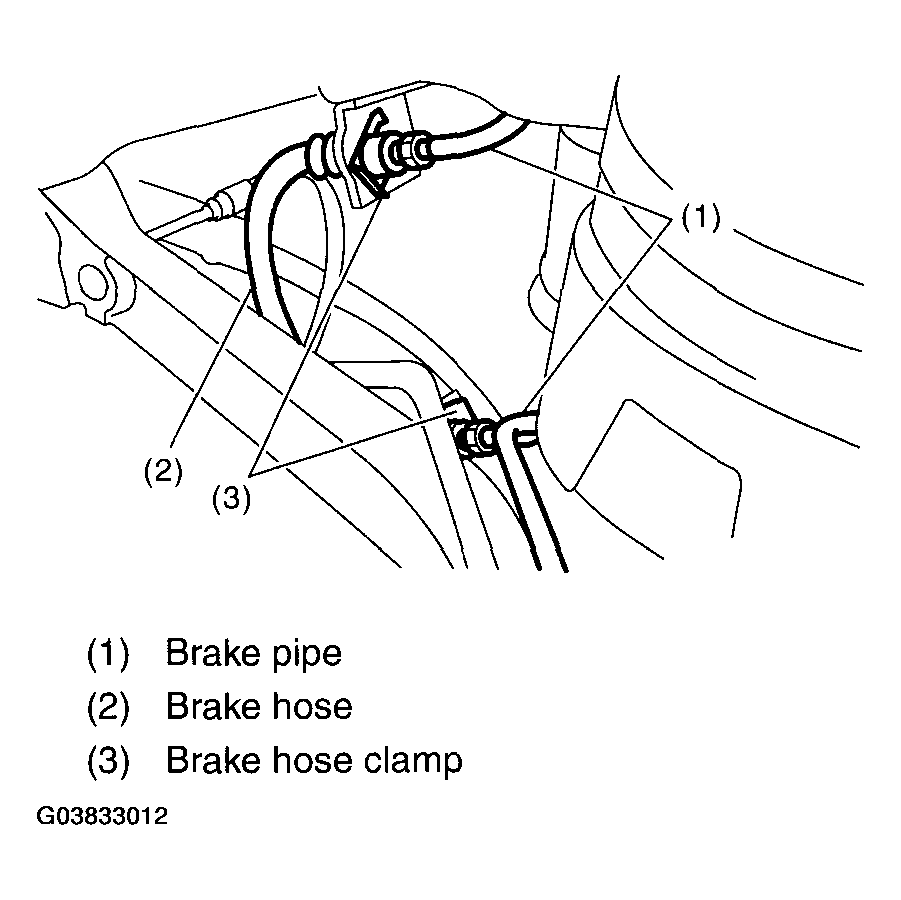

Fig 3: Removing Clamp And Brake Hose (2 Of 2)
G03833012Courtesy of SUBARU OF AMERICA, INC.
