Front Brake Hose

  1. Separate the brake pipe from brake hose using a flare nut wrench.
  2. Remove the clamp, bolt at strut mount, and union bolt.

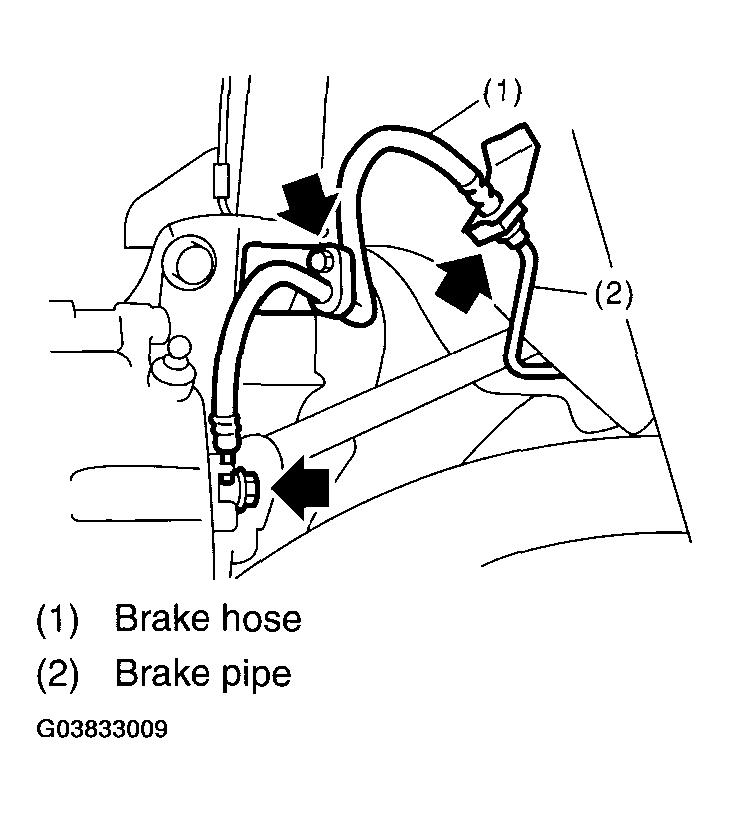

Fig 1: Removing Clamp, Strut Mount And Union Bolt
G03833009Courtesy of SUBARU OF AMERICA, INC.
