Operation Check (With Gauges)
>>
Checking With Gauges
Checking With Gauges
Connect gauges as shown in
Fig 1
. After bleeding air from pressure gauges, proceed to each check.

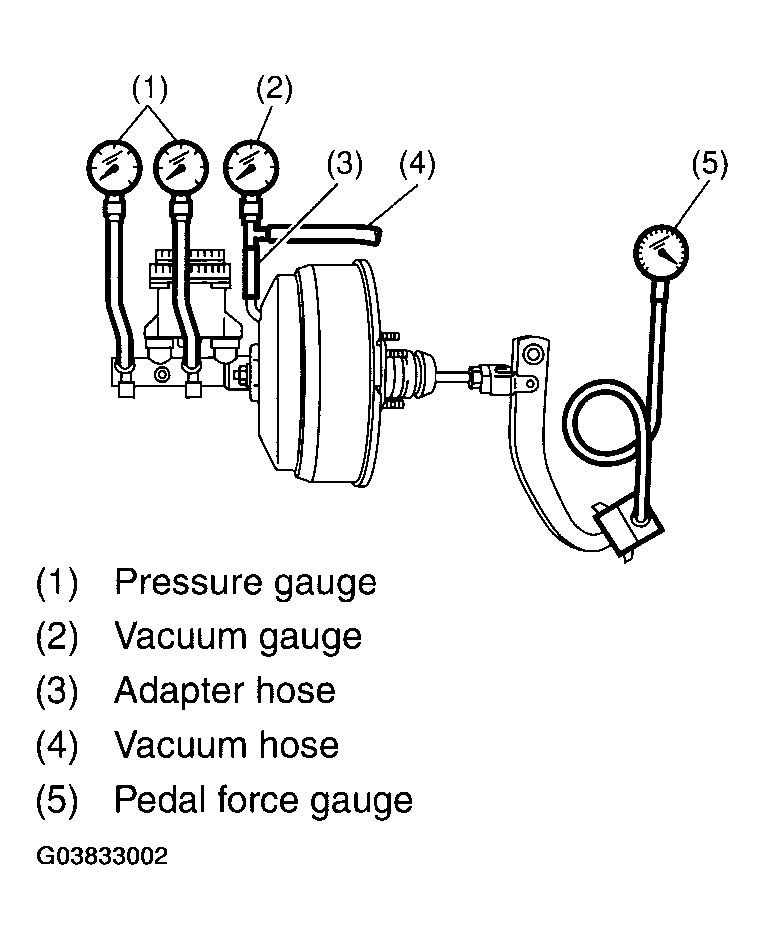

Fig 1: Connecting Various Gauges
Courtesy of SUBARU OF AMERICA, INC.
