Side Sill Spoiler: Removal

Remove the clips (two in the front fender arch, six for side sill spoiler lower area), and remove the side spoiler.

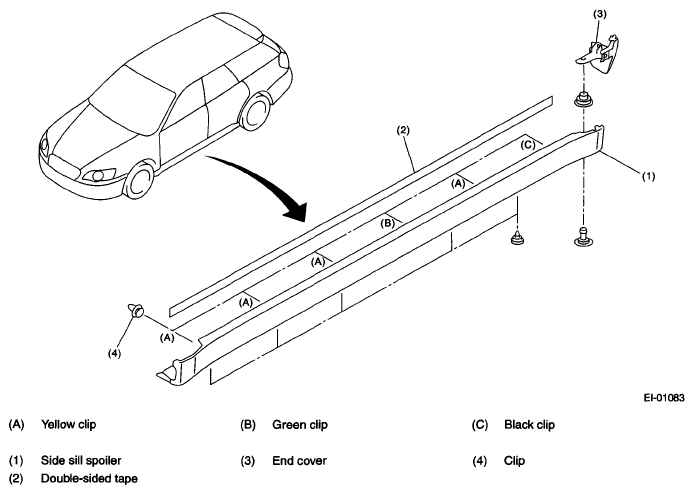

Fig 1: Identifying Side Sill Spoiler Parts Location
G05670084Courtesy of SUBARU OF AMERICA, INC.
NOTE: When peeling the double sided tape, refer to removal procedures for the side protector. < Ref. to REMOVAL , Side Protector. >
