Roof Rail: Removal

  1. Remove the roof trim. < Ref. to REMOVAL , Roof Trim. >
  2. Remove the six nuts.

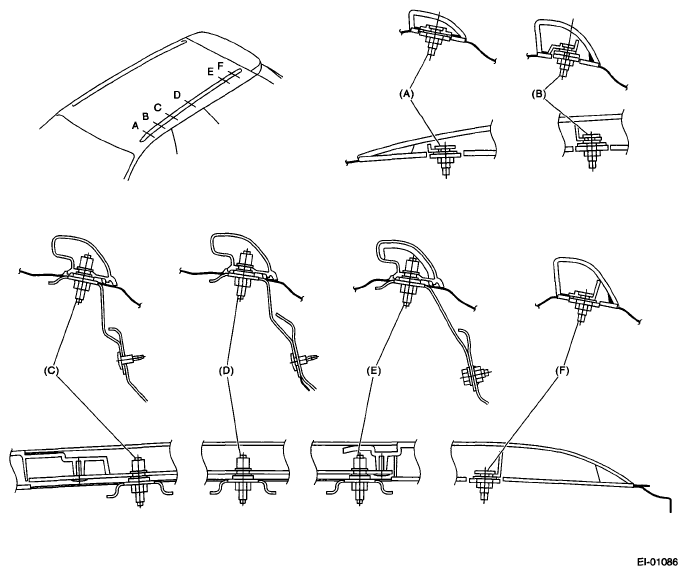

    Fig 1: Identifying Roof Rail
    G05670094Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Perform the removal procedures by referring to above illustration. (OUTBACK model)
