Combination Meter: Disassembly: Notes

CAUTION: Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.

Disengage the claw (E) to remove case (B) from back cover (A).
Disengage claw (F) to remove meter glass (D) and reflector (C) from the inner case.

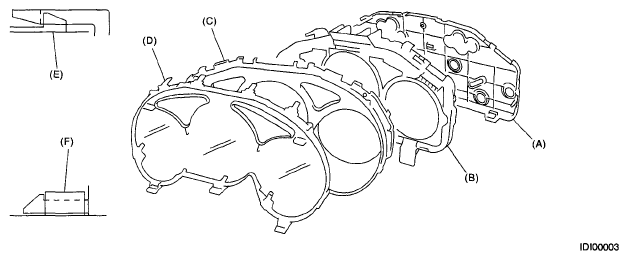

Fig 1: Identifying Claw, Case And Back Cover
Courtesy of SUBARU OF AMERICA, INC.
Pull up claw (A) in portion (B) of combination meter printed circuit (C) with combination pliers. Push out the speedometer (D) and tachometer (E) and water temperature gauge & fuel gauge assembly (F) using the hole (G).
Pull up the claw in the center of the combination meter printed circuit (C), and remove the printed circuit from case (H).

Fig 2: Identifying Claw In Center Of Combination Meter Printed Circuit, Speedometer And Tachometer
