In-Vehicle Sensor (Auto A/C Model)

In-Vehicle Sensor (Auto A/C Model)

INSPECTION

TROUBLE SYMPTOM:
Blower fan speed, outlet port and inlet port do not change after turning the AUTO switch to ON

WIRING DIAGRAM:

Wiring Diagram:

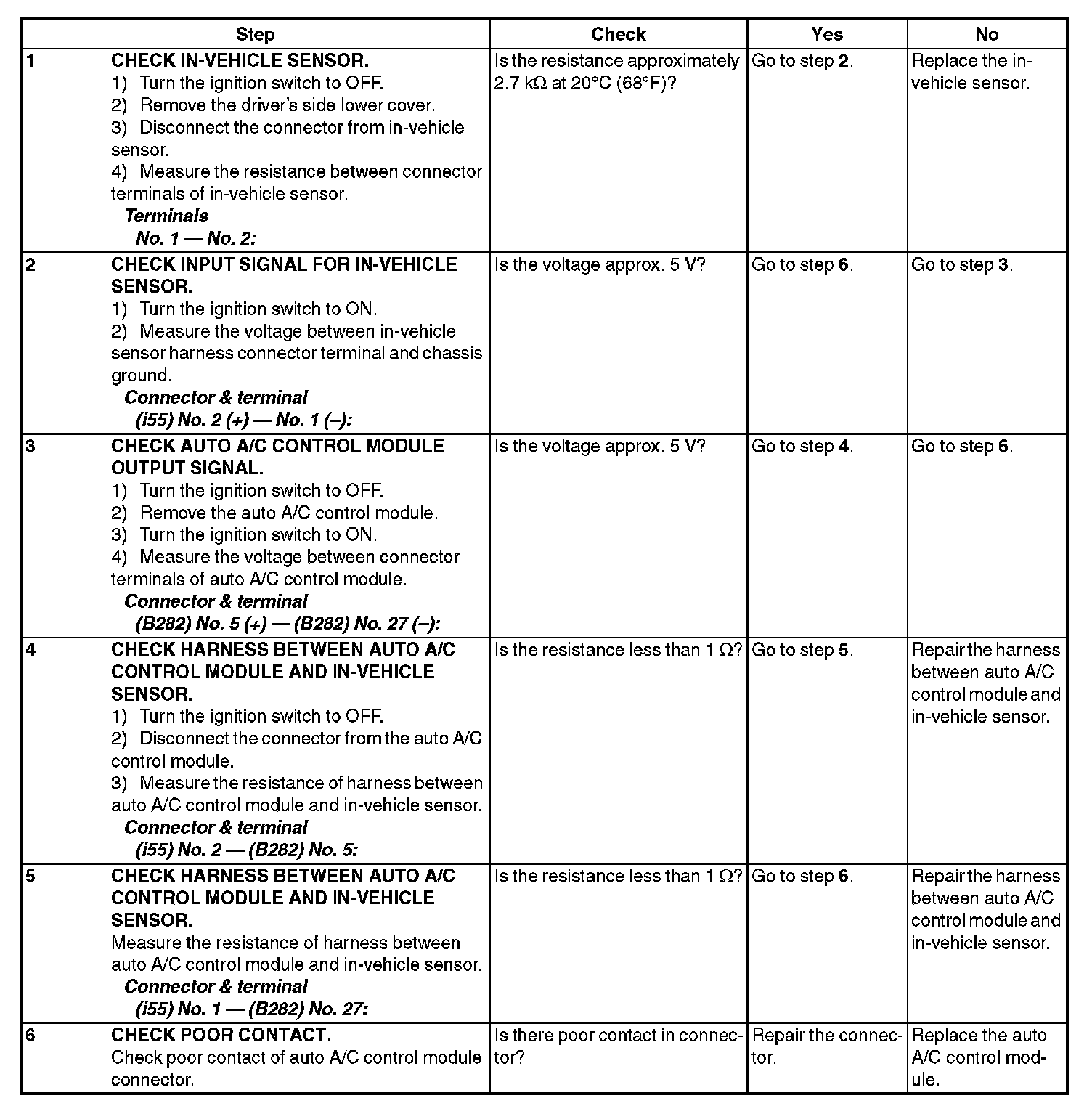

Step 1-6:
