Procedures

G Sensor

ABS WHEEL SPEED SENSOR:

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the console box.
3. Disconnect the connector from G sensor.
4. Remove the G sensor from the body.

CAUTION:
^ Do not drop or bump the G sensor.
^ The G sensor integrated with the bracket. Do not disassemble.





INSTALLATION
Install in the reverse order of removal.

CAUTION: Do not drop or bump the G sensor.

Tightening torque: 7.5 Nm (0. 76 kgf-m, 5.5 ft. lbs.)

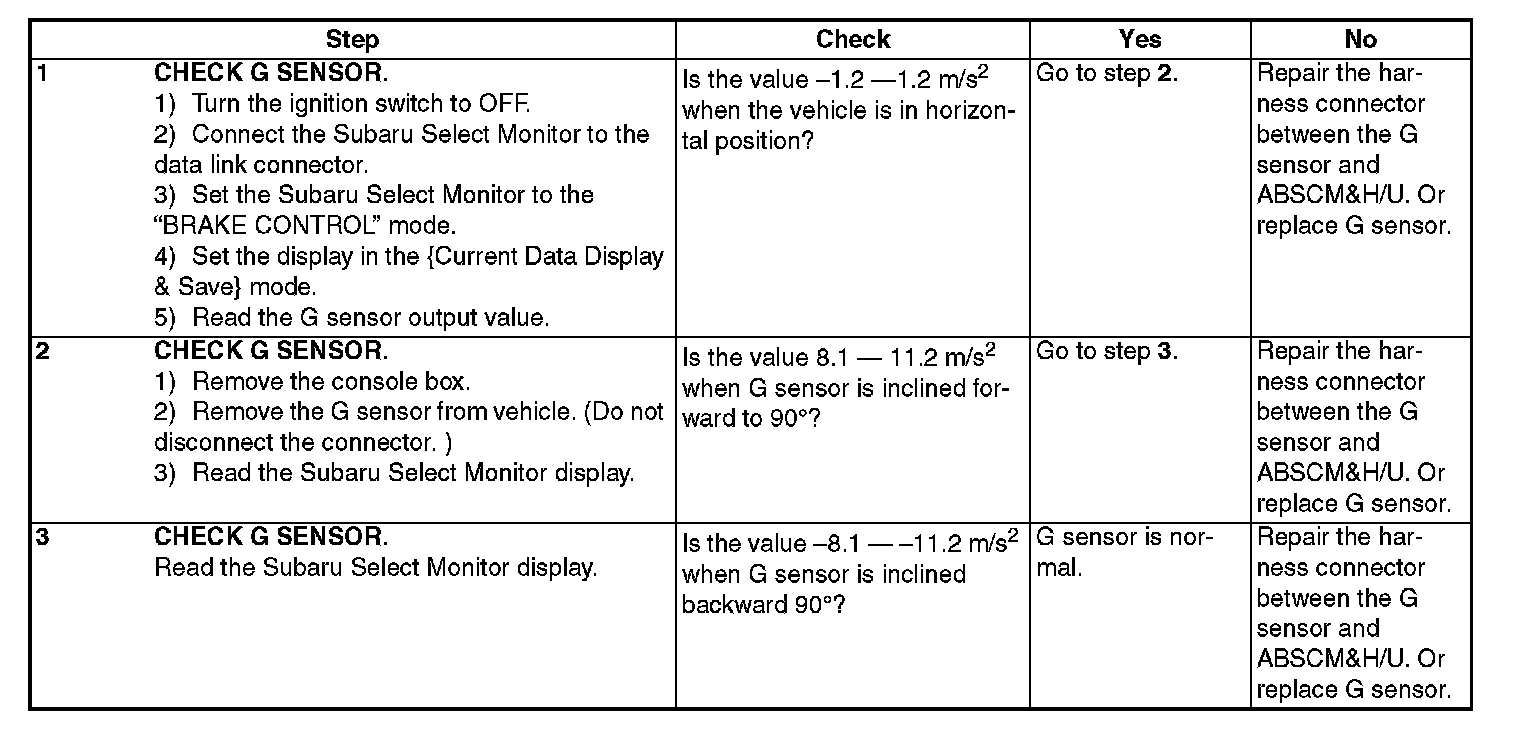

INSPECTION
