Home >> Subaru >> 2007 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0748

P0748

DTC P0748 PRESSURE CONTROL SOLENOID "A" ELECTRICAL

DTC DETECTING CONDITION
Output signal circuit of line pressure linear solenoid is open or shorted.

TROUBLE SYMPTOM
Excessive shift shock

WIRING DIAGRAM:

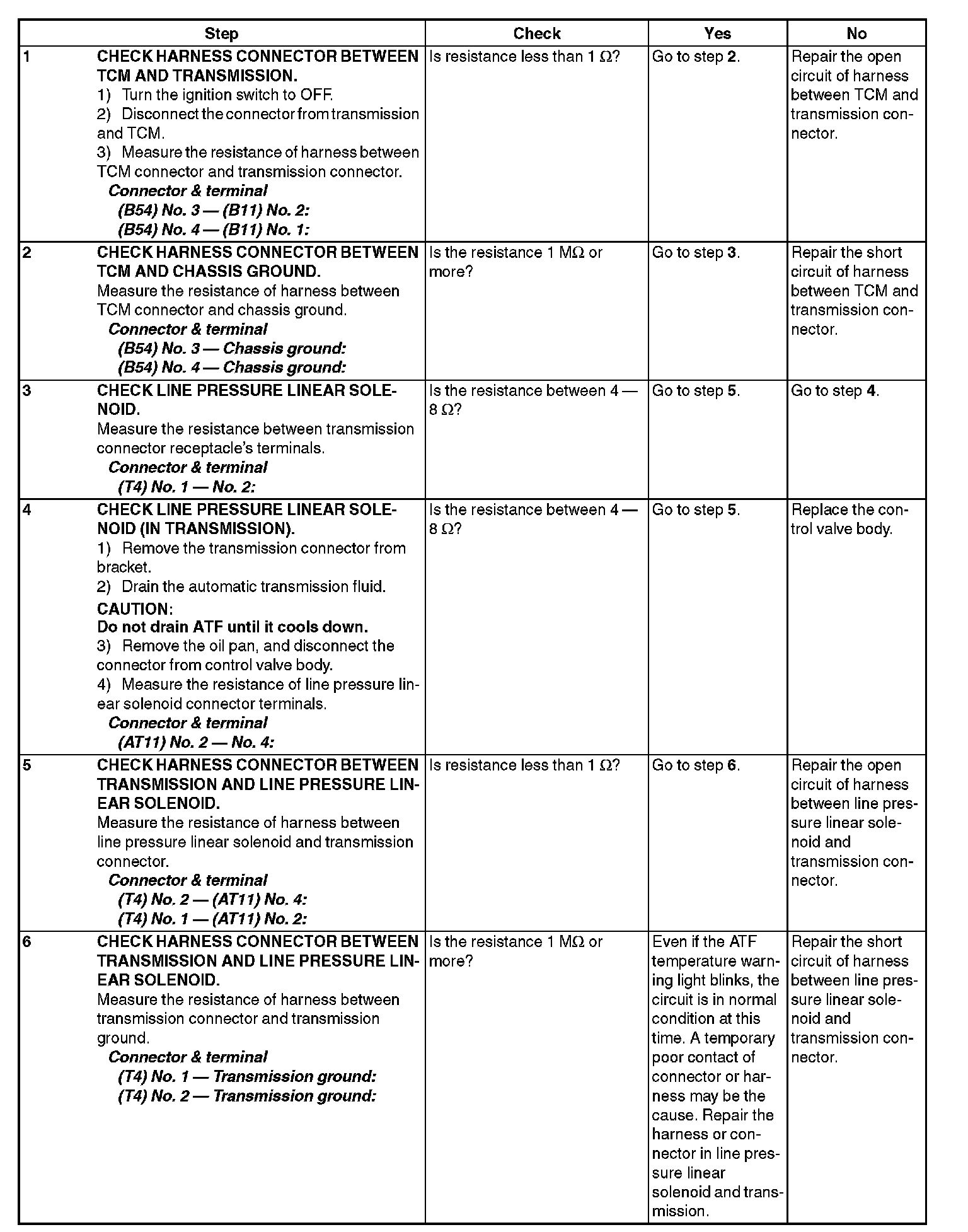

Step 1-6:
