P0724

DTC P0724 BRAKE SWITCH CIRCUIT HIGH

DTC DETECTING CONDITION
Brake switch malfunction, open input signal circuit

TROUBLE SYMPTOM
Gear is not shifted down when driving a down hill.

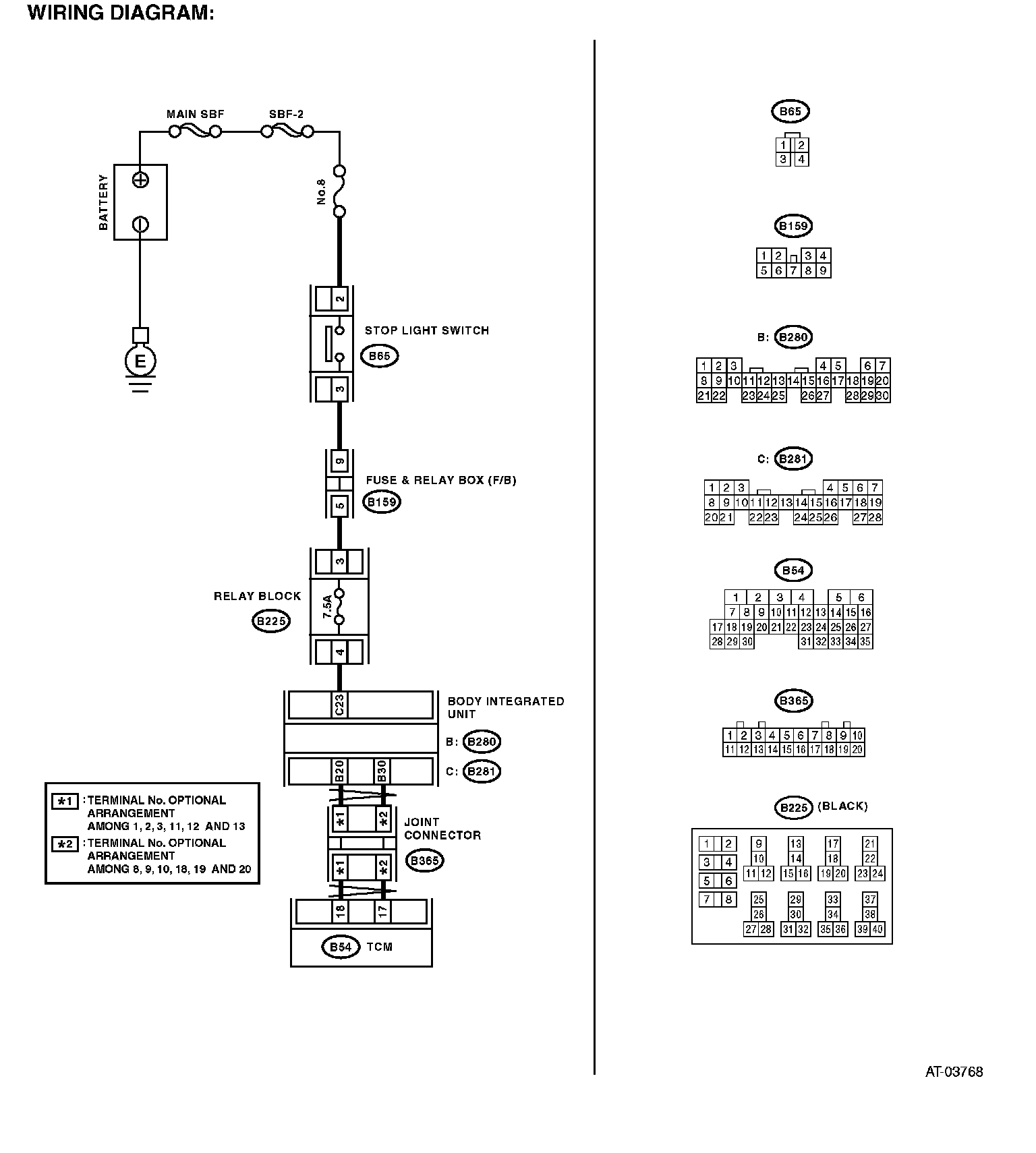

WIRING DIAGRAM:

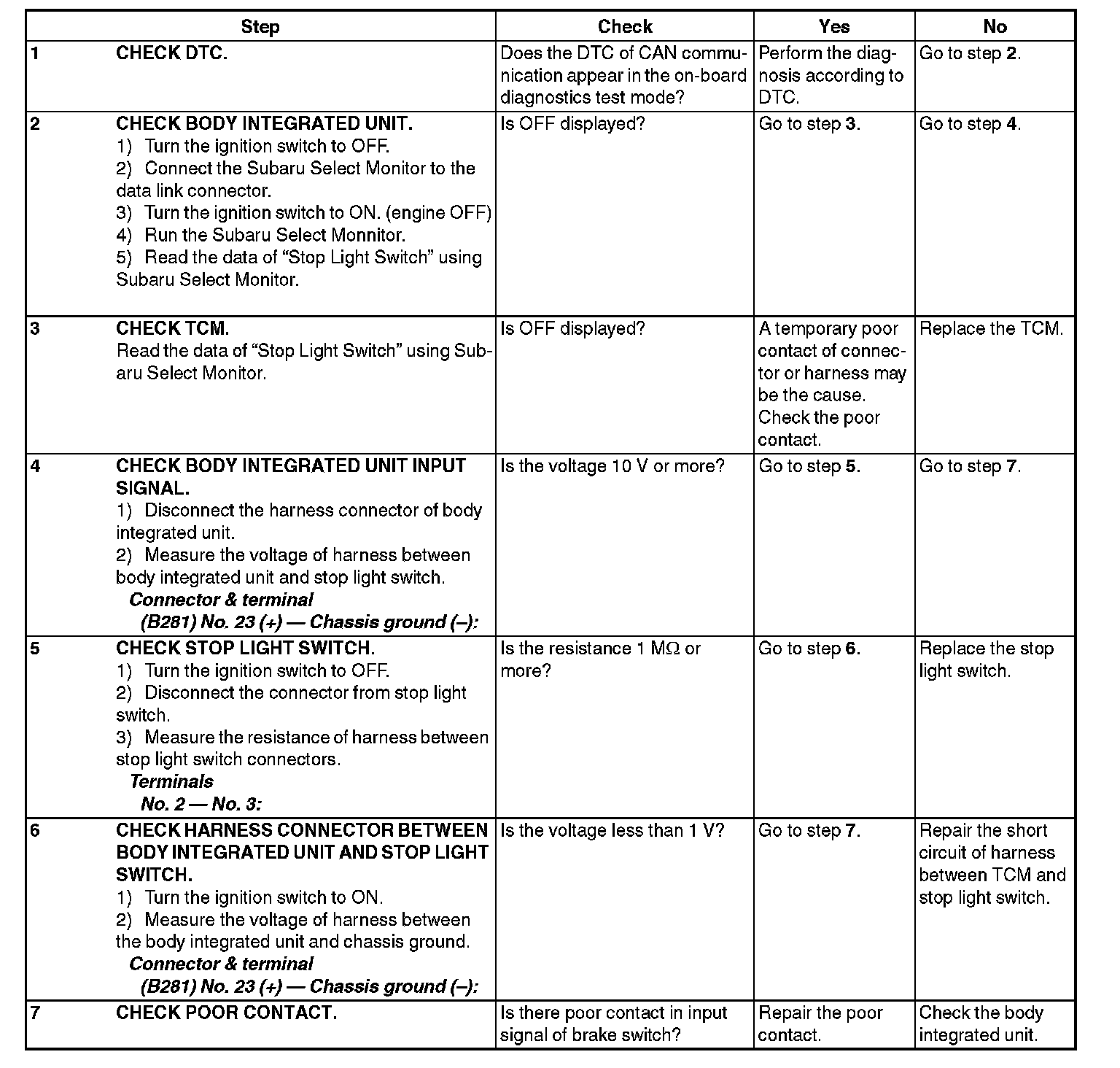

Step 1-7:
