P0720

DTC P0720 OUTPUT SPEED SENSOR CIRCUIT

DTC DETECTING CONDITION
^ The vehicle speed signal is abnormal.
^ The harness connector between TCM and vehicle speed sensor is shorted or open.

TROUBLE SYMPTOM
Driving performance is poor.

WIRING DIAGRAM:

Step 1:

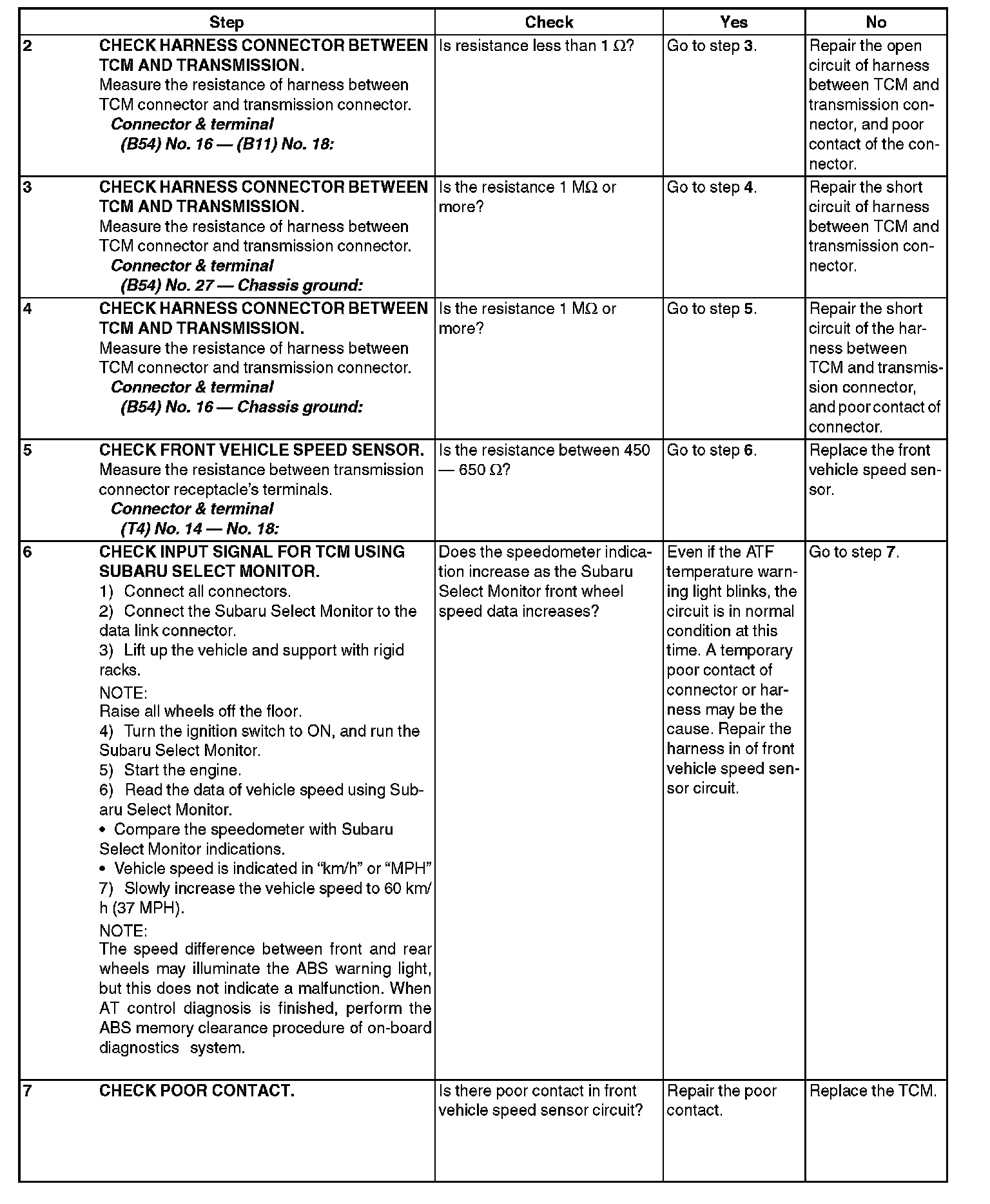

Step 2-7:
